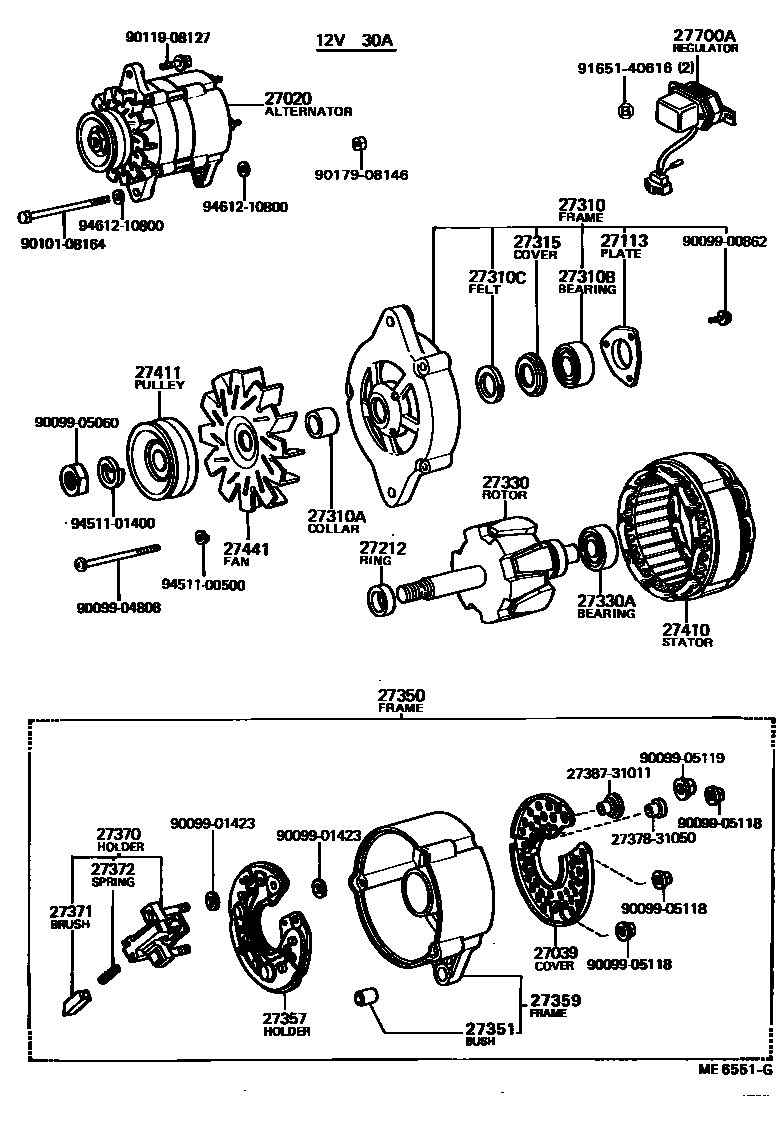

Toyota DYNA — ALTERNATOR

0001 1 0002 1 0003 1 0004 1 0006 1 0008 1 0009 1 0010 1 0011 1

27020ALTERNATOR ASSY

main27020-23022i5R..RU2#,30¥43,000197708-198408

12V 30A

main27020-40065i5R..RU2#,30..GEN197708-198003

12V 40A

sub27020-44100¥60,100

main27020-44100i5R..RU2#,30..GEN¥60,100198003-198408

12V 40A

main27020-46043i2J..JU20197708-197904

24V 15A

sub27020-46070¥74,700

main27020-47033iH..HU30¥55,200197708-198104

12V 35A

main27020-56023iB..BU2#,30..ARL,GEN¥60,600197708-198008

12V 35A

main27020-56032iB..BU20,30..EUR¥82,000197708-198008

24V 20A

main27020-56100iB..BU20,25,30..LHD..5H..WT¥78,400198204-198408

24V 25A,24V 20A

main27020-56140iB,2B,3B..BU2#,3#..ARL,GEN,GHI¥57,200198204-198411

12V 40A,12V 40A

sub27020-56210¥57,300

main27020-57061iB,2B,3B..BU2#,3#..ARL,GEN,GHI¥57,200198008-198204

12V 40A

main27020-57061i3B..BU40¥57,200198204-198408

12V 40A

main27020-57091i3B..BU40..LHD¥85,800198302-198408

24V 20A

sub27020-57081¥81,400

main27020-57091iB..BU20,30..EUR¥85,800198008-198104

24V 20A

sub27020-57081¥81,400

main27020-57091iB..BU20..ST..EUR;B..BU2#,30..LHD..5H..WT¥85,800198104-198204

24V 20A

sub27020-57081¥81,400

main27020-68070i2H..HU40,50198204-198408

12V 40A

main27040-78010i1W..WU40..LHD198304-198408

24V 20A,W/VACUUM PUMP

main27040-78030i1W..WU40,50¥93,200198304-198408

12V 40A,12V 40A,W/VACUUM PUMP

27039COVER, ALTERNATOR REAR END

main27039-11014i5R..RU2#,30197708-198408

12V 30A

sub27039-12030

main27039-18011i5R..RU2#,30..GEN198003-198408

12V 40A

main27039-26020i5R..RU2#,30..GEN197708-198003

12V 40A

main27039-56090i2H..HU40,50198204-198408

12V 40A

27113PLATE, BEARING RETAINER, ALTERNATOR

main27113-10012i5R..RU2#,30197708-198408

12V 30A

main27312-31011i5R..RU2#,30..GEN197708-198003

12V 40A

main27312-56011iH..HU30198008-198104

12V 35A

main27312-56011iB,H,2J..BU2#,30,HU30,JU20197708-198008

12V 35A,24V 15A,20A

main27312-56070iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main27312-56070i3B,2H..BU40,HU40,50198204-198408

12V 40A,24V 20A

main27312-57060iB,2B,3B..BU2#,3#198204-198411

12V 40A,24V 20A

main27312-57060i1W..WU40,50198304-198408

12V 40A

main27312-78010i1W..WU40..LHD198304-198408

24V 20A,NO.1

main27312-78020i1W..WU40..LHD198304-198408

24V 20A,NO.2

subS2731-21500

27212RING, SPACE(FOR ALTERNATOR ROTOR)

main27212-39050i5R..RU2#,30..GEN197708-198408

12V 40A

main27212-56010iB,H,2J..BU2#,30,HU30,JU20197708-198008

12V 35A,24V 15A,20A

sub27333-57060

main27212-56010iH..HU30198008-198104

12V 35A

sub27333-57060

main27333-57060iB,2B,3B..BU2#,3#198204-198411

12V 40A,24V 20A

main27333-57060i1W..WU40,50198304-198408

12V 40A

main27412-54040iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main27412-54040i3B,2H..BU40,HU40,50198204-198408

12V 40A,24V 20A

main90099-19068i5R..RU2#,30¥140197708-198408

12V 30A

27310FRAME ASSY, DRIVE END, ALTERNATOR

main27310-18010i5R..RU2#,30..GEN198003-198408

12V 40A

main27310-22012i5R..RU2#,30197708-198408

12V 30A

main27310-34030i5R..RU2#,30..GEN197708-198003

12V 40A

main27310-46032iH,2J..HU30,JU20197708-198104

12V 35A

main27310-56011iB..BU2#,30197708-198008

12V 35A,24V 20A

main27310-56140iB,2B,3B..BU2#,3#198204-198411

12V 40A,24V 20A

main27310-57061iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main27310-57061i3B..BU40198204-198408

12V 40A,24V 20A

main27310-68010i2H..HU40,50198204-198408

12V 40A

main27310-78010i1W..WU40,50198304-198408

12V 40A

main27310-78020i1W..WU40..LHD¥7,200198304-198408

24V 20A

27310ACOLLAR OR NUT(FOR ALTERNATOR DRIVE END FRAME)

main27314-56010iH..HU30198008-198104

12V 35A

main27314-56010iB,H,2J..BU2#,30,HU30,JU20197708-198008

12V 35A,24V 15A,20A

main27412-31040i5R..RU2#,30..GEN198003-198408

12V 40A

main27412-56040i5R..RU2#,30197708-198408

12V 30A

main27412-57060i1W..WU40,50198304-198408

12V 40A

main27412-57060iB,2B,3B..BU2#,3#198204-198411

12V 40A,24V 20A

main27412-78010i1W..WU40..LHD¥620198304-198408

24V 20A

subS2741-21130¥390

main90099-19075i5R..RU2#,30..GEN197708-198003

12V 40A

main90099-19251iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main90099-19251i3B,2H..BU40,HU40,50198204-198408

12V 40A,24V 20A

27310BBEARING(FOR ALTERNATOR DRIVE END FRAME)

main90099-10012i5R..RU2#,30¥600197708-198408

12V 30A

main90099-10082iB,H,2J..BU2#,30,HU30,JU20¥880197708-198008

12V 35A,24V 15A,20A

sub90099-10137

main90099-10082iH..HU30¥880198008-198104

12V 35A

sub90099-10137

main90099-10109i5R..RU2#,30..GEN197708-198003

12V 40A

main90099-10120i3B,2H..BU40,HU40,50198204-198408

12V 40A,24V 20A

main90099-10120iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main90099-10126i5R..RU2#,30..GEN198003-198408

12V 40A

sub90099-10125

main90099-10137iB,2B,3B..BU2#,3#198204-198411

12V 40A,24V 20A

27310CFELT(FOR ALTERNATOR DRIVE END FRAME)

main27135-78010i1W..WU40..LHD198304-198408

24V 20A

subS2713-31070

main90099-02004i5R..RU2#,30..GEN197708-198003

12V 40A

main90099-02009i5R..RU2#,30¥170197708-198408

12V 30A

main90099-02207iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main90099-02207i3B,2H..BU40,HU40,50198204-198408

12V 40A,24V 20A

main90099-02209i1W..WU40,50¥0198304-198408

12V 40A

main90099-02209iB,2B,3B..BU2#,3#¥0198204-198411

12V 40A,24V 20A

27315COVER, ALTERNATOR FELT, INNER NO.1

main27313-31011i5R..RU2#,30..GEN197708-198003

12V 40A

main27313-39010i5R..RU2#,30197708-198408

12V 30A

main27315-56070iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main27315-56070i3B,2H..BU40,HU40,50198204-198408

12V 40A,24V 20A

main27315-57060i1W..WU40,50198304-198408

12V 40A

main27315-57060iB,2B,3B..BU2#,3#198204-198411

12V 40A,24V 20A

main27315-78010i1W..WU40..LHD198304-198408

24V 20A

subS2731-51170¥80

27330ROTOR ASSY, ALTERNATOR

main27330-22012i5R..RU2#,30197708-198408

12V 30A

main27330-26050i5R..RU2#,30..GEN198003-198408

12V 40A

main27330-33010i5R..RU2#,30..GEN197708-198003

12V 40A

main27330-46031iB,H..BU2#,30,HU30..ARL,GEN197708-198008

12V 35A

main27330-46031iH..HU30198008-198104

12V 35A

main27330-54040iB,2B,3B..BU2#,3#..ARL,GEN,GHI198008-198204

12V 40A

sub27330-54011

main27330-54040i3B,2H..BU40,HU40,50198204-198408

12V 40A

sub27330-54011

main27330-54050iB..BU20,30..EUR198008-198104

24V 20A

main27330-54050i3B..BU40..LHD198302-198408

24V 20A

main27330-54050iB..BU20..ST..EUR;B..BU2#,30..LHD..5H..WT198104-198204

24V 20A

main27330-56010i2J..JU20197708-197904

24V 15A

main27330-56030iB..BU20,30..EUR197708-198008

24V 20A

main27330-56100iB..BU20,25,30..5H..WT198204-198408

24V 20A

main27330-56140iB,2B,3B..BU2#,3#..ARL,GEN,GHI198204-198411

12V 40A

sub27330-54200

main27330-78010i1W..WU40,50198304-198408

12V 40A

main27330-78020i1W..WU40..LHD198304-198408

24V 20A

27330ABEARING(FOR ALTERNATOR ROTOR)

main90099-10103i5R..RU2#,30..GEN197708-197812

12V 40A

main90099-10111i5R..RU2#,30..GEN197812-198408

12V 40A

sub90099-10116

main97110-06201i5R..RU2#,30¥420197708-198408

12V 30A

27350FRAME ASSY, RECTIFIER END

main27350-31090i5R..RU2#,30197708-198408

12V 30A

sub27350-12030

main27350-31101i5R..RU2#,30..GEN197708-198003

12V 40A

main27350-46033iH,2J..HU30,JU20197708-198104

12V 35A,24V 15A

sub27350-56012

main27350-56013iB..BU2#,30197708-198008

12V 35A,24V 20A

main27350-56140iB,2B,3B..BU2#,3#198204-198411

12V 40A,24V 20A

main27350-56140i1W..WU40,50198304-198408

12V 40A

main27350-57061iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main27350-57061i3B..BU40198204-198408

12V 40A,24V 20A

main27350-68070i2H..HU40,50198204-198408

12V 40A

main27350-78010i1W..WU40..LHD¥17,900198304-198408

24V 20A

27351BUSH(FOR ALTERNATOR RECTIFIER END FRAME)

main27351-24020i5R..RU2#,30197708-198408

12V 30A

main27351-38051i5R..RU2#,30..GEN197708-198408

12V 40A

main27351-56013i1W..WU40,50198304-198408

12V 40A

main27351-56013iB,H,2B,3B,2H,2J..BU2#,3#,40,HU30,40,50,JU20197708-198411

12V 35A,40A,24V 15A,20A

27357HOLDER, ALTERNATOR, W/RECTIFIER

main27357-11014i5R..RU2#,30197708-198408

12V 30A

main27357-56011iB,H,2J..BU2#,30,HU30,JU20197708-198008

12V 35A,24V 15A,20A

main27357-56011iH..HU30198008-198104

12V 35A

27359FRAME, ALTERNATOR RECTIFIER END

main27359-13050i5R..RU2#,30..GEN198003-198408

12V 40A

main27359-31090i5R..RU2#,30197708-198408

12V 30A

main27359-36061i5R..RU2#,30..GEN197708-198003

12V 40A

27370HOLDER ASSY, ALTERNATOR BRUSH

main27370-31090i5R..RU2#,30197708-198408

12V 30A

main27370-54010i2H..HU40,50198204-198408

12V 40A

sub27370-54250

main27370-57060iB,2B,3B..BU2#,3#,40198008-198411

12V 40A,24V 20A

main27370-60080iB,H,2J..BU2#,30,HU30,JU20197708-198008

12V 35A,24V 15A,20A

main27370-60080iH..HU30198008-198104

12V 35A

main27370-78010i1W..WU40..LHD¥2,260198304-198408

24V 20A

subS2737-01240¥1,310

27371BRUSH, ALTERNATOR

main27371-31011iB,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30197708-198008

12V 30A,35A,40A,24V 15A,20A

main27371-31011iH,5R..HU30,RU2#,30198008-198408

12V 30A,35A,40A

main27371-56070i1W..WU40198304-198408

12V 40A

sub27371-54412¥0

main27371-56070iB,2B,3B,2H..BU2#,3#,40,HU40,50198008-198411

12V 40A,24V 20A

sub27371-54412¥0

main27373-78010i1W..WU40..LHD¥430198304-198408

24V 20A

subS2737-11150¥260

27372SPRING, ALTERNATOR BRUSH

main27372-31011iB,H,2J,5R..BU2#,30,HU30,JU20,RU2#,30197708-198008

12V 30A,35A,40A,24V 15A,20A

main27372-31011iH,5R..HU30,RU2#,30198008-198408

12V 30A,35A,40A

main27372-56070i1W..WU40¥0198304-198408

12V 40A

main27372-56070iB,2B,3B,2H..BU2#,3#,40,HU40,50¥0198008-198411

12V 40A,24V 20A

main27372-78010i1W..WU40..LHD¥90198304-198408

24V 20A

27410STATOR ASSY, ALTERNATOR

main27410-11014i5R..RU2#,30197708-198408

12V 30A

main27410-15030i5R..RU2#,30..GEN198003-198408

12V 40A

sub27410-38120

main27410-26020i5R..RU2#,30..GEN197708-198003

12V 40A

sub27410-26030

main27410-46031iB,H..BU2#,30,HU30..ARL,GEN197708-198008

12V 35A

main27410-46031iH..HU30198008-198104

12V 35A

main27410-54020iB,2B,3B..BU2#,3#..ARL,GEN,GHI198008-198204

12V 40A

main27410-54020i3B,2H..BU40,HU40,50198204-198408

12V 40A

main27410-54030iB..BU20..ST..EUR;B..BU2#,30..LHD..5H..WT198104-198204

24V 20A

sub27410-57020

main27410-54030iB..BU20,30..EUR198008-198104

24V 20A

sub27410-57020

main27410-54030iB..BU20,25,30..5H..WT198204-198408

24V 20A

sub27410-57020

main27410-54030i3B..BU40..LHD198302-198408

24V 20A

sub27410-57020

main27410-56010i2J..JU20197708-197904

24V 15A

main27410-56030iB..BU20,30..EUR197708-198008

24V 20A

main27410-57060iB,2B,3B..BU2#,3#..ARL,GEN,GHI198204-198411

12V 40A

main27410-78010i1W..WU40,50198304-198408

12V 40A

main27410-78020i1W..WU40..LHD198304-198408

24V 20A

27411PULLEY, ALTERNATOR

main27411-23022i5R..RU2#,30197708-198408

12V 30A

main27411-45010i5R..RU2#,30..GEN197708-198408

12V 40A

main27411-47021iH..HU30197708-198104

12V 35A

main27411-56010i2J..JU20197708-197904

24V 15A

main27411-56020iB..BU2#,30197708-198008

12V 35A,24V 20A

main27411-57060iB,2B,3B..BU2#,3#198204-198411

12V 40A,24V 20A

main27411-57061i3B..BU40198204-198408

12V 40A,24V 20A

main27411-57061iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main27411-68070i2H..HU40,50198204-198408

12V 40A

main27430-78010i1W..WU40,50198304-198408

12V 40A

main27430-78020i1W..WU40..LHD¥4,040198304-198408

24V 20A

subS2743-11350¥2,840

27441FAN, ALTERNATOR

main27441-31090i5R..RU2#,30197708-198408

12V 30A

main27441-34030i5R..RU2#,30..GEN¥0197708-198408

12V 40A

main27441-46031iH..HU30198008-198104

12V 35A

main27441-46031iB,H,2J..BU2#,30,HU30,JU20197708-198008

12V 35A,24V 15A,20A

main27441-54040iB,2B,3B..BU2#,3#198008-198204

12V 40A,24V 20A

main27441-54040i3B,2H..BU40,HU40,50198204-198408

12V 40A,24V 20A

main27441-56090i1W..WU40,50198304-198408

12V 40A

main27441-56090iB,2B,3B..BU2#,3#198204-198411

12V 40A,24V 20A

main27441-78010i1W..WU40..LHD198304-198408

24V 20A

subS2744-11140¥970

27700AREGULATOR ASSY, GENERATOR

main27700-38020i5R..RU20,30;B,H,5R..BU2#,30,HU30,RU25..ARL,GEN¥11,200197708-198008

12V

sub27700-13030¥10,900

main27700-44020i5R..RU20,30;B,H,2B,3B,2H,5R..BU2#,3#,40,HU30,40,50,RU25..ARL,GEN,GHI¥10,200198008-198411

12V

sub27700-44021¥13,200

main27700-46020iB,2J..BU20,30,JU20..EUR¥15,300197708-198008

24V

main27700-57040iB..BU20,30..EUR¥15,400198008-198104

24V

main27700-57040i3B..BU40..LHD¥15,400198302-198408

24V

main27700-57040iB..BU20..ST..EUR;B..BU20,25,30..LHD..5H..WT¥15,400198104-198408

24V

main27700-57060i1W..WU40¥20,600198304-198408

12V

sub27700-64030¥20,600

sub90099-05118

main27700-78010i1W..WU40..LHD¥19,800198304-198408

24V

subS2770-01370¥11,100

2737831050INSULATOR, ALTERNATOR, NO.1

main27378-31050

2738731011INSULATOR, TERMINAL

main27387-31011

9009900862

main90099-00862

9009901423

main90099-01423

9009904808

main90099-04808

9009905060

main90099-05060

9009905118

main90099-05118

9009905119

main90099-05119

9010108164

main90101-08164¥230

9011908127

main90119-08127¥130

9017908146

main90179-08146¥180

9165140616

main91651-40616¥60

9451100500

main94511-00500¥170

9451101400

main94511-01400¥140

9461210800

main94612-10800¥80

37 parts on this diagram · 9 diagrams in section
