Toyota DYNA/TOYOACE — WATER PUMP

0001 1 0002 1 0003 1

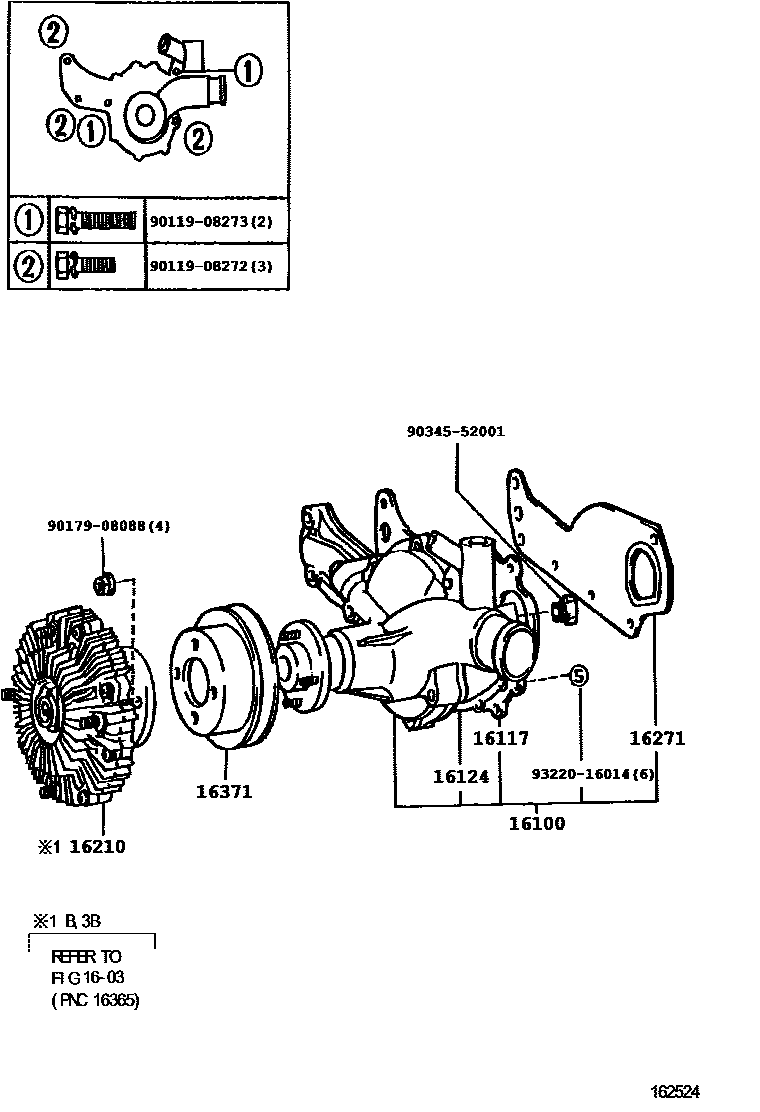

1603

16100PUMP ASSY, ENGINE WATER

main16100-59145i13BT..BU85,90,95¥16,500198808-198910

main16100-59165i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96¥14,200198808-199505

sub16100-59166¥11,200

sub16100-59245

main16100-59175iB,3B..BU60,68,70,83¥14,200198808-199505

sub16100-59265

main16100-79245i27LPG..BU68¥15,700199311-199501

sub16100-79445¥10,700

main16100-79255i27LPG..BU68¥15,700199501-199505

sub16100-79445¥10,700

16117PLATE, WATER PUMP

main16117-56040i13BT..BU85,90,95¥1,650198808-198910

main16117-58010iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96¥1,010198808-199505

16124GASKET, WATER PUMP COVER

main16124-58010iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96¥650198808-199505

main16124-75020i27LPG..BU68¥520199311-199505

16210COUPLING ASSY, FLUID

main16210-56060i13BT..BU85,90,95¥30,700198808-198910

main16210-58030i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96¥19,900198808-199505

main16210-75040i27LPG..BU68¥37,600199311-199505

sub16210-75060¥37,800

16271GASKET, WATER PUMP

main16271-56030iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥930198808-199304

sub16271-56031¥930

main16271-56031iB,11B,14B#,3B..BU6#,7#,8#,9#¥930199304-199505

sub16271-58010¥990

16371PULLEY, FAN

main16371-56050i13BT..BU85,90,95¥5,500198808-198910

main16371-56060i11B,14B..BU61,66,67,78,84,87,88,91,94,96¥5,200198808-199505

main16371-56070iB,3B..BU60,68,70,83¥3,530198808-199505

main16371-58060i14BT..BU88,9#;14B..BU72,73,74¥4,280198910-199505

main16371-75030i27LPG..BU68¥5,700199311-199505

9011908272

main90119-08272¥190

9011908273

main90119-08273¥210

9017908088

main90179-08088¥160

9034552001

main90345-52001¥230

9322016014

main93220-16014¥80

12 parts on this diagram · 3 diagrams in section
