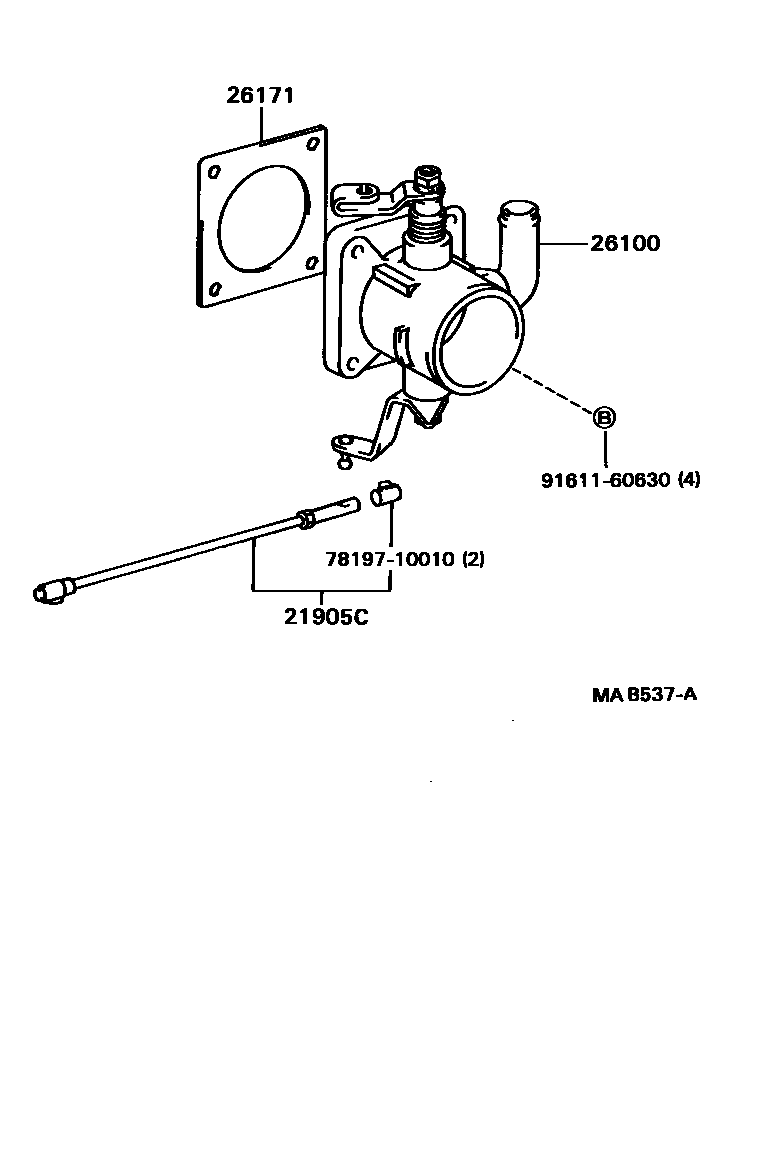

Toyota DYNA/TOYOACE — VENTURI

0001 1 0002 1 0003 1

21905CROD, ACCELERATOR CONNECTING(FOR VENTURI)

main21905-57020iB,3B..BU60,68,70,83¥2,170198808-199505

main21905-58010i11B,14B..BU61,67,72,73,74,78,84,87,88,91,94,96¥1,460198808-199307

sub21905-58070¥1,460

main21905-58020i14B..BU66..20T,275,30T,IV4¥1,460198808-199307

L=112.5

sub21905-58070¥1,460

main21905-58030i14B..BU66..20T,275,30T,IV4¥1,470198808-199307

main21905-58040i14B..BU66..20T,275,30T,IV4¥1,220198808-199307

L=117.5

main21905-58040i14B..BU66..20T,275,30T,IV4¥1,220199309-199505

main21905-58050i14B..BU66..20T,275,30T,IV4¥1,460198808-199307

sub21905-58070¥1,460

main21905-58070i11B,14B..BU61,67,72,73,74,78,84,87,88,9#¥1,460199307-199309

26100VENTURI ASSY

main26100-58061i13BT..BU85,90,95¥45,600198808-198910

main26100-58070iB,3B..BU60,68,70,83¥12,900198808-199505

main26100-58080i14B..BU87..V;14B..BU66,67,87..5F..(175,20T);14B..BU88..(T2,T3,TW1)..5F..20T¥12,900198808-199505

sub26100-58081¥12,600

sub19829-17010¥570

main26100-58100i14B..BU66,67,87,88..4FC;11B,14B..BU61,78,84,91,94,96;14B..BU66,87,88..5F..(275,30T,IV4)¥13,200198808-199008

sub26100-58101¥12,900

main26100-58101i14B..BU88..T4..5F;14B..BU87..DYN..30T;14B..BU66,67,88..4FC;11B,14B..BU61,78,84,9#;14B..BU87..DYN..T3..4FC;14B..BU87..TOY..30T..CBU;14B..BU87..TOY..4FC..20T;14B..BU8¥12,900199008-199505

sub26100-58102¥12,600

sub19829-17010¥570

main26100-58120i14B..BU72,73,74¥13,200198910-199009

sub26100-58121¥12,900

main26100-58121i14B..BU72,73,74..TR¥12,900199009-199505

main26100-58130i14B..BU72..DMP¥12,900199109-199505

26171GASKET, VENTURI

main26171-56050iB,3B..BU60,68,70,83¥140198808-199505

main26171-56060i13BT..BU85,90,95¥300198808-198910

7819710010CLIP, ACCELERATOR JOINT BALL

main78197-10010¥130

9161160630

main91611-60630¥100

5 parts on this diagram · 3 diagrams in section
