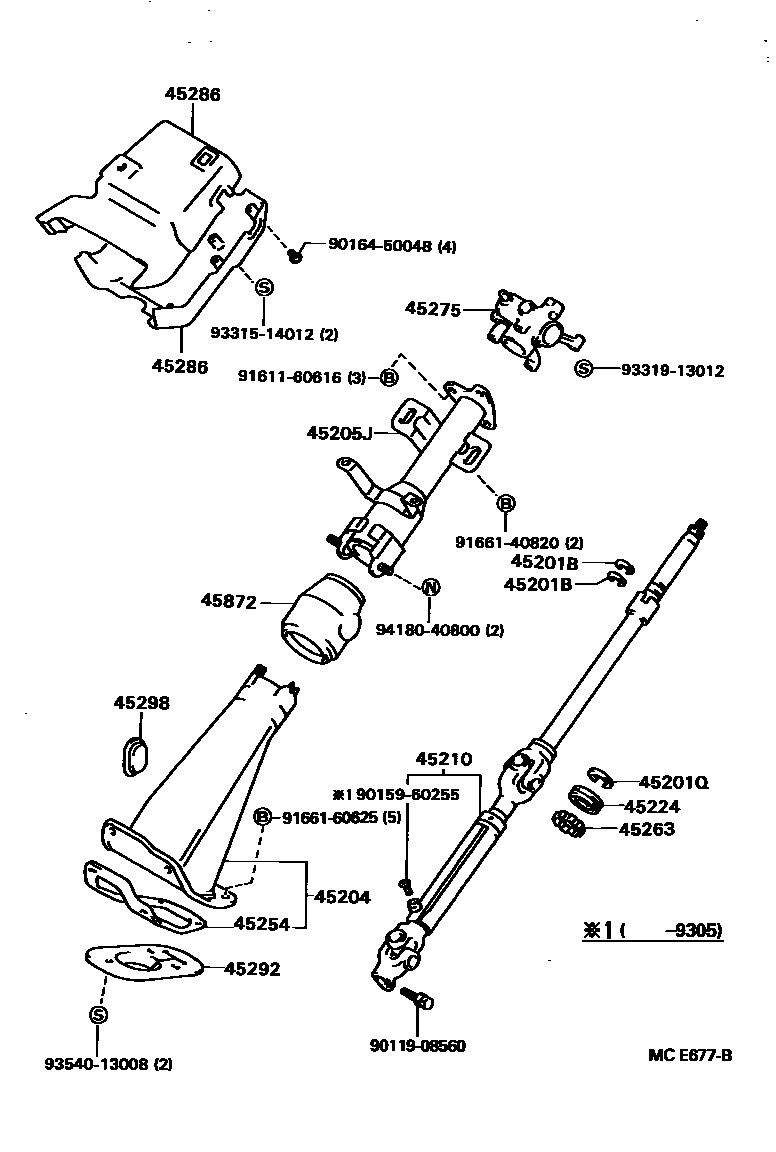

Toyota DYNA/TOYOACE — STEERING COLUMN & SHAFT

0001 1 0002 1TILT STEERING

45201BRING, SHAFT SNAP(FOR STEERING MAIN SHAFT)

main90520-17042iBU6#,7#,8#,9#¥120198808-199505

main90520-17269iBU6#,7#,8#,9#¥120198808-199505

45201QRING(FOR STEERING COLUMN RING)

main96152-00300iBU6#,7#,8#,9#¥80198808-199505

45204TUBE ASSY, STEERING COLUMN, LOWER

main45204-36060iBU96..5F;BU78,88,91,94¥11,800198808-199109

sub45204-36061¥11,800

main45204-36060iBU78,88,9#¥11,800199109-199309

sub45204-36061¥11,800

main45204-36061iBU78,88,9#¥11,800198808-199402

main45204-36062iBU78,88,9#¥11,600199402-199505

main45204-36090iBU66..ST;BU66..275,30T;BU66..T2,T4,TW4;BU66..T3..4FC..WT;BU61,67,72,74,84,87..TR..5F¥11,800198808-199109

sub45204-36091¥11,800

main45204-36090iBU66..ST;BU66..275,30T;BU66..T2,T4,TW4;BU66..T3..4FC..WT;BU61,67,72,74,84,87..TR..5F¥11,800198808-199109

sub45204-36091¥11,800

main45204-36090iBU66..DM2..IV3¥11,800198808-199109

sub45204-36091¥11,800

main45204-36090iBU67..DMP¥11,800198808-199309

sub45204-36091¥11,800

main45204-36090iBU67..T3;BU60,61,66,68,70,72,73,74,83,84,87¥11,800199109-199309

sub45204-36091¥11,800

main45204-36091iBU67..DMP¥11,800198808-199402

main45204-36091iBU66,68..IV3;BU66..TR..CBU;BU72..DMP..IV3;BU61,67,72,74,84,87..TR,V¥11,800198808-199109

main45204-36092iBU67..T3;BU60,61,66,68,70,72,73,74,84,87¥12,600199402-199505

main45204-36140iBU67..T3;BU61,66,68,84,87¥7,500198808-199402

main45204-36141iBU67..DMP¥8,700199402-199505

45205JTUBE SUB-ASSY, STEERING COLUMN, UPPER

main45205-36180iBU67..DMP¥5,800198808-199505

main45205-36180iBU67..T3;BU61,66,68,72,73,74,78,84,85,87,88,9#¥5,800198808-199109

main45205-36190iBU67..DMP¥5,800198808-199505

45210SHAFT ASSY, STEERING MAIN

main45210-36050iBU78,85,88,9#¥16,800198808-199505

main45210-36060iBU6#,70,72,73,74,83,84,87¥16,800198808-199505

45224BLOCK, BEARING(FOR STEERING FLEXIBLE COUPLING)

main45225-26010iBU6#,7#,8#,9#¥2,210198808-199505

45254SHIELD, STEERING COLUMN HOLE

main45254-36070iBU78,85,88,9#¥1,120198808-199505

main45254-36090iBU6#,70,72,73,74,83,84,87¥2,260198808-199505

45263RING, STEERING COLUMN, NO.1

main45263-32010iBU6#,7#,8#,9#¥170198808-199505

45275BRACKET, STEERING COLUMN, UPPER

main45307-36150iBU88..4FC..30T;BU88..(T2,T3)..4FC¥12,800198910-199109

sub45307-36171¥13,300

main45307-36150iBU6#,70,8#,9#¥12,800198808-198910

sub45307-36171¥13,300

main45307-36151iBU88..4FC..30T;BU88..(T2,T3)..4FC¥13,300199109-199305

sub45307-36190¥13,300

main45307-36170iBU66,67,87,88,96..4FC¥12,800198910-199109

sub45307-36171¥13,300

main45307-36171iBU66,67,87,88,96..4FC¥13,300199109-199505

main45307-36190iBU6#,7#,8#,9#..5F¥13,300199109-199505

sub45307-36171¥13,300

45286COVER, STEERING COLUMN

main45286-36770-04iBU60,83..TOY;BU67..TOY..DMP198808-199109

sub45286-36770¥4,060

sub45286-36790¥4,060

main45286-36770-04iBU60,83..TOY;BU67..TOY..DMP198808-199109

sub45286-36770¥4,060

sub45286-36790¥4,060

main45286-36770-06iBU67..DYN..T3;BU61,66,68,84,87..DYN198808-199109

sub45286-36770¥4,060

sub45286-36790¥4,060

main45286-36770-06iBU67..DYN..T3;BU61,66,68,84,87..DYN198808-199109

sub45286-36770¥4,060

sub45286-36790¥4,060

main45286-36770-B0iBU67..DMP199109-199505

sub45286-36770¥4,060

sub45286-36790¥4,060

main45286-36770-B0iBU67..DMP199109-199505

sub45286-36770¥4,060

sub45286-36790¥4,060

main45286-36790-04iBU67..TOY..T3;BU61,66,68,72,74,78,84,85,87,88,9#..TOY198808-199109

sub45286-36790¥4,060

main45286-36790-04iBU67..TOY..DMP;BU60,83..TOY..(T1,T2,T3,T4,TW2,TW4)198808-199109

sub45286-36790¥4,060

main45286-36790-06iBU67..DYN..T3;BU61,66,68,72,73,74,78,84,85,87,88,9#..DYN198808-199109

sub45286-36790¥4,060

main45286-36790-06iBU67..DYN..DMP;BU60,70,83..DYN198808-199109

sub45286-36790¥4,060

main45286-36790-B0iBU67..T3;BU60,61,66,68,7#,8#,9#199109-199505

sub45286-36790¥4,060

main45286-36790-B0iBU67..T3;BU60,61,66,68,7#,8#,9#199109-199505

sub45286-36790¥4,060

main45287-36330-04iBU6#,72,74,78,8#,9#..TOY198808-199109

sub45287-36330¥4,870

main45287-36330-06iBU6#,7#,8#,9#..DYN198808-199109

sub45287-36330¥4,870

main45287-36330-B0iBU6#,7#,8#,9#199109-199505

sub45287-36330¥4,870

45292SEAL, MAIN SHAFT LOWER DUST

main45292-36030iBU73..03S;BU6#,70,72,74,78,8#,9#¥1,080198808-199505

main45292-36050iBU73..06S¥760199005-199505

45298PLUG, STEERING COLUMN COVER

main45298-36020iBU6#,7#,8#,9#¥580198808-199402

45872COVER, STEERING COLUMN TUBE

main45872-36020iBU67..T3;BU60,61,66,68,7#,8#,9#¥460198808-199505

main45872-36020iBU67..T3;BU61,66,68,72,73,74,78,84,85,87,88,9#¥460198808-199109

main45872-36030iBU67..T3;BU60,61,66,68,70,83,84,87..DSL¥1,280198808-199505

9011908560

main90119-08560¥110

9015960255

main90159-60255¥120

9016450048

main90164-50048¥110

9161160616

main91611-60616¥110

9166140820

main91661-40820¥130

9166160625

main91661-60625¥130

9331514012

main93315-14012¥70

9331913012

main93319-13012¥130

9354013008

main93540-13008¥160

9418040800

main94180-40800¥150

23 parts on this diagram · 2 diagrams in section
