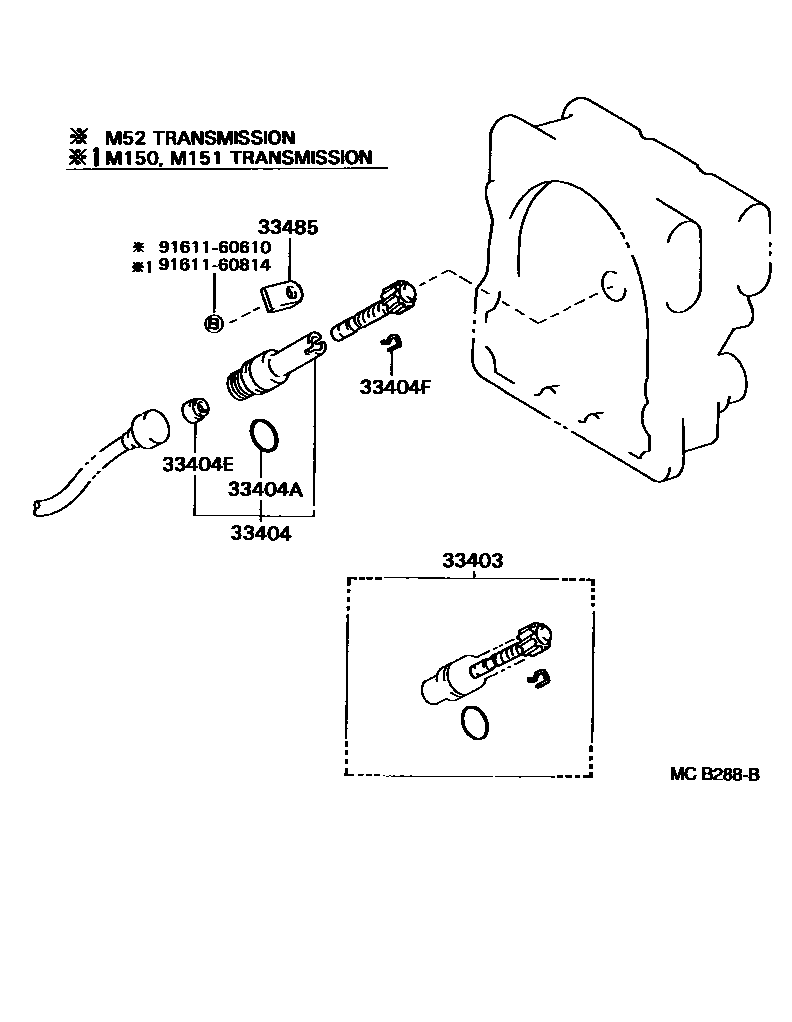

Toyota DYNA/TOYOACE — SPEEDOMETER DRIVEN GEAR (MTM)

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

main33482-29045iBU66..IV4¥2,160198808-199505

main33482-39205iBU60..TOY..T1;BU60..DYN..T1..IV3;BU60,61,66,70..(HRF,SRF,T3,TW1)..5F..ST¥1,270198808-199505

main33482-39215iBU67..T3;BU72..T4¥1,270198808-199505

main33482-39225iBU94..T3..20T¥1,270198808-199505

main33482-39225iBU87..V;BU68,87..5F..20T..DSL;BU66..TR..5F..WT..(175,20T)¥1,270199210-199505

main33482-39225iBU88..T2..5F..IV3¥1,270198910-199505

main33482-39235iBU66..DM1;BU66..30T..IV3;BU87..5F..(275,30T);BU88,94..(T2,T3,TW1)..5F..20T;BU60,61,73,74..WT..(175,20T,IV4);BU66..(DM3,T3)..WT..(20T,30T)..CBU¥1,270198808-199505

main33482-39235iBU66..DM1;BU66..30T..IV3;BU87..5F..(275,30T);BU88,94..(T2,T3,TW1)..5F..20T;BU60,61,73,74..WT..(175,20T,IV4);BU66..(DM3,T3)..WT..(20T,30T)..CBU¥1,270198808-199505

main33482-39235iBU66,87..T3..5F..WT..20T¥1,270198808-199505

main33482-39235iBU68..DSL¥1,270198910-199505

main33482-39235iBU68¥1,270199210-199309

main33482-39245iBU88..20T..TD¥1,270198910-199505

main33482-39245iBU88..20T..TD¥1,270198910-199505

main33482-39245iBU88..20T..TD¥1,270198910-199505

main33482-39245iBU66..T3..5F..WT..20T¥1,270198808-199505

main33482-39245iBU74¥1,270198910-199109

main33482-39245iBU91..T3..DSL¥1,270198808-199109

main33482-39245iBU66..DM2;BU66..275;BU72..DMP;BU88..T4..5F..20T;BU78,83,84,94..(T2,T4)..20T;BU72,85,88,94..T3..(275,30T)¥1,270198808-199505

main33482-39245iBU68¥1,270198910-199505

main33482-39245iBU74..20T;BU72..T3..20T..IV3¥1,270199109-199505

main33482-39245iBU66..30T..IV3¥1,270199008-199505

main33482-39245iBU66..30T..IV3¥1,270199008-199505

main33482-39255iBU66..DM5;BU67..DMP..5F;BU88..T4..5F..30T;BU78,90,91,95,96..5F..(30T,35T)¥1,270198808-199505

main33482-39255iBU88..(T3,TW1)..5F..20T..DSL¥1,270198910-199505

main33482-39255iBU68..DSL¥1,270198910-199505

main33482-39255iBU68..DSL¥1,270198910-199505

main33482-39255iBU66..DM2¥1,270198808-199505

main33482-39255iBU66..DM2¥1,270198808-199505

main33482-39265iBU87..5F..(275,30T)..IV3¥2,010198811-199505

main33482-39265iBU91,96..T3..5F..DSL¥2,010198808-199505

main33482-39275iBU96..5F..TD..IV3¥1,270198910-199505

main33482-39365iBU96..5F..DSL¥1,730198811-199505

main33482-39365iBU68..LPG¥1,730199311-199505

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

main33404-35010iBU66..IV4¥1,190198808-199505

main33404-36020iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F¥1,150198808-199505

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90301-18018iBU6#,7#,8#,9#..5F¥200198808-199505

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90310-09001iBU72..T4;BU6#,70,78,8#,9#..5F¥160198808-199505

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBU60..TOY..T1;BU60..DYN..T1..IV3;BU61,66,67,68,7#,8#,9#..5F;BU60..T2,T3,T4,TW1,TW2,TW4¥90198808-199505

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

main33485-30020iBU66..5F..(CBU,IV3);BU60,61,67,68,7#,8#,9#..5F¥160198808-199505

main33485-36010iBU66..IV4¥230198808-199505

9161160610

main91611-60610¥120

9161160814

main91611-60814¥100

8 parts on this diagram · 1 diagram in section
