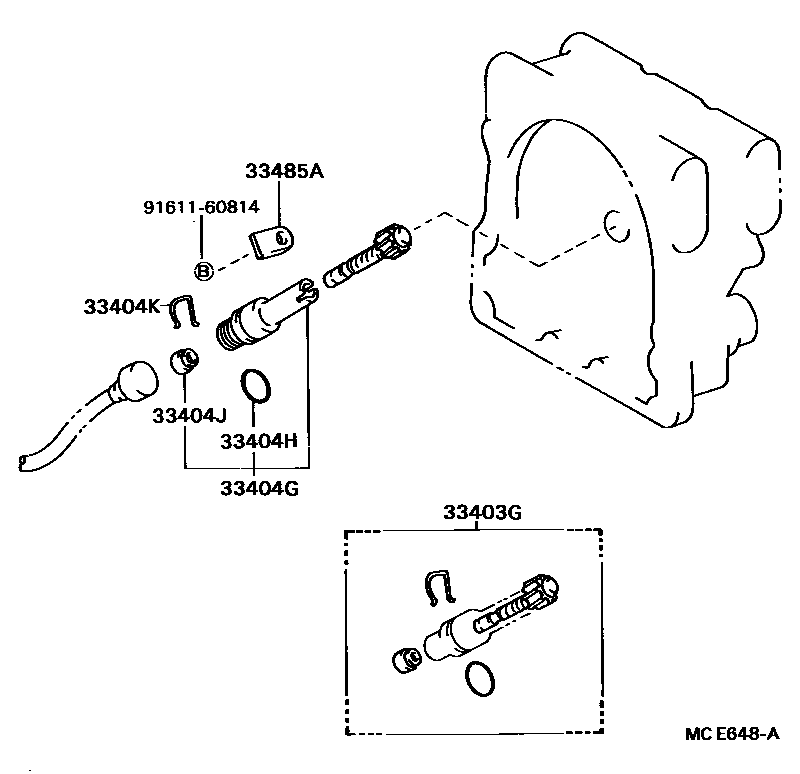

Toyota DYNA/TOYOACE — SPEEDOMETER DRIVEN GEAR (ATM)

33403GGEAR SUB-ASSY, SPEEDOMETER DRIVEN (ATM)

main33482-39156iBU66,87..4FC..WT..20T¥2,010198808-199505

main33482-39166iBU87..4FC..275;BU67,88..4FC..20T¥2,010198808-199505

main33482-39176iBU66..4FC..ST¥2,010198808-199505

main33482-39186iBU66..4FC..ST¥2,010198808-199505

main33482-39285iBU96..4FC..DSL¥2,020198808-199505

main33482-39335iBU96..4FC..TD;BU88..4FC..30T¥2,190198808-199505

main33482-39345iBU66..4FC..ST¥2,170198808-199505

33404GSLEEVE SUB-ASSY, SPEEDOMETER SHAFT (ATM)

main33404-36010iBU66,67,87,88,96..4FC¥1,840198808-199505

sub33404-37010¥1,840

33404HRING, O (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90301-18004iBU66,67,87,88,96..4FC¥180198808-199505

33404JSEAL, OIL (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90310-10001iBU66,67,87,88,96..4FC¥160198808-199505

33404KCLIP (FOR ATM SPEEDOMETER SHAFT SLEEVE)

main90468-12005iBU66,67,87,88,96..4FC¥90198808-199505

33485APLATE, SPEEDOMETER SLEEVE LOCK (ATM)

main33485-30020iBU66,67,87,88,96..4FC¥160198808-199505

9161160814

main91611-60814¥100

7 parts on this diagram · 1 diagram in section
