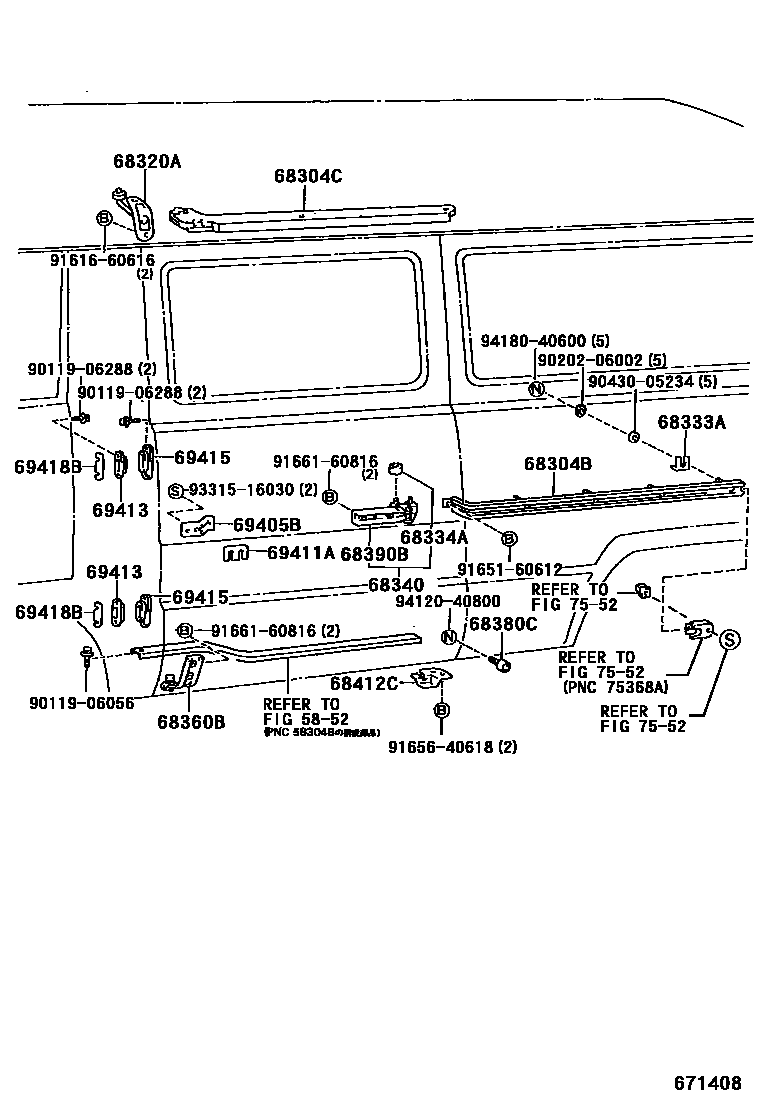

Toyota DYNA/TOYOACE — SLIDE ROLLER & RAIL

5852

68304BRAIL SUB-ASSY, SLIDE DOOR, CENTER LH

main68304-92601iBU70¥10,600198808-199505

68304CBRACKET SUB-ASSY, SLIDE DOOR UPPER RAIL, LH

main68304-95A00iBU70¥8,100198808-199505

68320AROLLER ASSY, SLIDE DOOR, UPPER, LH

main68320-95A01iBU70¥4,210198808-199505

68333ASPACER, SLIDE DOOR CENTER RAIL

main68333-95A00iBU70¥350198808-199505

68334AROLLER, FRONT SLIDE DOOR CENTER GUIDE

main68334-95700iBU70¥380198808-199505

68340ROLLER ASSY, SLIDE, LH

main68340-92601iBU70¥8,200198808-199505

sub68390-92601¥6,700

sub68334-95700¥380

68360BROLLER ASSY, SLIDE DOOR, LOWER LH

main68360-92606iBU70¥12,000198808-199505

68380CBUMPER, HOOD, REAR

main53382-20020iBU70¥230198902-199505

main53382-90A00iBU70¥310198808-198902

sub53382-90K01¥460

68390BHINGE ASSY, SLIDE, LH

main68390-92601iBU70¥6,700198808-199505

68412CGUARD, SLIDE DOOR LOWER RAIL, REAR LH

main68412-95A00iBU70¥440198808-199505

69405BSTOP SUB-ASSY, SLIDE DOOR OPEN

main69405-95A00iBU70¥1,170198808-199505

69411ASPACER, SLIDE DOOR OPEN STOP

main69411-95A00iBU70¥370198808-199505

69413STOP, SLIDE DOOR DOWN MALE

main69416-92600iBU70¥510198808-199505

69415STOPPER, SLIDE DOOR DOWN FEMALE

main69415-95A00iBU70¥650198808-199505

69418BSHIM, SLIDE DOOR DOWN STOP MALE

main69418-95700iBU70¥130198808-199505

7552

9011906056

main90119-06056¥130

9011906288

main90119-06288¥120

9020206002

main90202-06002¥110

9043005234

main90430-05234¥180

9161660616

main91616-60616¥90

9165160612

main91651-60612¥90

9165640618

main91656-40618¥120

9166160816

main91661-60816¥130

9331516030

main93315-16030¥180

9412040800

main94120-40800¥90

9418040600

main94180-40600¥90

28 parts on this diagram · 1 diagram in section
