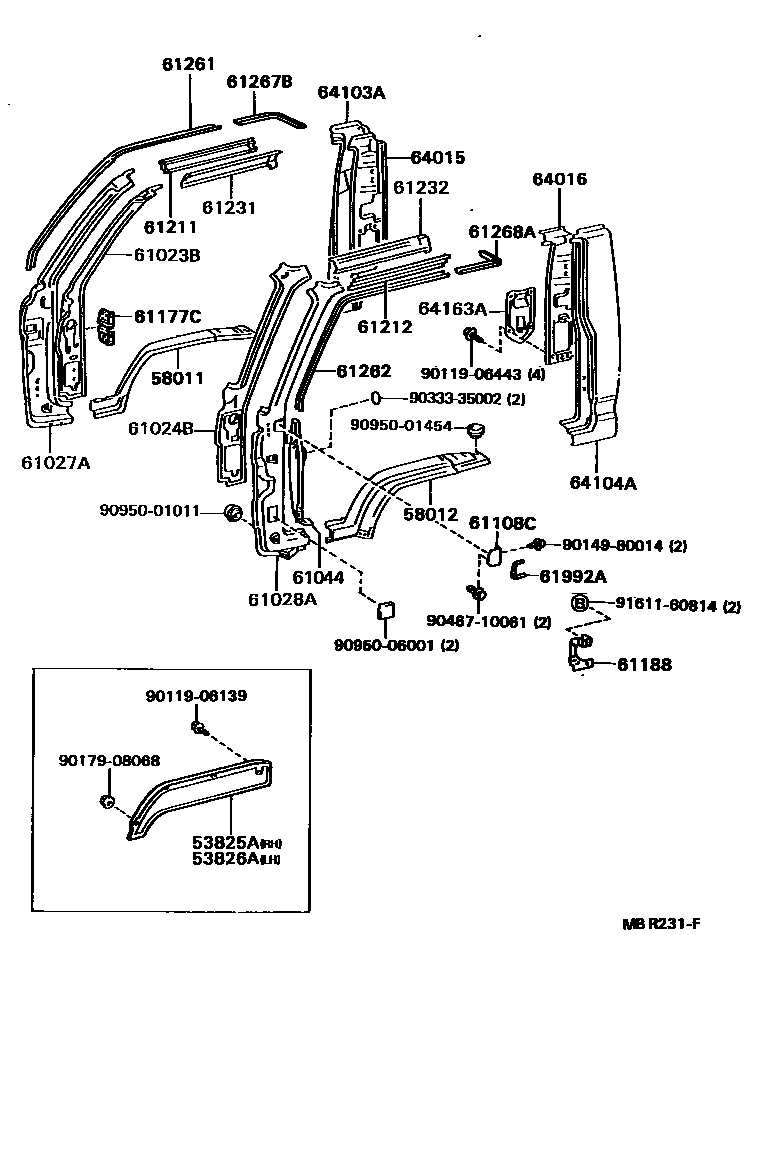

Toyota DYNA/TOYOACE — SIDE MEMBER

0001 1 0002 1 0003 1 0004 1

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-95010iBU96..4FC;BU78,88,90,91,94..T4¥7,400198808-199505

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-95010iBU96..4FC;BU78,88,90,91,94..T4¥7,400198808-199505

58011PANEL SUB-ASSY, FRONT FLOOR SIDE, RH

main58011-95444iBU88..T2,T3;BU90,91,94,96..T3..5F;BU6#,72,73,74,83,84,85,87,95..03S¥17,200198808-199505

sub58011-37010¥17,200

main58011-95448iBU60,66,73,87,88..06S¥17,200198808-199505

sub58011-37030¥17,200

main58011-95449iBU96..4FC;BU78,88,90,91,94..T4¥17,200198808-199505

sub58011-37020¥17,200

58012PANEL SUB-ASSY, FRONT FLOOR SIDE, LH

main58012-95440iBU96..5F..IV3;BU66,67..TR..20T;BU88..(T2,T3)..DSL¥17,200199210-199505

sub58012-37010¥17,200

main58012-95440iBU66..T3..WT..20T¥17,200199109-199210

sub58012-37010¥17,200

main58012-95440iBU88..T2,T3;BU90,91,94,96..T3..5F;BU6#,72,73,74,83,84,85,87,95..03S¥17,200198808-199505

sub58012-37010¥17,200

main58012-95442iBU88..(T2,T3)..DSL;BU60,61,67..T2,T3,T4;BU66,68..(DM1,T2,T3,T4)..20T¥17,200198808-199505

sub58012-95440¥17,200

main58012-95445iBU60,66,73,87,88..06S¥17,200198808-199505

sub58012-37040¥17,200

main58012-95447iBU95,96..5F..IV3¥17,200198808-199505

sub58012-37030¥17,200

main58012-95447iBU78,88..T4¥17,200199210-199505

sub58012-37030¥17,200

main58012-95448iBU78,88..T4¥17,200198808-199505

sub58012-95447¥17,200

61023BPILLAR SUB-ASSY, FRONT BODY, INNER RH

main61023-95400iBU6#,7#,8#,9#¥22,700198808-199505

61024BPILLAR SUB-ASSY, FRONT BODY, INNER LH

main61024-37010iBU88;BU60..T3..WT..IV3;BU66,67,68,72,73,74,78,87,9#..03S..(DSL,TD)¥34,800199109-199505

sub61024-37020¥34,800

main61024-37010iBU66..DM1;BU60,68..(DM1,T3)..WT..IV3¥34,800199109-199210

sub61024-37020¥34,800

main61024-37010iBU66..DM1;BU60,68..(DM1,T3)..WT..IV3¥34,800199109-199210

sub61024-37020¥34,800

main61024-37020iBU67,78,88..TR..03S..DSL;BU66..(DM1,T2,T3,T4)..20T;BU60,68..(DM1,T3)..WT..DSL..IV3¥34,800199109-199505

main61024-37020iBU68..LPG¥34,800199311-199505

main61024-95400iBU6#,7#,8#,9#¥22,700198808-199505

sub61024-95403¥22,700

main61024-95400iBU88..06S¥22,700199210-199505

sub61024-95403¥22,700

main61024-95403iBU60,61,67,78,88..(T2,T3,T4)..DSL;BU66,68..(DM1,T2,T3,T4)..20T..DSL¥22,700198808-199505

61027APILLAR SUB-ASSY, FRONT BODY, OUTER RH

main61027-37010iBU87..03S;BU66,73,88..20T,275,30T,IV4;BU60,61,67,68,70,72,74,78,83,84,9#..DM1,DM4,DM5,HRF,SRF,T1,T2,T3,T4¥41,400198910-199109

main61027-37030iBU6#,7#,8#,9#¥41,300199109-199505

main61027-95400iBU6#,72,74,78,8#,9#..CBU,IV3¥41,400198808-198911

sub61027-37010¥41,400

61028APILLAR SUB-ASSY, FRONT BODY, OUTER LH

main61028-37010iBU66..DM1;BU60,68..(DM1,T3)..WT..IV3¥41,300199109-199210

sub61028-37060¥41,300

main61028-37010iBU66..DM1;BU60,68..(DM1,T3)..WT..IV3¥41,300199109-199210

sub61028-37060¥41,300

main61028-37010iBU66..ST;BU96..4FC..TD;BU87..TR..5F..03S;BU66..DM2,DM3,DM5,T2,T4;BU66,96..5F..(275,30T,35T);BU67,72,74,78,88,91,94..03S¥41,300199109-199301

sub61028-37060¥41,300

main61028-37020iBU60,66,68..(DM1,T3)..WT..20T..IV3¥41,300199109-199301

sub61028-37070¥41,300

main61028-37030iBU6#,7#,8#,9#¥41,300199301-199505

main61028-37050iBU60,61,67,78,88..(T2,T3,T4)..DSL;BU66,68..(DM1,T2,T3,T4)..20T..DSL¥41,300199301-199505

main61028-37060iBU68..LPG¥41,300199301-199505

sub61028-37030¥41,300

main61028-37070iBU68..LPG¥41,300199311-199505

sub61028-37050¥41,300

main61028-37070iBU67,78,88..TR..03S..DSL;BU66..(DM1,T2,T3,T4)..20T;BU60,68..(DM1,T3)..WT..DSL..IV3¥41,300199301-199505

sub61028-37050¥41,300

main61028-95400iBU88..06S¥41,300199210-199301

sub61028-37030¥41,300

main61028-95400iBU6#,7#,8#,9#¥41,300198808-199301

sub61028-37030¥41,300

main61028-95402iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL¥41,300198808-199301

sub61028-37050¥41,300

61044EXTENSION SUB-ASSY, FRONT BODY PILLAR, OUTER LH

main61044-37020iBU67,78,88..TR..03S..DSL;BU66..(DM1,T2,T3,T4)..20T;BU60,68..(DM1,T3)..WT..DSL..IV3¥8,500199309-199505

main61044-95400iBU67,78,88..TR..03S..DSL;BU66..(DM1,T2,T3,T4)..20T;BU60,68..(DM1,T3)..WT..DSL..IV3¥8,500199309-199505

main61044-95400iBU66,68..(DM1,T2,T3,T4)..20T;BU60,61,67,78,88..(T2,T3,T4)..DSL¥8,500198808-199309

61108CCOVER SUB-ASSY, FRONT PILLAR DOOR HINGE, LH

main61108-37010iBU67,78,88..TR..03S..DSL;BU66..(DM1,T2,T3,T4)..20T;BU60,68..(DM1,T3)..WT..DSL..IV3¥1,490199309-199505

main61108-95416iBU96..4FC..TD;BU87,96..TR..5F..03S;BU66..DM2,DM3,DM5,T2,T3,T4;BU67,72,73,74,78,88,91,94..03S¥1,490199109-199505

61177CBRACKET, DOOR CHECK ARM

main61177-37010iBU88..T2,T3;BU88..T4..30T;BU66..30T..IV3;BU72,73,94..(DM4,DM5,T3,T4)..DSL;BU60,61,67,68,74,78,83,84,87,91,96;BU66..(DM2,DM3,DM5,T2,T3,T4)..(20T,275)¥620199002-199505

61188BRACKET, FRONT PILLAR DOOR HINGE COVER, LH

main61188-95400iBU72..DMP;BU67..DM1;BU96..5F..DSL;BU78,88,91,94..03S..DSL¥1,550199109-199505

61211RAIL, ROOF SIDE, OUTER RH

main61211-95403iBU87..03S;BU6#,7#,83,84,85,88,9#..DM1,DM2,DM3,DM4,DM5,HRF,SRF,T1,T2,T3,T4¥6,700198808-199505

main61211-95404iBU66,73,88..TW1¥3,050198808-199505

61212RAIL, ROOF SIDE, OUTER LH

main61212-95403iBU87..03S;BU6#,7#,83,84,85,88,9#..DM1,DM2,DM3,DM4,DM5,HRF,SRF,T1,T2,T3,T4¥6,700198808-199505

main61212-95404iBU60,66,73,87,88..06S¥3,050198808-199505

61231RAIL, ROOF SIDE, INNER RH

main61203-92600iBU88..06S¥3,660198808-199505

main61203-95401iBU60,66,73,87..06S¥4,340198808-199505

main61203-95402iBU96..4FC..TD;BU87..03S..(20T,30T);BU87,96..5F..(275,35T);BU66..DM2,DM3,DM5,T2,T3,T4;BU67,72,73,74,78,88,91,94..03S¥3,940198808-199505

main61231-95405iBU87..03S;BU6#,7#,83,84,85,88,9#..DM1,DM2,DM3,DM4,DM5,HRF,SRF,T1,T2,T3,T4¥3,100198808-199505

61232RAIL, ROOF SIDE, INNER LH

main61204-92601iBU88..06S¥3,660198808-199505

main61204-95402iBU60,66,73,87..06S¥4,340198808-199505

main61204-95403iBU96..CBU;BU96..4FC..TD;BU87..TR..5F..03S;BU66..DM2,DM3,DM5,T2,T3,T4;BU67,72,73,74,78,88,91,94..03S¥3,940198808-199505

main61204-95403iBU96..5F..IV3¥3,940199210-199505

main61232-92600iBU70¥1,200198808-199505

sub61232-37030¥3,130

main61232-95406iBU6#,72,73,74,78,8#,9#..03S¥3,120198808-199505

main61232-95406iBU66..T3..WT..20T¥3,120199109-199505

main61232-95406iBU96..5F..IV3¥3,120199210-199505

61261CHANNEL, ROOF DRIP, RH

main61261-37010iBU70¥4,040199008-199505

main61261-92602iBU70¥4,110198808-199008

sub61261-37010¥4,040

main61261-95407iBU87..03S;BU6#,72,73,74,78,83,84,88,9#..20T,275,30T,35T,IV4¥3,040198808-199505

61262CHANNEL, ROOF DRIP, LH

main61262-37010iBU70¥4,040199008-199505

main61262-92602iBU70¥4,110198808-199008

sub61262-37010¥4,040

main61262-95407iBU6#,72,73,74,78,8#,9#¥3,040198808-199505

61267BCHANNEL, ROOF DRIP SIDE,REAR RH

main61267-95400iBU6#,72,73,74,78,8#,9#..03S¥1,670198808-199505

61268CHANNEL, ROOF DRIP SIDE, REAR LH

main61267-92602iBU88..06S¥2,280198808-199505

main61268-37010iBU70¥5,100199008-199505

main61268-92601iBU70¥5,100198808-199008

sub61268-37010¥5,100

main61268-92602iBU73..06S¥3,670199005-199505

main61268-95401iBU66..IV4¥2,740198808-199505

61268ACHANNEL, ROOF DRIP SIDE, REAR LH

main61268-95400iBU6#,72,73,74,78,8#,9#..03S¥1,670198808-199505

61992APROTECTOR, FRONT PILLAR DOOR HINGE COVER, LH

main61992-37010iBU66..ST;BU96..4FC..TD;BU87..TR..5F..03S;BU66..DM2,DM3,DM5,T2,T4;BU66,96..5F..(275,30T,35T);BU67,72,74,78,88,91,94..03S¥620199203-199505

main61992-95400iBU66..ST;BU96..4FC..TD;BU87..TR..5F..03S;BU66..DM2,DM3,DM5,T2,T4;BU66,96..5F..(275,30T,35T);BU67,72,74,78,88,91,94..03S¥620199109-199203

sub61992-37010¥620

64015PANEL SUB-ASSY, BACK CORNER, INNER RH

main64015-92603iBU70¥22,600198808-199505

main64015-95401iBU6#,72,73,74,83,84,87..03S¥9,100198808-199505

sub64015-95411¥18,900

main64015-95405iBU78,85,88,9#..03S¥9,100198808-199505

main64015-95409iBU96..5F;BU96..4FC..TD;BU78,85,88,90,91,94,95..03S¥19,000198808-199505

main64015-95411iBU87..TR..5F..03S;BU67,72,73,74..03S;BU66..DM2,DM3,DM5,T2,T3,T4¥18,900198808-199505

64016PANEL SUB-ASSY, BACK CORNER, INNER LH

main64016-92603iBU70¥22,600198808-199505

main64016-95401iBU87..5F..275;BU73..DYN..30T;BU73..TOY..03S;BU73..DYN..03S..20T..IV3;BU66..DM2,DM3,DM5,T2,T3,T4;BU67,72,74,87..03S..(20T,30T)¥9,100199109-199505

sub64016-95415¥10,100

main64016-95401iBU6#,72,73,74,83,84,87..03S¥9,100198808-199505

sub64016-95415¥10,100

main64016-95407iBU96..CBU;BU96..4FC..TD;BU78,88,91,94..03S¥9,100199210-199505

main64016-95407iBU78,85,88,9#..03S¥9,100198808-199505

main64016-95407iBU73..DYN..03S..20T..CBU¥9,100199210-199505

main64016-95407iBU73..DYN..03S..20T..CBU¥9,100199210-199505

main64016-95413iBU96..5F..IV3¥19,000199210-199505

main64016-95413iBU96..5F;BU96..4FC..TD;BU78,85,88,90,91,94,95..03S¥19,000198808-199505

main64016-95415iBU67,72,74;BU73..TOY..03S;BU73..DYN..30T;BU87..TR..5F..03S;BU73..DYN..03S..20T..IV3;BU66..DM2,DM3,DM5,T2,T3,T4¥10,100198808-199505

64103APANEL SUB-ASSY, BACK CORNER, OUTER RH

main64103-37010iBU60,66,87..06S..(CBU,IV3)¥46,200199309-199505

sub64103-37011¥46,300

main64103-95401iBU78,85,88,9#..03S¥22,600198808-199505

sub64103-95403¥22,600

main64103-95403iBU6#,72,73,74,83,84,87..03S¥22,600198808-199505

main64103-95412iBU60,66,87..06S..(CBU,IV3)¥46,200198808-199309

sub64103-37080¥46,200

64104APANEL SUB-ASSY, BACK CORNER, OUTER LH

main64104-37010iBU60,66,87..06S..(CBU,IV3)¥46,200199309-199505

sub64104-37011¥46,300

main64104-95401iBU78,85,88,9#..03S¥22,600198808-199505

sub64104-95403¥22,600

main64104-95401iBU73..DYN..03S..20T..CBU¥22,600199210-199505

sub64104-95403¥22,600

main64104-95403iBU6#,72,73,74,83,84,87..03S¥22,600198808-199505

main64104-95414iBU60,66,87..06S..(CBU,IV3)¥46,200198808-199309

sub64104-37080¥46,200

64163ACOVER, BACK CORNER, INNER

main64163-95410-06iBU87..V;BU87..DYN..4FC;BU87..DYN..T3..20T..CBU;BU87..DYN..5F..(275,30T);BU87..DYN..(T2,T4,TW1)..5F;BU6#,7#,83,84,85,88,9#..DYN198808-199109

BROWN,TRIM4#

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-13iBU6#,72,74,78,8#,9#..TOY198808-199109

GRAY,TRIM8#

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-13iBU87..V;BU87..TOY;BU87..DYN..4FC;BU87..DYN..5F..(275,30T);BU87..DYN..(T2,T4,TW1)..5F;BU87..DYN..T3..5F..20T..CBU;BU6#,72,73,74,78,83,84,88,9#199109-199505

GRAY,TRIM1#

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-A0iBU60,66,70,73,87,88..HRF,SRF,TW1,TW2,TW4199109-199505

WHITE,TRIM1#&048

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-H0iBU73,88..TOY..06S199109-199505

TURCUOISE,TRIM1#&705

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-H0iBU73,88..DYN..06S..20T199109-199505

TURCUOISE,TRIM1#

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-J0iBU73,88..DYN..06S..20T199109-199505

BLUE,TRIM1#&8E5

sub64163-95901¥1,410

sub64163-95410¥1,400

main64163-95410-J0iBU73,88..DYN..06S..20T199109-199505

BLUE,TRIM1#

sub64163-95901¥1,410

sub64163-95410¥1,400

9011906139

main90119-06139¥140

9011906443

main90119-06443¥120

9014980014

main90149-80014¥210

9017908068

main90179-08068¥100

9033335002

main90333-35002¥80

9046710061

main90467-10061¥120

9095001011

main90950-01011¥170

9095001454

main90950-01454¥110

9095006001

main90950-06001¥170

9161160814

main91611-60814¥100

37 parts on this diagram · 4 diagrams in section
