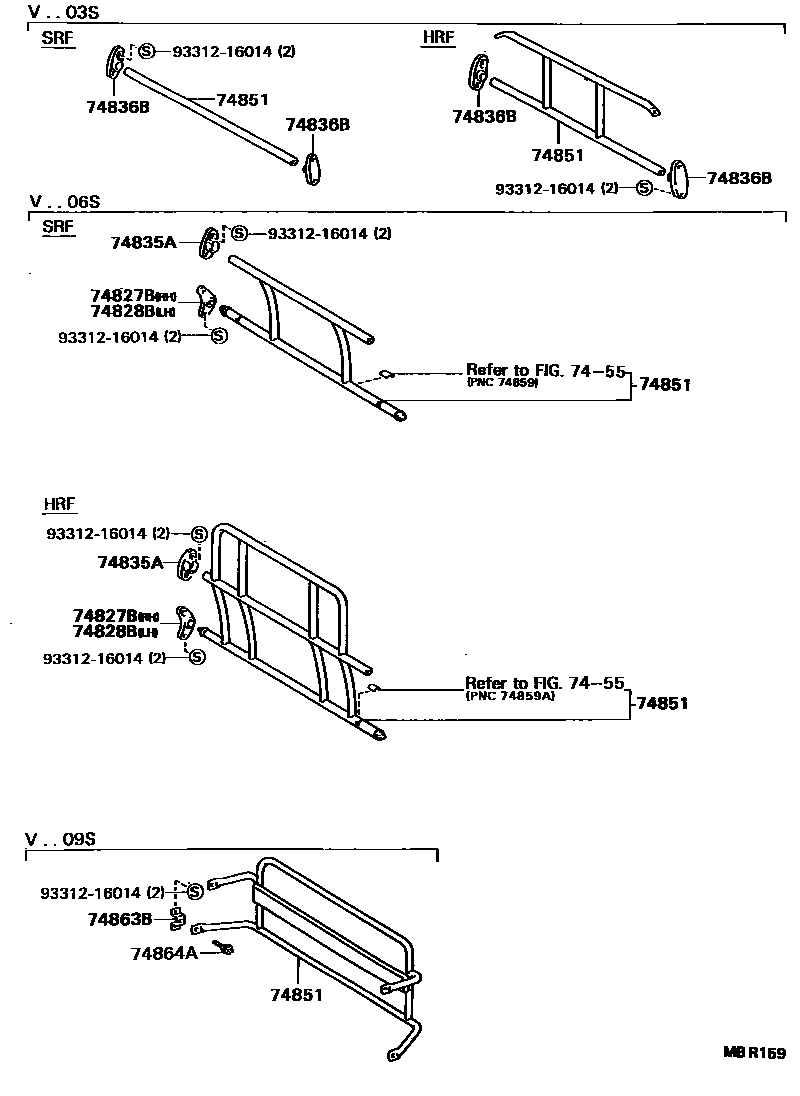

Toyota DYNA/TOYOACE — SEPARATOR & SEPARATOR CURTAIN

0001 1 0002 1

7455

74827BBRACKET, SEPARATOR BAR, RH

main74827-92600-06iBU70..06S198808-199109

BROWN,TRIM4#

sub74827-92600¥390

main74827-92600-C0iBU70..06S199109-199505

BLACK,TRIM1#

sub74827-92600¥390

74828BBRACKET, SEPARATOR BAR, LH

main74828-92600-06iBU70..06S198808-199109

BROWN,TRIM4#

sub74828-92600¥390

main74828-92600-C0iBU70..06S199109-199505

BLACK,TRIM1#

sub74828-92600¥390

74835ABRACKET, SEPARATOR

main74835-92602-06iBU70..06S198808-199109

BROWN,TRIM4#

sub74835-92602¥1,120

main74835-92602-C0iBU70..06S199109-199505

BLACK,TRIM1#

sub74835-92602¥1,120

74836BBRACKET, SEPARATOR BAR, NO.2

main74836-92602-06iBU70..03S198808-199109

BROWN,TRIM4#

sub74836-92602¥1,120

main74836-92602-C0iBU70..03S199109-199505

BLACK,TRIM1#

sub74836-92602¥1,120

74851BAR, SEPARATOR

main74808-92601iBU70..HRF..03S¥14,800198808-199505

main74810-92603iBU70..09S¥71,000198808-199309

main74851-92605iBU70..SRF..03S¥5,200198808-199505

main74860-92126iBU70..HRF..06S¥16,300198808-199505

main74860-92626iBU70..SRF..06S¥16,300198808-199505

74863BROD, SEPARATOR

main74863-92660iBU70..09S¥1,020198808-199309

74864AHANDLE, REAR SEPARATOR

main74864-92660iBU70..09S¥1,020198808-199309

9331216014

main93312-16014¥70

9 parts on this diagram · 2 diagrams in section
