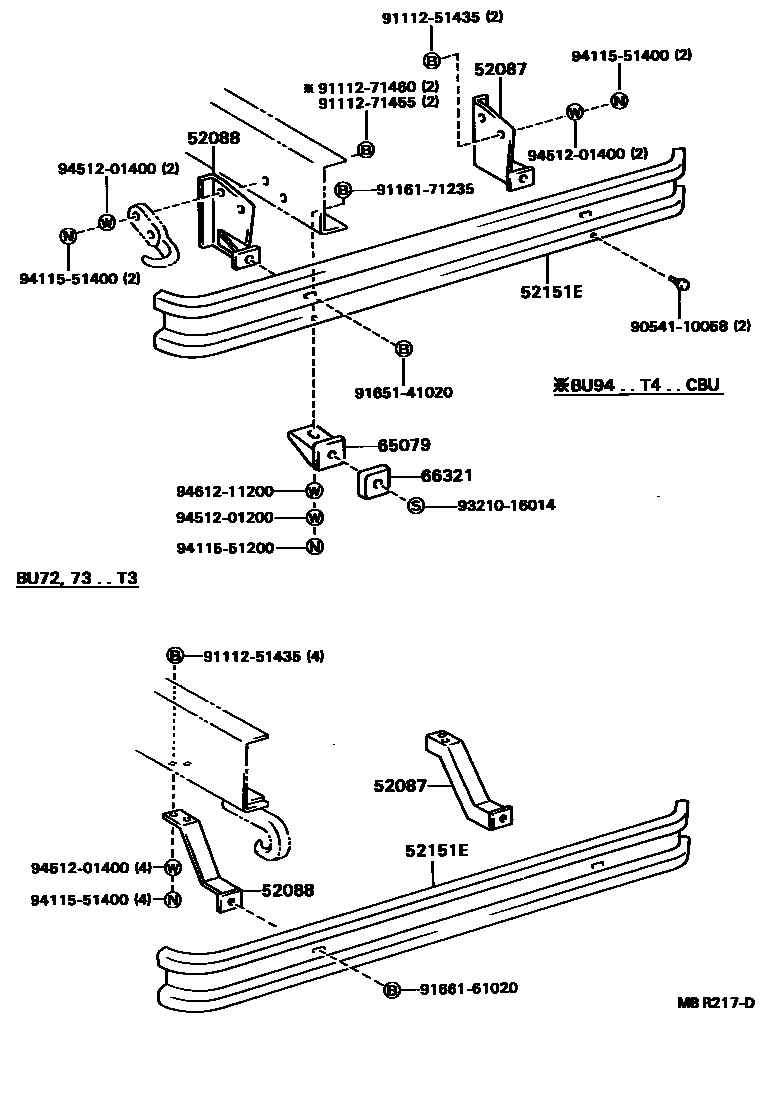

Toyota DYNA/TOYOACE — REAR BUMPER & BUMPER STAY

0001 1 0003 1 0004 1 0005 1 0006 1

52087STAY SUB-ASSY, REAR BUMPER SIDE, RH

main52087-37010iBU73..06S..20T¥4,400199109-199505

main52087-92703iBU72,73..T3¥7,400198910-199505

main52087-92800iBU66..275,30T¥4,210198808-199505

main52087-92804iBU84,87..T2¥2,680198808-199505

main52087-92805iBU85,88,9#..T3,TW1¥3,590198808-198909

main52087-92805iBU88..DYN..275;BU88..TOY..275..IV3;BU85,88,9#..(T3,TW1)..(20T,30T,35T)¥3,590198909-198910

main52087-92805iBU94..T4..CBU;BU88..DYN..275;BU88..TOY..275..IV3;BU88..(T3,TW1)..(20T,30T)¥3,590198910-199404

main52087-92805iBU94,96;BU88..DYN..275;BU88..TOY..275..IV3;BU88,91..(T3,TW1)..(20T,30T,35T)¥3,590199404-199505

main52087-92806iBU84,91..T4;BU88..T2,T4;BU87..T4..CBU;BU87..(T3,T4,TW1)..IV3¥3,100199404-199505

sub52087-37080¥3,100

main52087-92806iBU88..T2,T4;BU83,84,87..T4¥3,100198910-199309

sub52087-37080¥3,100

main52087-92806iBU84..T4;BU88..T2,T4;BU87..T4..CBU;BU87..(T3,T4,TW1)..IV3¥3,100199309-199404

sub52087-37080¥3,100

main52087-92806iBU88..T2,T4;BU83,84,87,90,91..T4¥3,100198808-198910

sub52087-37080¥3,100

main52087-92807iBU78¥7,900198910-199505

main52087-92808iBU9#..T3;BU94..T4..IV3¥3,560198910-199404

sub52087-92805¥3,590

main52087-92809iBU91..T4¥3,100198910-199404

sub52087-92806¥3,100

main52151-93100iBU72..DM3,DM4¥3,530198910-199505

52088STAY SUB-ASSY, REAR BUMPER SIDE, LH

main52088-37010iBU73..06S..20T¥4,400199109-199505

main52088-92703iBU72,73..T3¥7,400198910-199505

main52088-92800iBU66..275,30T¥4,210198808-199505

main52088-92804iBU84,87..T2¥2,680198808-199505

main52088-92805iBU88..DYN..275;BU88..TOY..275..IV3;BU85,88,9#..(T3,TW1)..(20T,30T,35T)¥3,590198909-198910

main52088-92805iBU94,96;BU88..DYN..275;BU88..TOY..275..IV3;BU88,91..(T3,TW1)..(20T,30T,35T)¥3,590199404-199505

main52088-92805iBU85,88,9#..T3,TW1¥3,590198808-198909

main52088-92805iBU94..T4..CBU;BU88..DYN..275;BU88..TOY..275..IV3;BU88..(T3,TW1)..(20T,30T)¥3,590198910-199404

main52088-92806iBU88..T2,T4;BU83,84,87,90,91..T4¥3,100198808-198910

sub52088-37080¥3,100

main52088-92806iBU88..T2,T4;BU83,84,87..T4¥3,100198910-199309

sub52088-37080¥3,100

main52088-92806iBU84..T4;BU88..T2,T4;BU87..T4..CBU;BU87..(T3,T4,TW1)..IV3¥3,100199309-199404

sub52088-37080¥3,100

main52088-92806iBU84,91..T4;BU88..T2,T4;BU87..T4..CBU;BU87..(T3,T4,TW1)..IV3¥3,100199404-199505

sub52088-37080¥3,100

main52088-92807iBU78¥7,900198910-199505

main52088-92808iBU9#..T3;BU94..T4..IV3¥3,560198910-199404

sub52088-92805¥3,590

main52088-92809iBU91..T4¥3,100198910-199404

sub52088-92806¥3,100

main52151-93100iBU72..DM3,DM4¥3,530198910-199505

52151EBAR, REAR BUMPER

main52105-92700iBU60,61,66..T3..ST..CBU¥67,700198808-199505

����� ��� OR ��(�� ����)

main52105-92700iBU60,61,66..T3..ST..IV3¥67,700198808-199505

����� ���

main52105-92702iBU72,73..T3¥21,300198910-199505

main52151-37010iBU73..06S..20T¥21,300199109-199505

main52151-92702iBU78..CBU¥21,300198910-199505

main52151-92801iBU83,84,87..T4;BU88..(T2,T4)..IV3¥21,200199109-199309

sub52151-92805¥13,400

main52151-92801iBU87..T4;BU88..T3,TW1;BU66..275,30T;BU83,84,85..T3,T4;BU88..(T2,T4)..IV3¥21,200198808-198909

sub52151-92805¥13,400

main52151-92801iBU87..T4;BU66..275,30T;BU88..DYN..275;BU83,84,85..T3,T4;BU88..(T2,T4)..IV3;BU88..TOY..275..IV3;BU88..(T3,TW1)..(20T,30T)¥21,200198909-198910

sub52151-92805¥13,400

main52151-92801iBU88..IV3;BU83,84,87..T4¥21,200199008-199109

sub52151-92805¥13,400

main52151-92801iBU88..IV3;BU66..275,30T;BU83,84,87..T4¥21,200198910-199008

sub52151-92805¥13,400

main52151-92802iBU90..IV3;BU91,94,95,96;BU90..T3..CBU¥21,300198808-198910

sub52151-92806¥21,300

main52151-92802iBU91..IV3;BU94,96..T3;BU91..T3..CBU;BU94..T4..IV3¥21,300199404-199505

sub52151-92806¥21,300

main52151-92805iBU78..IV3;BU84,87..T2;BU66..275,30T;BU88..DYN..275..CBU;BU88..(20T,30T)..CBU¥13,400199008-199109

main52151-92805iBU78..IV3;BU84,87..T2;BU66..275,30T;BU88..DYN..275;BU88..(T2,T4)..CBU;BU88..TOY..275..IV3;BU88..(T3,TW1)..(20T,30T)¥13,400199109-199309

main52151-92805iBU66..275,30T;BU88..DYN..275;BU78,87..TR..IV3;BU84,88..20T,30T;BU87..(T2,T4)..CBU;BU88..TOY..275..IV3¥13,400199309-199505

main52151-92805iBU84,87..T2;BU88..(T2,T4)..CBU¥13,400198808-198910

main52151-92805iBU78..IV3;BU84,87..T2;BU88..DYN..275..CBU;BU88..(20T,30T)..CBU¥13,400198910-199008

main52151-92806iBU91..T4..CBU¥21,300199404-199505

main52151-92806iBU90..T4..CBU¥21,300198808-199404

main52151-92808iBU94..T4..CBU¥21,300199404-199505

main52151-92808iBU94,96;BU91..IV3;BU91..T3..CBU¥21,300198910-199404

main52151-92809iBU91..T4..CBU¥21,200198910-199404

sub52151-92806¥21,300

main52151-95401iBU60..(T1,TW1)..CBU¥67,700198808-199505

����� ��� OR ��(�� ����)

main52151-95401iBU60..(T1,TW1)..IV3¥67,700198808-199505

����� ���

main52152-93101iBU72..DM3,DM4¥14,100198910-199505

65079BRACKET SUB-ASSY, TAIL GATE BUMPER STOP

main65079-92800iBU88..DYN..275..CBU;BU88,91..(T3,TW1)..(20T,30T,35T)..CBU¥990198909-199505

66321BUMPER, GATE RUBBER

main66321-92200iBU88..DYN..275..CBU;BU88,91..(T3,TW1)..(20T,30T,35T)..CBU¥620198909-199505

9054110058

main90541-10058¥160

9111251435

main91112-51435¥320

9111271455

main91112-71455¥250

9111271460

main91112-71460¥330

9116171235

main91161-71235¥230

9165141020

main91651-41020¥90

9166161020

main91661-61020¥190

9321016014

main93210-16014¥120

9411551200

main94115-51200¥170

9411551400

main94115-51400¥200

9451201200

main94512-01200¥100

9451201400

main94512-01400¥100

9461211200

main94612-11200¥100

18 parts on this diagram · 5 diagrams in section
