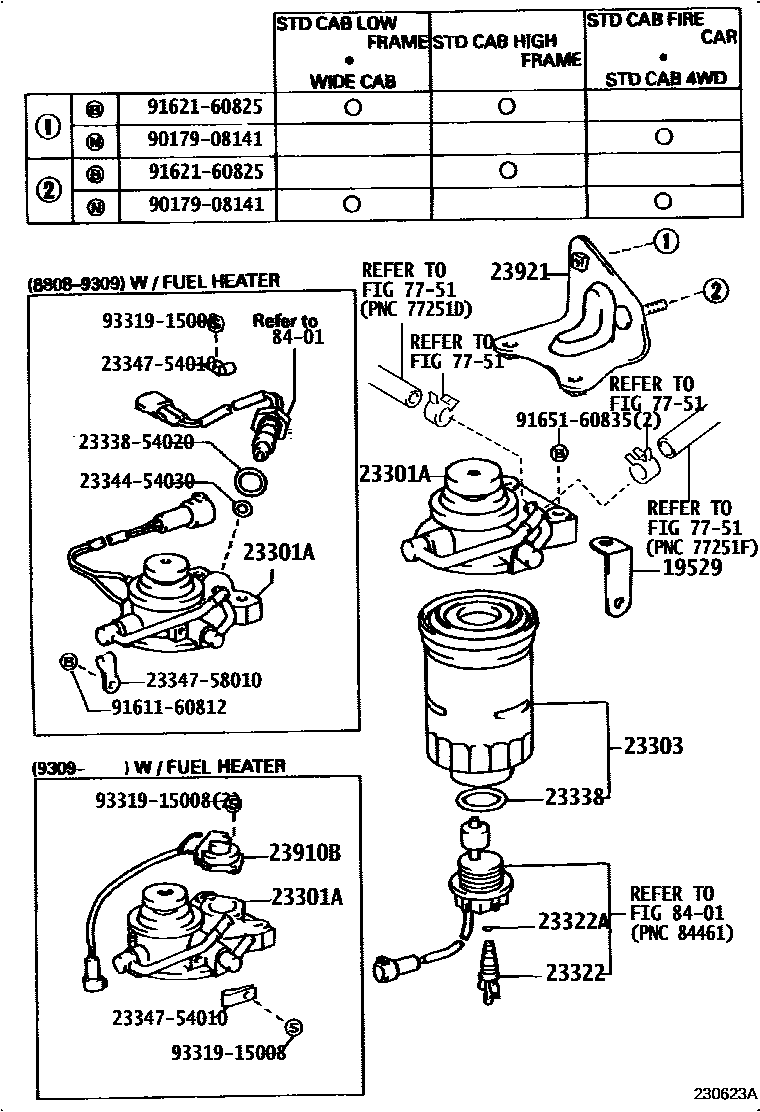

Toyota DYNA/TOYOACE — FUEL FILTER

0001 1 0002 1

19529CLAMP

main19529-56010iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96¥440198808-199505

23301BODY SUB-ASSY, FUEL FILTER

main23311-56070i13BT..BU85,90,95¥3,720198808-198910

23301ACAP ASSY, FUEL FILTER

main23301-56050iB,11B,14B,3B..BU60,61,66,68,70,83,84,87..CBU,IV3¥13,500198808-199309

main23301-56060i14B..BU66,73..TW1;14B..BU67..DM4,T3¥13,500198808-199309

main23301-56070i14B..BU67..DM1¥13,400199008-199309

main23301-56170iB,11B,14B,3B..BU60,61,66,68,70,83,84,87..CBU,IV3¥13,500198808-199309

main23301-56180i14B..BU66,73..TW1;14B..BU67..DM4,T3¥13,400198901-199309

main23301-56210i14B..BU72,73,74..03S¥13,400198910-199309

main23301-56220i14B..BU72,73,74..03S¥13,500198910-199309

main23301-56230i14B..BU67..DM1¥13,500199008-199309

main23301-56260iB,11B,14B,3B..BU60,61,66,68,70,84,87..CBU,IV3¥13,500199309-199505

main23301-56270i14B..BU66,73..TW1;14B..BU67..DM4,T3¥13,500199309-199505

main23301-56280i14B..BU67..DM1¥13,600199309-199505

main23301-56290i14B..BU72,73,74..03S¥13,500199309-199505

main23301-56300iB,11B,14B,3B..BU60,61,66,68,70,84,87..CBU,IV3¥13,500199309-199505

main23301-56310i14B..BU66,73..TW1;14B..BU67..DM4,T3¥13,500199309-199505

main23301-56320i14B..BU72,73,74..03S¥13,500199309-199505

main23301-56330i14B..BU67..DM1¥13,400199309-199505

main23301-58080i14B#..BU78,88,91,94,96¥13,500198808-199309

main23301-58130i14B#..BU78,88,91,94,96¥13,400198808-199309

main23301-58190i14B#..BU78,88,9#¥13,600199309-199505

main23301-58200i14B#..BU78,88,9#¥13,600199309-199505

23303ELEMENT SUB-ASSY, FUEL FILTER

main23303-54072i13BT..BU85,90,95¥4,580198808-198910

main23303-64010iB,11B,14B..BU6#,70,83,84,87,88,91,94,96..CBU,IV3¥6,300198808-199505

23322PLUG, DRAIN(FOR FUEL FILTER)

main23322-64010iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96¥700198808-199505

23322ARING, O(FOR DRAIN PLUG)

main23344-54010iB,11B,14B..BU6#,70,83,84,87,88,91,94,96..CBU,IV3¥0198808-199505

23338GASKET(FOR WARNING SWITCH)

main23344-64010iB,11B,14B..BU6#,70,83,84,87,88,91,94,96..CBU,IV3¥0198808-199505

23910BHEATER ASSY, FUEL

main23910-17030iB,11B,14B#,3B..BU6#,7#,8#,9#¥12,100199309-199505

23921SUPPORT, FUEL FILTER

main23921-56011iB,11B,14B,3B..BU60,61,66,68,70,83,84,87..CBU,IV3¥3,310198808-199505

main23921-56040i14B..BU67..DM4,T3¥3,010198808-199505

main23921-56050i14B..BU67..DM1¥3,310199008-199505

main23921-56060i14B..BU72,73,74..03S¥2,030198910-199505

main23921-58040i13BT..BU85,90..IV3198808-199001

main23921-58050i14B..BU88,91,94,96¥4,050198808-198810

sub23921-58051¥4,050

main23921-58051i14B..BU88..4FC¥4,050198812-199505

main23921-58051i14B..BU88,91,94,96¥4,050198810-198812

main23921-58090i14B..BU66,73..TW1¥3,710198808-199505

main23921-58100i14B#..BU78,88,91,94,96¥2,590198812-199505

7751

8401

2333854020GASKET(FOR WARNING SWITCH)

main23338-54020¥170

2334454030GASKET, CLAMPING NUT(FOR FUEL FILTER)

main23344-54030

2334754010CLIP, CORD

main23347-54010¥0

2334758010CLIP, CORD

main23347-58010

9017908141

main90179-08141¥120

9161160812

main91611-60812¥140

9162160825

main91621-60825¥130

9165160835

main91651-60835¥90

9331915008

main93319-15008¥170

20 parts on this diagram · 2 diagrams in section
