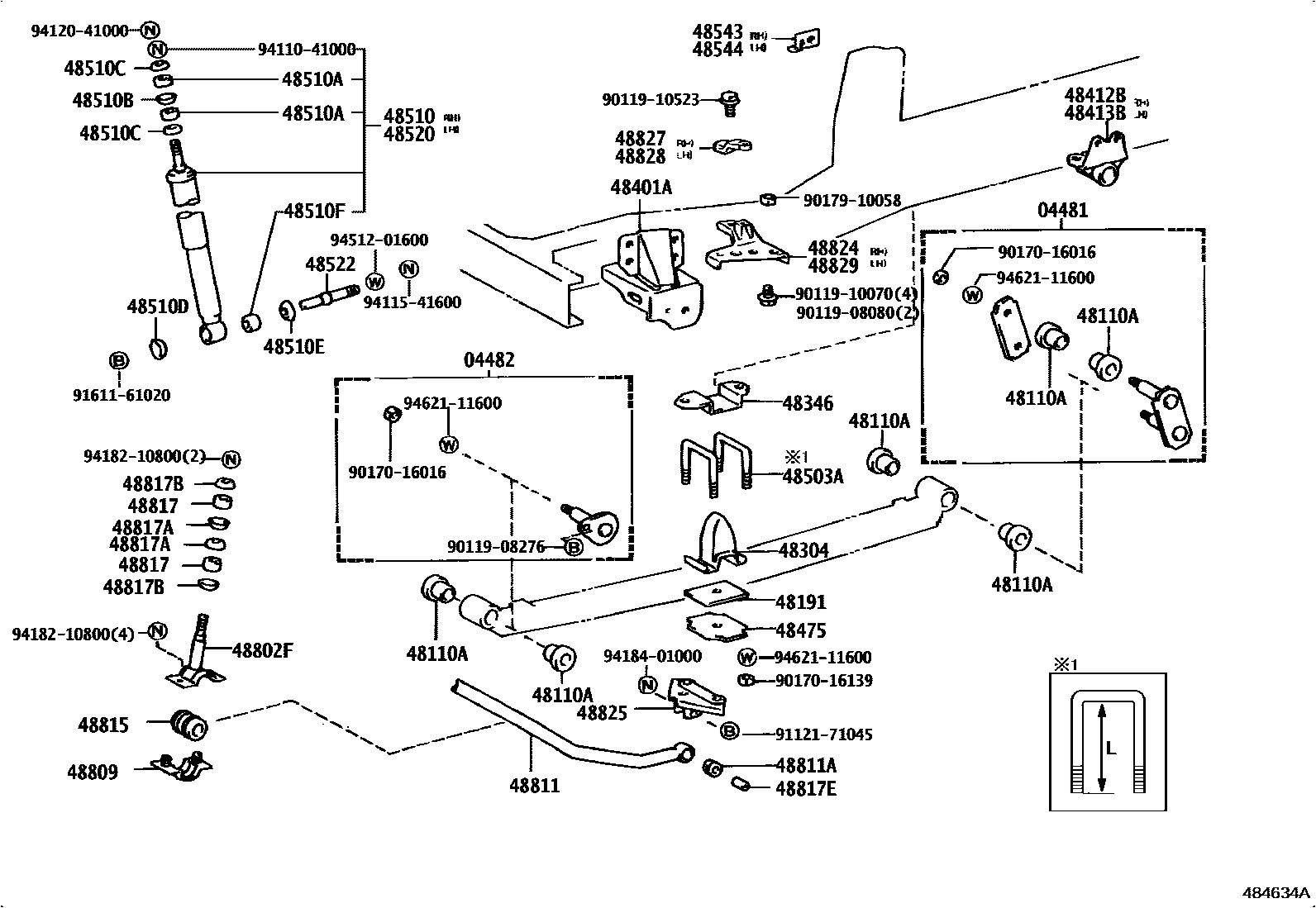

Toyota DYNA/TOYOACE — FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1 0004 12-LEAF 0005 12-LEAF 0006 13-LEAF 0007 13-LEAF 0009 15-LEAF 0010 16-LEAF 0011 18-LEAF

04481SHACKLE KIT, FRONT SPRING

main04481-36070iBU6#,70,72,73,74,83,84,87¥5,800198808-199505

sub04481-36090¥5,600

main04481-36080iBU78,88,9#¥4,150198808-199505

04482PIN KIT, FRONT SPRING

main04482-36010iBU6#,70,72,73,74,83,84,87¥2,170198808-199505

sub04482-36011¥2,150

main04482-36020iBU78,88,9#¥970198808-199505

48110SPRING ASSY, FRONT, RH

main48110-3B130iBU60,61,66,70..HRF,SRF,T2,TW2¥44,200198808-199505

main48110-3B170iBU61,66..T2;BU60..TW2..CBU;BU60..(T2,TW2)..IV3¥49,400198808-199505

sub48110-3B171¥49,400

main48110-3B230iBU66..IV4¥54,100198808-199505

main48110-3B280iBU66..30T;BU87..275,30T¥55,700198808-199505

main48110-3B320iBU87..V;BU83,84,87..20T¥51,200198808-199505

main48110-3B370iBU91,96¥83,000198808-199505

main48110-3B390iBU91,96¥85,000198808-199505

main48110-3B440iBU66..30T..IV3¥69,500198808-199505

main48110-3B470iBU88..T2¥38,600198808-199505

main48110-3B490iBU78,88,94..(T3,T4,TW1)..20T¥38,600198808-199505

main48110-3B550iBU78,88,94..275,30T¥76,500199109-199505

main48110-3B550iBU78,85,88,94..(T3,T4,TW1)..20T¥76,500198808-199505

main48110-3B570iBU78,88,94..275,30T¥83,200198808-199505

main48110-3B650iBU72,73..DM5,T4,TW1¥42,200198910-199111

sub48110-3B651¥42,200

main48110-3B651iBU72,73..DM5,T4,TW1¥42,200199111-199209

sub48110-3B652¥42,200

main48110-3B652iBU72,73..DM5,T4,TW1¥42,200199209-199505

main48110-3B670iBU72,74..DM3,DM4,T3¥48,900198910-199111

sub48110-3B671¥48,900

main48110-3B671iBU72,74..DM3,DM4,T3¥48,900199111-199209

sub48110-3B672¥48,900

main48110-3B672iBU72,73,74..DM3,DM4,T3¥48,900199209-199505

main48110-3B710iBU67..T3¥50,900198808-199505

main48110-3B740iBU72..T4..IV3¥42,200199104-199111

sub48110-3B741¥42,200

main48110-3B741iBU72..T4..IV3¥42,200199111-199209

sub48110-3B742¥42,200

main48110-3B742iBU72..T4..IV3¥42,200199209-199505

main48110-3B770iBU60,61,66..(T2,T3)..5F..WT..20T..IV3¥47,600199210-199505

main48110-3B770iBU60,61,66..(T2,T3)..5F..WT..20T..IV3¥47,600199210-199505

main48110-3B790iBU87..(T3,T4)..5F..20T..IV3¥50,400199210-199505

main48110-3B810iBU66,68..DM1¥47,600199211-199309

48110ABUSH(FOR FRONT SPRING SHACKLE)

main90385-23037iBU6#,70,72,73,74,83,84,87¥380198808-199505

48191WEDGE, CASTER(FOR FRONT LEAF SPRING)

main48191-25010iBU6#,70..DM1,DM3,DM4,DM5,HRF,SRF,T1,T3,T4,TW1,TW4¥930198808-199505

main48191-35020iBU85,88,9#¥640198808-199505

main48191-36110iBU83,84,87¥4,650198808-199505

main48192-35010iBU66..DM2¥610198811-199505

48304BUMPER SUB-ASSY, FRONT SPRING, NO.1

main48304-36100iBU72,73..DM5,T4,TW1¥2,300198910-199505

main48304-36110iBU78,88,94..(T3,T4,TW1)..20T¥2,690198808-199505

TYPE B

main48304-36110iBU88..T2;BU78,88,94..275,30T¥2,690199109-199505

main48304-36120iBU78,88,9#..(T3,T4,TW1)..(20T,35T)¥4,270198808-199505

TYPE A

main48304-36130iBU72,73,74..DM3,DM4,T3,TW1¥2,470198910-199505

main48304-36130iBU72..T4..IV3¥2,470199104-199505

main48304-36150iBU60,61,67,70,83,84,87;BU66..DM2,DM3,DM5,T2,T3,T4,TW1,TW4¥4,270198808-199505

48346STOPPER, BUMPER, FRONT

main48346-36040iBU60,61,66,68,70,83,84,87¥1,020198808-199505

main48346-36050iBU67¥530198808-199505

48401ABRACKET SUB-ASSY, SPRING, NO.1

main48411-36120iBU60,61,66,68,70,83,84,87¥6,700198808-199505

main48411-36130iBU78,85,88,94¥5,900198808-199505

main48411-36140iBU90,91,95,96¥5,900198808-199505

main48411-36150iBU67¥3,240198808-199505

main48411-36160iBU72,73,74¥6,700198910-199505

main48412-36120iBU60,61,66,68,70,83,84,87¥6,700198808-199505

main48412-36130iBU78,85,88,94¥5,900198808-199505

main48412-36140iBU90,91,95,96¥5,900198808-199505

main48412-36150iBU67¥3,240198808-199505

main48412-36160iBU72,73,74¥6,700198910-199505

48412BBRACKET, SPRING, NO.2 RH

main48413-36050iBU60,61,66,68,70,83,84,87¥2,410198808-199505

main48413-36060iBU67¥3,060198808-199505

main48413-36070iBU72,73,74¥2,940198910-199505

main48433-36060iBU78,85,88,9#¥4,770198808-199505

48413BBRACKET, SPRING, NO.2 LH

main48413-36050iBU60,61,66,68,70,83,84,87¥2,410198808-199505

main48413-36060iBU67¥3,060198808-199505

main48413-36070iBU72,73,74¥2,940198910-199505

main48434-36060iBU78,85,88,9#¥4,770198808-199505

48475PLATE, DISTANCE(FOR FRONT)

main48475-36070iBU6#,70,78,8#,9#¥1,360198808-199505

48503ABOLT, U(FOR FRONT SHOCK ABSORBER BRACKET)

main90117-16015iBU90,91,95,96¥1,710198808-199408

sub90117-16033¥1,760

main90117-16016iBU90,91,95,96¥1,820198808-199505

main90117-16017iBU78,85,88,9#..275,30T,35T¥1,720198808-199505

main90117-16017iBU78,85,88,9#..275,30T,35T¥1,720198808-199505

main90117-16020iBU87..20T;BU60,61,70,84;BU67,87..DMP,V;BU66..(DM2,DM3,DM5,T2,T3,T4,TW4)..(175,20T,275)¥1,530198808-199505

main90117-16029iBU66..T2..5F..IV3;BU60..(T2,T3)..WT..IV3¥1,430198808-199505

main90117-16029iBU61..WT..IV3;BU87..(T3,T4)..5F..20T..IV3¥1,430198808-199210

main90117-16033iBU90,91,95,96¥1,760198808-199505

main90117-16033iBU91,96¥1,760199408-199505

main90117-16034iBU72,73,74¥1,380198910-199505

main90117-16036iBU60,61,66..T4..IV3¥1,540199210-199505

main90117-16036iBU60,61,66..T4..IV3¥1,540199210-199505

main90117-16043iBU66,68..DM1¥1,630199309-199505

main90117-16047iBU66..30T;BU87..275,30T;BU67,78,85,88,94..TR..20T¥2,290198808-199505

main90117-16093iBU66..30T;BU87..275,30T;BU67,78,85,88,94..TR..20T¥1,160198808-199505

48510ABSORBER ASSY, SHOCK, FRONT RH

main48511-39495iBU78,85,88,94..275,30T¥7,100198808-199201

sub48511-39496¥7,100

main48511-39495iBU78,85,88,94..275,30T¥7,100198808-199201

sub48511-39496¥7,100

main48511-39496iBU78,88,94..(T3,T4,TW1)..20T¥7,100199201-199505

sub48511-80018¥6,800

main48511-39496iBU78,88,94..(T3,T4,TW1)..20T¥7,100199201-199505

sub48511-80018¥6,800

main48511-39505iBU6#,70,83,84,87..CBU,IV3¥7,100198808-199201

sub48511-39506¥7,100

main48511-39506iBU6#,70,83,84,87..CBU,IV3¥7,100199201-199505

sub48511-80015¥6,800

main48511-39515iBU66..IV4¥7,100198808-199201

sub48511-39516¥7,100

main48511-39516iBU66..IV4¥7,100199201-199505

sub48511-80016¥6,800

main48511-39525iBU95,96¥7,100198808-199201

sub48511-39526¥7,100

main48511-39526iBU96¥7,100199201-199505

sub48511-80020¥6,800

main48511-39535iBU90,91,95,96¥7,100198808-199201

sub48511-39536¥7,100

main48511-39536iBU91,96¥7,100199201-199505

sub48511-39537¥7,100

main48511-39545iBU78,85,88,94..20T¥7,600198808-199505

sub48511-80019¥7,600

main48511-39895iBU72,73,74¥7,200198910-199011

sub48511-39896¥7,200

main48511-80002iBU72,73,74¥7,100199011-199201

sub48511-80008¥7,100

main48511-80008iBU72,73,74¥7,100199201-199505

sub48511-80017¥6,800

48510ACUSHION, FRONT SHOCK ABSORBER

main90948-01003iBU6#,7#,8#,9#¥220198808-199505

48510BRETAINER, CUSHION, NO.1(FOR FRONT SHOCK ABSORBER)

main90948-02007iBU6#,7#,8#,9#¥170198808-199505

48510CRETAINER, CUSHION, NO.2(FOR FRONT SHOCK ABSORBER)

main90948-02002iBU6#,7#,8#,9#¥170198808-199505

48510DWASHER, FRONT SHOCK ABSORBER CUSHION, NO.1

main90948-03007iBU78,88,94..275,30T;BU6#,70,72,73,74,84,87,91,96¥110198808-199505

main90948-03011iBU78,85,88,94..20T¥130198808-199505

48510EWASHER, FRONT SHOCK ABSORBER CUSHION, NO.2

main90948-03004iBU78,85,88,94..(T3,T4,TW1)..20T¥200198808-199505

HEAVY DUTY SPEC

main90948-03004iBU78,88,94..275,30T;BU6#,70,72,73,74,83,84,87,91,96¥200199109-199505

main90948-03011iBU78,85,88,94..20T¥130198808-199505

48510FCUSHION, SHOCK ABSORBER

main90385-16011iBU78,85,88,94..275,30T;BU6#,70,72,73,74,83,84,87,90,91,95,96¥380198808-199505

HEAVY DUTY SPEC

main90385-16011iBU78,88,94..275,30T;BU6#,70,72,73,74,83,84,87,91,96¥380199109-199505

main90385-19006iBU78,88,94..20T¥400198808-199505

48520ABSORBER ASSY, SHOCK, FRONT LH

main48511-39495iBU78,85,88,94..275,30T¥7,100198808-199201

sub48511-39496¥7,100

main48511-39495iBU78,85,88,94..275,30T¥7,100198808-199201

sub48511-39496¥7,100

main48511-39496iBU78,88,94..(T3,T4,TW1)..20T¥7,100199201-199505

sub48511-80018¥6,800

main48511-39496iBU78,88,94..(T3,T4,TW1)..20T¥7,100199201-199505

sub48511-80018¥6,800

main48511-39505iBU6#,70,83,84,87..CBU,IV3¥7,100198808-199201

sub48511-39506¥7,100

main48511-39506iBU6#,70,83,84,87..CBU,IV3¥7,100199201-199505

sub48511-80015¥6,800

main48511-39515iBU66..IV4¥7,100198808-199201

sub48511-39516¥7,100

main48511-39516iBU66..IV4¥7,100199201-199505

sub48511-80016¥6,800

main48511-39525iBU95,96¥7,100198808-199201

sub48511-39526¥7,100

main48511-39526iBU96¥7,100199201-199505

sub48511-80020¥6,800

main48511-39535iBU90,91,95,96¥7,100198808-199201

sub48511-39536¥7,100

main48511-39536iBU91,96¥7,100199201-199505

sub48511-39537¥7,100

main48511-39545iBU78,85,88,94..20T¥7,600198808-199505

sub48511-80019¥7,600

main48511-39895iBU72,73,74¥7,200198910-199011

sub48511-39896¥7,200

main48511-80002iBU72,73,74¥7,100199011-199201

sub48511-80008¥7,100

main48511-80008iBU72,73,74¥7,100199201-199505

sub48511-80017¥6,800

48522PIN, FRONT SHOCK ABSORBER LOWER PIVOT

main48522-25010iBU78,88,94..275,30T;BU6#,70,72,73,74,83,84,87,91,96¥670199109-199505

main48522-25010iBU78,85,88,94..275,30T;BU6#,70,72,73,74,83,84,87,90,91,95,96¥670198808-199505

HEAVY DUTY SPEC

main48522-36041iBU78,88,94..20T¥740198808-199505

48543REINFORCEMENT, FRONT ABSORBER BRACKET, RH

main48543-36010iBU67¥880198808-199505

48544REINFORCEMENT, FRONT ABSORBER BRACKET, LH

main48544-36010iBU67¥880198808-199505

48802FLINK SUB-ASSY, FRONT STABILIZER

main48802-36031iBU68,70,90,91,95,96;BU60,61,66..(T2,TW2)..IV3;BU60,61,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥1,460198808-199505

sub48802-36032¥1,460

sub48809-36011¥780

sub94184-61001¥80

main48802-36031iBU66..30T..IV3¥1,460198808-199505

sub48802-36032¥1,460

sub48809-36011¥780

sub94184-61001¥80

48809BRACKET SUB-ASSY, STABILIZER

main48809-36010iBU68,70,91,96;BU60,61,66..(T2,TW2)..IV3;BU60,61,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥810198808-199505

sub48809-36011¥780

sub48802-36032¥1,460

sub94184-61001¥80

main48809-36010iBU66..30T..IV3¥810198808

sub48809-36011¥780

sub48802-36032¥1,460

sub94184-61001¥80

48811BAR, STABILIZER, FRONT

main48811-36020iBU60,61,66..(T2,TW2)..IV3;BU61,68,70..DM1,HRF,SRF,T4;BU60,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥16,100198808-199505

main48811-36050iBU90,91,95,96¥18,100198808-199505

48811ABUSH(FOR FRONT STABILIZER BAR)

main90385-13004iBU68,70,90,91,95,96;BU60,61,66..(T2,TW2)..IV3;BU60,61,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥390198808-199505

main90385-13004iBU66..30T..IV3¥390198808

48815BUSH, FRONT STABILIZER BAR, NO.1

main48815-36020iBU68,70,90,91,95,96;BU60,61,66..(T2,TW2)..IV3;BU60,61,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥800198808-199505

main48815-36020iBU66..30T..IV3¥800198808

48817CUSHION, FRONT STABILIZER

main48817-36011iBU68,70,90,91,95,96;BU60,61,66..(T2,TW2)..IV3;BU60,61,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥180198808-199505

main48817-36011iBU66..30T..IV3¥180198808

48817ARETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR)

main90948-02015iBU68,70,90,91,95,96;BU60,61,66..(T2,TW2)..IV3;BU60,61,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥90198808-199505

main90948-02015iBU66..30T..IV3¥90198808

48817BRETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR)

main90948-02032iBU68,70,91,96;BU60,61,66..(T2,TW2)..IV3;BU60,61,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥200198808-199505

main90948-02032iBU66..30T..IV3¥200198808

48817ESPACER(FOR STABILIZER BAR)

main90560-10044iBU68,70,90,91,95,96;BU60,61,66..(T2,TW2)..IV3;BU60,61,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥130198808-199505

48824BRACKET, STABILIZER, FRONT

main48824-36032iBU60,61,66..(T2,TW2)..IV3;BU61,68,70..DM1,HRF,SRF,T4;BU60,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥4,890198808-199505

sub48824-36033¥4,890

main48824-36032iBU66..30T..IV3¥4,890198808

sub48824-36033¥4,890

main48824-36062iBU90,91,95,96¥3,520198808-199505

48825BRACKET, STABILIZER, NO.2

main48825-36010iBU66..30T..IV3¥2,240198808-199505

main48825-36020iBU90,91,95,96¥2,240198808-199505

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-36042iBU91,96¥1,830198808-199505

sub48827-36043¥1,830

main48827-36050iBU66..30T..IV3¥1,600198808-199505

sub48827-36051¥1,980

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-36050iBU60,61,66..(T2,TW2)..IV3;BU61,68,70..DM1,HRF,SRF,T4;BU60,66..(DM1,DM2,DM3,DM5,T3,T4,TW4)..WT..(175,20T)¥1,600198808-199505

sub48827-36051¥1,980

main48828-36032iBU90,91,95,96¥1,830198808-199505

sub48828-36033¥1,830

48829BRACKET, STABILIZER

main48829-36022iBU66..30T..IV3¥4,890198808-199505

sub48829-36023¥4,890

main48829-36042iBU91,96¥3,520198808-199505

9011908080

main90119-08080¥90

9011908276

main90119-08276¥130

9011910070

main90119-10070¥90

9011910523

main90119-10523¥200

9017016016

main90170-16016¥130

9017016139

main90170-16139¥300

9017910058

main90179-10058¥300

9112171045

main91121-71045¥230

9161161020

main91611-61020¥240

9411041000

main94110-41000¥160

9411541600

main94115-41600¥210

9412041000

main94120-41000¥80

9418210800

main94182-10800¥230

9418401000

main94184-01000¥160

9451201600

main94512-01600¥200

9462111600

main94621-11600¥320

53 parts on this diagram · 10 diagrams in section
