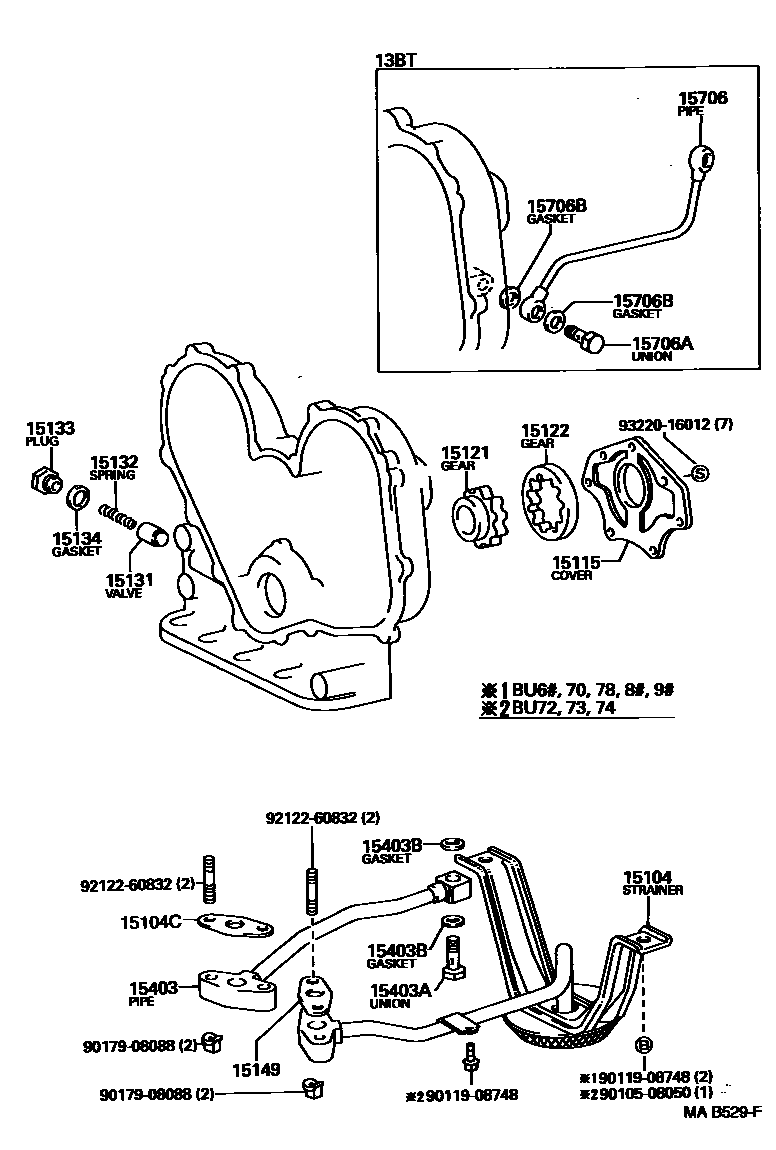

Toyota DYNA/TOYOACE — ENGINE OIL PUMP

0001 1 0002 1

15104STRAINER SUB-ASSY, OIL

main15104-56050i13BT..BU85,90,95¥13,600198808-198910

sub15104-56061¥8,800

main15104-56060iB,11B,14B..BU6#,70,83,84,87,88,91,94,96¥8,700198808-198910

sub15104-56061¥8,800

main15104-56061iB,11B,14B#,3B..BU6#,70,78,8#,9#¥8,800198910-199505

sub15104-56062¥9,500

main15104-58050i14B..BU72,73,74¥13,200198910-199505

main15104-75020i27LPG..BU68¥9,800199311-199505

15104CGASKET(FOR OIL STRAINER)

main15149-56020iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥500198808-199505

sub15149-58010¥240

15115COVER, OIL PUMP

main15115-56040iB,11B,13BT,14B,3B..BU6#,7#,8#,9#¥2,890198808-199505

main15115-56090i14BT..BU88,9#¥3,320198910-199505

main15115-75020i27LPG..BU68¥4,370199311-199505

15121GEAR, OIL PUMP DRIVE

main15121-56040iB,11B,13BT,14B,3B..BU6#,7#,8#,9#¥3,480198808-199505

main15121-56090i14BT..BU88,9#¥2,890198910-199505

15122GEAR, OIL PUMP DRIVEN

main15122-56040iB,11B,13BT,14B,3B..BU6#,7#,8#,9#¥4,090198808-199505

main15122-56090i14BT..BU88,9#¥3,410198910-199505

15131VALVE, OIL PUMP RELIEF

main15131-24010iB,11B,13BT,14B#,27LPG,3B..BU6#,7#,8#,9#¥340198808-199505

15132SPRING, OIL PUMP RELIEF VALVE

main15132-56040i13BT..BU85,90,95¥270198808-198910

main15132-56080iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96¥200198808-199505

main15132-75020i27LPG..BU68¥450199311-199505

main15132-75021i27LPG..BU68¥450199311-199505

15133PLUG, OIL PUMP RELIEF VALVE

main15133-20010iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥340198808-199505

15134GASKET, OIL PUMP RELIEF VALVE

main15134-20010iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96¥350198808-199505

15149GASKET, OIL STRAINER FLANGE

main15149-56020iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥500198808-199505

sub15149-58010¥240

15403PIPE SUB-ASSY, OIL PUMP OUTLET

main15403-56050iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥4,140198808-199505

15403AUNION(FOR OIL PUMP OUTLET PIPE)

main90401-20009iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥410198808-199505

15403BGASKET(FOR OIL PUMP OUTLET PIPE)

main90430-20018iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥90198808-199505

15706PIPE SUB-ASSY, OIL, INJECTION PUMP OUTLET

main15077-56010i13BT..BU85,90,95¥2,780198808-198910

15706AUNION(FOR INJECTION PUMP OUTLET PIPE)

main90401-10026i13BT..BU85,90,95¥180198808-198910

15706BGASKET(FOR INJECTION PUMP OUTLET PIPE)

main90044-30026i13BT..BU85,90,95¥190198808-198910

9010508050

main90105-08050¥200

9011908748

main90119-08748¥140

9017908088

main90179-08088¥160

9212260832

main92122-60832¥120

9322016012

main93220-16012¥180

21 parts on this diagram · 2 diagrams in section
