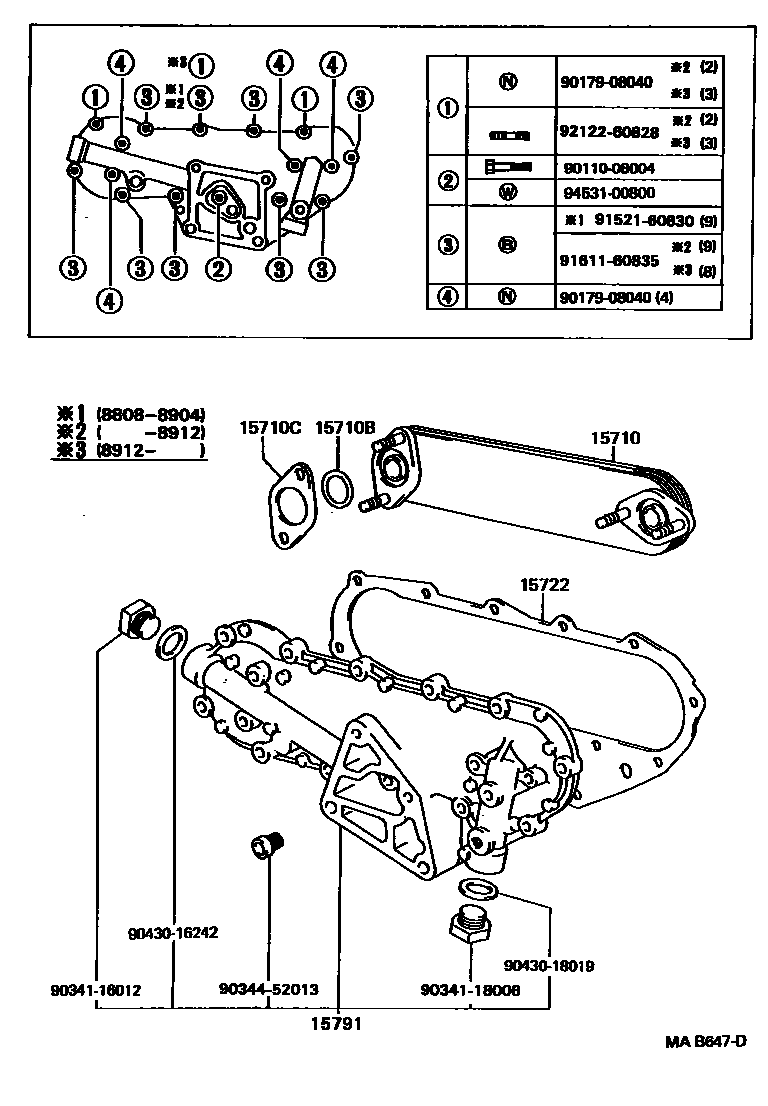

Toyota DYNA/TOYOACE — ENGINE OIL COOLER

0001 1 0002 1 0003 1

15710COOLER ASSY, OIL

main15710-56051i13BT..BU85,90,95¥41,800198808-198910

main15710-56100iB..BU60,70,83¥39,700198808-199505

main15710-56110i11B,14B#,3B..BU61,66,67,68,72,73,74,78,84,87,88,91,94,96¥46,000198808-199505

15710BRING, O(FOR OIL COOLER)

main90301-20001iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥620198808-199505

15710CGASKET(FOR OIL COOLER)

main90923-05018iB,11B,14B..BU6#,70,83,84,87,88,91,94,96¥310198808-199505

15722GASKET, OIL COOLER

main15725-56011i13BT..BU85,90,95¥990198808-198811

sub15725-56020¥640

main15725-56020iB,11B,14B..BU6#,70,83,84,87,88,91,94,96¥640198808-199505

15791CASE, OIL COOLER

main15701-56030iB,11B,14B..BU6#,70,83,84,87,88,91,94,96..CBU,IV3¥33,400198808-198904

sub15701-56031¥33,100

sub91611-60835¥90

main15701-56031iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96..CBU,IV3¥33,100198904-199412

sub15701-58050¥23,200

main15701-58010i13BT..BU85,90,95¥33,300198808-198910

main15701-58030i14B..BU66..IV4¥33,400198808-198810

main15701-58040i14B..BU66,73..IV4¥33,100198810-199412

sub15701-58041¥29,100

main15701-58041i14B..BU66,73..IV4¥29,100199412-199505

main15701-58050iB,11B,14B#,3B..BU6#,7#,8#,9#..CBU,IV3¥23,200199412-199505

9011008004

main90110-08004¥360

9017908040

main90179-08040¥100

9034116012

main90341-16012¥210

9034118006

main90341-18006¥180

9034452013

main90344-52013¥190

9043016242

main90430-16242¥190

9043018019

main90430-18019¥100

9152160830

main91521-60830¥180

9161160835

main91611-60835¥90

9212260828

main92122-60828¥170

9453100800

main94531-00800¥160

16 parts on this diagram · 3 diagrams in section
