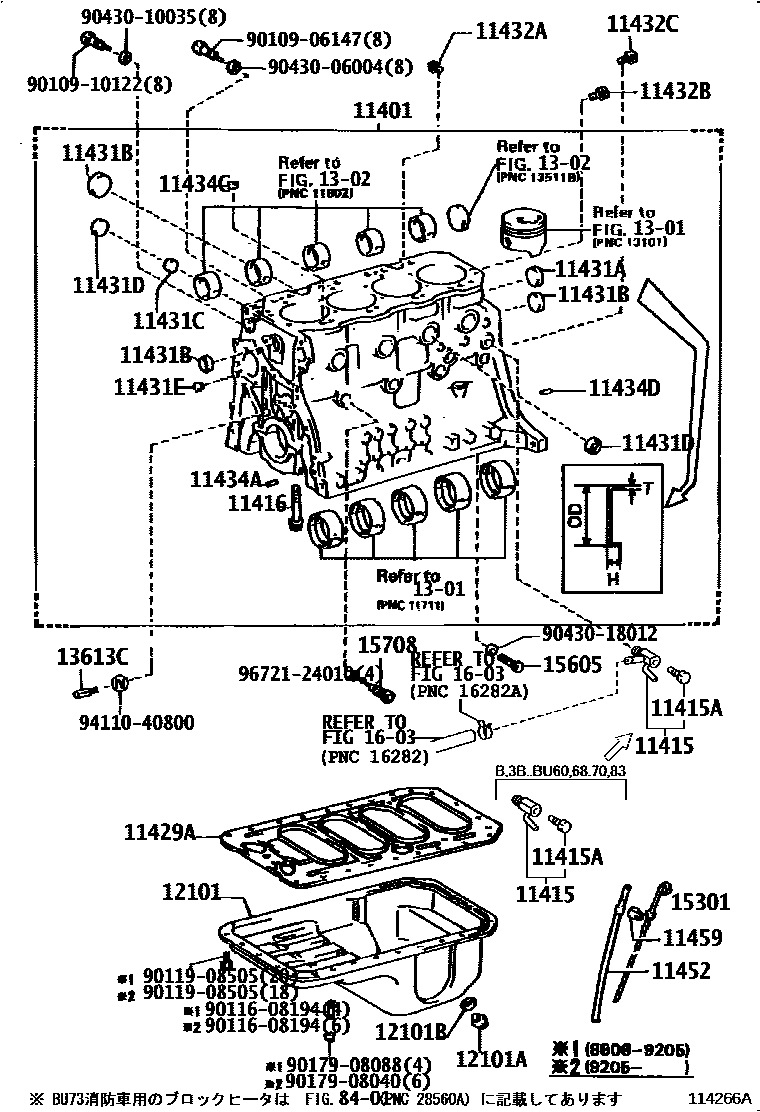

Toyota DYNA/TOYOACE — CYLINDER BLOCK

0001 1 0002 1 0003 1

11401BLOCK SUB-ASSY, CYLINDER

main11401-59375iB..BU60,70,83¥311,000198808-199502

sub11401-59376¥311,000

sub11381-58010¥7,100

main11401-59376iB..BU60,70¥311,000199502-199505

main11401-59385i11B..BU61,84¥319,000198808-199502

sub11401-59386¥318,000

sub11381-58010¥7,100

main11401-59386i11B..BU61,84¥318,000199502-199505

main11401-59395i14B..BU96..5F;14B..BU66,67,72,73,74,78,87,88,91,94¥323,000198808-199502

sub11401-59396¥323,000

sub11381-58010¥7,100

main11401-59396i14B..BU96..5F;14B..BU66,67,72,73,74,78,87,88,91,94¥323,000199502-199505

main11401-59405i13BT..BU85,90,95¥340,000198808-198910

sub11401-59406¥340,000

main11401-59415i3B..BU68¥333,000198910-199502

sub11401-59416¥333,000

sub11381-58010¥7,100

main11401-59416i3B..BU68¥333,000199502-199505

sub11401-59417¥358,000

main11401-59435iB..BU60..WT..20T..IV3¥311,000198810-199502

sub11401-59436¥311,000

sub11381-58010¥7,100

main11401-59436iB..BU60..WT..20T..IV3¥311,000199502-199505

main11401-59445i11B..BU61..WT..IV3¥311,000198810-199502

sub11401-59446¥311,000

sub11381-58010¥7,100

main11401-59446i11B..BU61..WT..IV3¥311,000199502-199505

main11401-59455i14B..BU66..TR..5F..WT..20T..IV3¥311,000198810-199502

sub11401-59456¥311,000

sub11381-58010¥7,100

main11401-59456i14B..BU88..T2..5F..IV3;14B..BU88..T3..30T..IV3¥311,000199502-199505

main11401-59475i14BT..BU88,9#¥305,000198910-199502

sub11401-59476¥305,000

sub11381-58010¥7,100

main11401-59476i14BT..BU88,9#¥305,000199502-199505

main11401-59485i14BT..BU88,91..IV3;14BT..BU96..TOY..IV3;14BT..BU96..DYN..5F..IV3¥305,000198910-199502

sub11401-59486¥305,000

sub11381-58010¥7,100

main11401-59486i14BT..BU88,91..IV3;14BT..BU96..TOY..IV3;14BT..BU96..DYN..5F..IV3¥305,000199502-199505

main11401-79705i27LPG..BU68¥260,000199311-199505

sub11401-79685¥243,000

11415COCK SUB-ASSY, WATER DRAIN(FOR CYLINDER BLOCK)

main90910-09078i11B,14B..BU61,66,67,84,87,88,91,94,96¥1,210198808-199505

main90910-09091i27LPG..BU68¥670199311-199505

main96431-53828iB,13BT,3B..BU60,68,70,83,85,90,95¥640198808-199505

11415APLUG, WATER DRAIN COCK(FOR CYLINDER BLOCK)

main90910-09087i27LPG..BU68¥230199311-199505

main96432-23814iB,11B,13BT,14B..BU6#,70,8#,9#¥640198808-199505

11416BOLT(FOR CRANKSHAFT BEARING CAP SET)

main90910-02082iB,11B,14B#,3B..BU6#,7#,8#,9#¥410198808-199505

main90910-02083iB,11B,14B#,3B..BU6#,7#,8#,9#¥480198808-199505

main90910-02092i27LPG..BU68¥390199311-199505

sub90910-02179¥270

11429APLATE, CYLINDER BLOCK STIFFENING

main11429-56010i11B,14B..BU61,66,67,84,87,88,91,94,96¥13,600198808-198910

sub11429-56011¥7,500

main11429-56011i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,9#¥7,500198910-199505

11431APLUG, TIGHT, NO.1(FOR CYLINDER BLOCK)

main96411-14500iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96¥320198808-199505

main96411-63000i27LPG..BU68¥210199311-199505

11431BPLUG, TIGHT, NO.2(FOR CYLINDER BLOCK)

main90331-50003iB,11B,14B#,3B..BU6#,7#,8#,9#¥230199411-199505

main96411-45000iB,11B,14B#,3B..BU6#,7#,8#,9#¥280199411-199505

main96411-45000iB,11B,14B#,3B..BU6#,7#,83,84,87,88,91,94,96¥280198808-199411

main96411-63500i27LPG..BU68¥230199311-199505

main96411-65000iB,11B,14B#,3B..BU6#,7#,8#,9#¥240199411-199505

11431CPLUG, TIGHT, NO.3(FOR CYLINDER BLOCK)

main96411-43000iB,11B,14B#,3B..BU6#,7#,8#,9#¥240198808-199411

main96411-63000iB,11B,14B#,3B..BU6#,7#,8#,9#¥210199411-199505

main96411-64000i27LPG..BU68¥230199311-199505

11431DPLUG, TIGHT, NO.4(FOR CYLINDER BLOCK)

main96411-43500i13BT..BU85,90,95¥260198808-199411

main96411-63500iB,11B,14B#,3B..BU6#,7#,8#,9#¥230199411-199505

11431EPLUG, TIGHT, NO.5(FOR CYLINDER BLOCK)

main90331-14006iB,11B,14B#,3B..BU6#,7#,8#,9#¥80199411-199505

main96411-41400i13BT..BU85,90,95¥120198808-199411

11432APLUG, W/HEAD TAPER SCREW, NO.1

main90345-51007i13BT,14B..BU66,67,85,87,88,9#¥90198808-199505

main90345-53009i27LPG..BU68¥240199311-199505

11432BPLUG, W/HEAD TAPER SCREW, NO.2

main90345-53004iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥210198808-199505

11432CPLUG, W/HEAD TAPER SCREW, NO.3

main90345-52001iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥230198808-199505

11434APIN, STRAIGHT(FOR TIMING GEAR COVER SET)

main90250-08120iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥140198808-199505

11434CPIN, STRAIGHT (FOR CYLINDER HEAD SET)

main90253-15005iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥230198808-199505

11434DPIN, STRAIGHT(FOR ENGINE REAR OIL SEAL)

main90250-06003i27LPG..BU68¥90199311-199505

main90250-08120iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥140198808-199505

11452GUIDE, OIL LEVEL GAGE

main11409-75020i27LPG..BU68¥1,860199311-199505

main11452-56050iB,11B,13BT,14B#,3B..BU6#,70,78,8#,9#¥1,970198808-199505

main11452-58020i14B..BU72,73,74¥1,280198910-199505

11459SUPPORT, OIL LEVEL GAGE GUIDE

main11459-56040iB,11B,13BT,14B#,3B..BU6#,70,78,8#,9#¥900198808-199505

12101PAN SUB-ASSY, OIL

main12101-56070i13BT..BU85,90,95¥34,200198808-198910

main12101-56080iB..BU60,70,83¥21,900198808-198910

sub12101-56100¥22,100

sub12129-56010¥1,930

sub93385-16014¥80

main12101-56090i11B..BU61,84¥26,400198808-198910

sub12101-56111¥26,400

sub12129-56010¥1,930

sub90341-12012¥160

sub90430-12027¥170

sub93385-16014¥80

main12101-56100iB..BU60,70,83¥22,100198910-199009

sub12101-56101¥21,700

sub90341-12012¥160

sub90430-12027¥170

main12101-56101iB..BU60,70,83¥21,700199009-199505

main12101-56110i11B..BU61,84¥26,600198910-199009

sub12101-56111¥26,400

sub90341-12012¥160

sub90430-12027¥170

main12101-56111i11B..BU61,84¥26,400199009-199505

main12101-58050i14B..BU87..V;14B..BU87..4FC¥34,100198808-198910

sub12101-58051¥34,000

sub90341-12012¥160

sub90430-12027¥170

main12101-58060i14B..BU87..TR..5F;14B..BU66,67,88,91,94,96..CBU,IV3¥37,100198808-198910

sub12101-58100¥37,200

sub12129-58010¥1,930

sub93385-16014¥80

main12101-58070i14B..BU66..IV4¥37,100198808-198910

sub12101-58071¥37,100

sub90341-12012¥160

sub90430-12027¥170

main12101-58100i14B#,3B..BU66,67,68,78,87,88,9#..CBU,IV3¥37,200198910-199009

sub12101-58101¥36,900

sub90341-12012¥160

sub90430-12027¥170

main12101-58101i14B#,3B..BU66,67,68,78,87,88,9#..CBU,IV3¥36,900199009-199505

sub12101-58102¥36,500

main12101-58110i14B..BU72,74¥37,100198910-199009

sub12101-58111¥36,700

sub90341-12012¥160

sub90430-12027¥170

main12101-58111i14B..BU72,73,74..CBU,IV3¥36,700199009-199505

sub12101-58112¥37,200

main12101-58120i14B..BU66..IV4¥37,200198910-199011

sub12101-58121¥36,900

sub90341-12012¥160

sub90430-12027¥170

main12101-58121i14B..BU66..IV4¥36,900199011-199505

sub12101-58122¥37,200

main12101-58130i14B..BU73¥37,200199005-199009

sub12101-58131¥36,900

sub90341-12012¥160

sub90430-12027¥170

main12101-58131i14B..BU73..IV4¥36,900199009-199505

sub12101-58132¥37,200

main12101-75020i27LPG..BU68¥15,500199311-199504

sub12101-75070¥23,300

main12101-75070i27LPG..BU68¥23,300199504-199505

sub12101-75060¥15,500

sub11494-75010¥2,820

sub91651-60614¥70

12101APLUG(FOR OIL PAN DRAIN)

main90341-12012i14B..BU73;B,11B,14B#,3B..BU6#,70,72,74,78,8#,9#..CBU,IV3¥160199009-199304

main90341-12026i14B..BU73;B,11B,14B#,3B..BU6#,70,72,74,78,8#,9#..CBU,IV3¥350199212-199505

sub90341-12012¥160

main90341-18089iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥310198808-199011

sub90033-41020¥200

12101BGASKET(FOR OIL PAN DRAIN PLUG)

main90430-12027iB,11B,14B#,3B..BU6#,7#,8#,9#¥170199009-199312

sub90430-12031¥90

main90430-12031iB,11B,14B#,27LPG,3B..BU6#,7#,8#,9#¥90199311-199505

main90430-18018iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥170198808-199007

sub90430-18023¥140

main90430-18026i14B..BU73;B,11B,14B#,3B..BU6#,70,72,74,78,8#,9#..CBU,IV3¥100199004-199011

1301

1302

13613CNOZZLE, OIL

main90915-01015iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥520198808-199505

15301GAGE SUB-ASSY, OIL LEVEL

main15301-56040i13BT..BU85,90,95¥1,390198808-198910

sub15301-56051¥1,210

main15301-56050iB,11B..BU60,61,70,83,84¥1,240198808-198910

sub15301-56060¥1,210

main15301-56060iB,11B..BU60,61,70,83,84¥1,210198910-199505

main15301-58010i14B..BU66,67,87,88,91,94,96¥1,260198808-198910

sub15301-58011¥1,210

main15301-58011i14B#,3B..BU66,67,68,78,87,88,9#¥1,210198910-199505

main15301-58020i14B..BU72,73,74¥870198910-199505

main15301-75020i27LPG..BU68¥1,200199311-199505

15605VALVE SUB-ASSY, OIL CHECK

main15605-56010iB,11B,13BT,14B#,3B..BU6#,7#,8#,9#¥2,470198808-199505

15708NOZZLE SUB-ASSY, OIL, NO.1

main15708-56010i11B,14B#..BU61,66,67,72,73,74,78,84,87,88,91,94,96¥2,400198808-199505

main15708-58020i13BT..BU85,90,95¥3,050198808-199505

sub15708-56010¥2,400

1603

8401

9010906147

main90109-06147¥80

9010910122

main90109-10122¥200

9011608194

main90116-08194¥90

9011908505

main90119-08505¥80

9017908040

main90179-08040¥100

9017908088

main90179-08088¥160

9043006004

main90430-06004¥70

9043010035

main90430-10035¥190

9043018012

main90430-18012¥140

9411040800

main94110-40800¥120

9672124010

main96721-24010¥200
