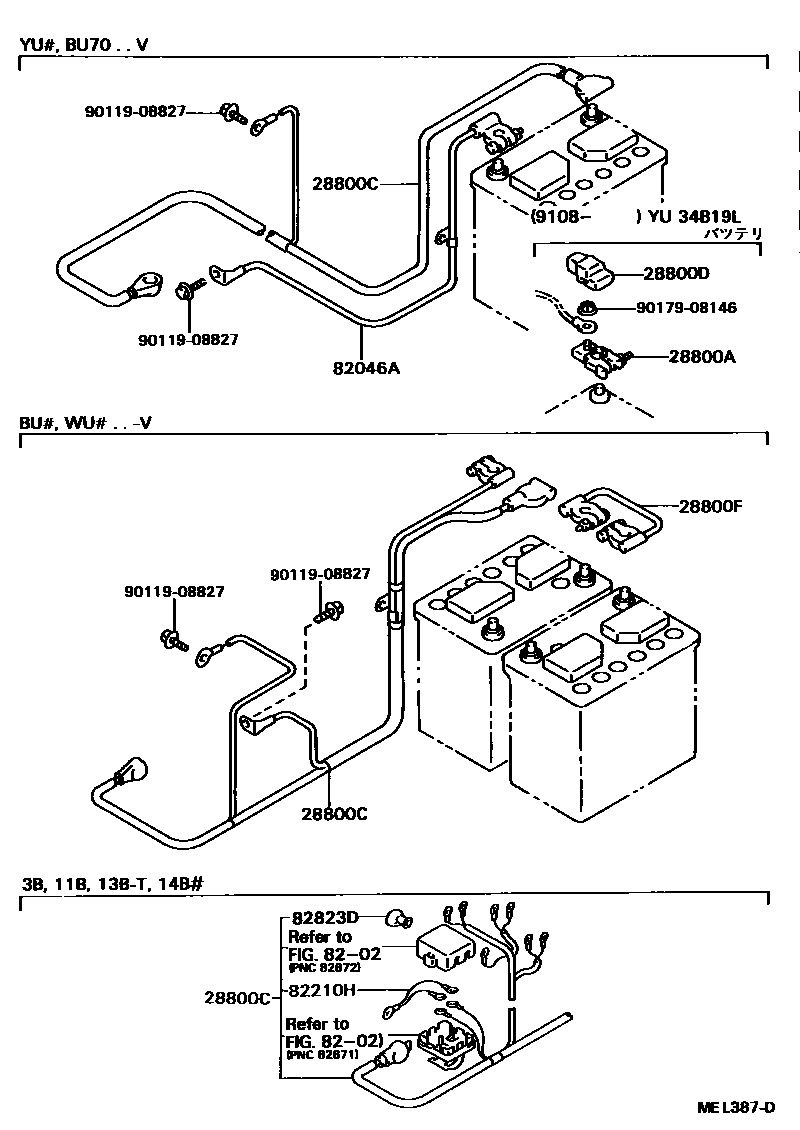

Toyota DYNA/TOYOACE — BATTERY & BATTERY CABLE

0001 1 0002 1 0003 1

28800ATERMINAL, BATTERY POSITIVE

main90982-05030i27LPG..BU68¥1,390199311-199505

28800CCABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)

main82021-37020i14B..BU67..DM1¥35,800199008-199309

main82021-37021i14B..BU67..DM1¥33,800199309-199505

main82021-37040i14B..BU72..DMP¥23,500199109-199309

main82021-37041i14B..BU72..DMP¥22,300199309-199505

main82021-37050i14B..BU66..30T..IV3¥26,500199109-199309

main82021-37051i14B..BU66..30T..IV3¥25,200199309-199505

main82021-37090i14B..BU66..T3..5F..WT..20T¥29,400199109-199309

main82021-37091i14B..BU66..T3..5F..WT..20T¥27,900199309-199505

main82021-37130iB..BU60..ST¥18,000199309-199505

main82021-37140iB,3B..BU60,68..WT¥16,300199309-199505

main82021-37200i14B..BU66..275,30T;11B,14B..BU61,66..5F..ST;11B,14B..BU84,87..5F..03S¥27,900199309-199505

main82021-37210i14B..BU67..(DM4,T3)..5F;11B,14B..BU61,66..5F..WT..(175,20T)¥27,900199309-199505

main82021-37220i14B..BU87..06S¥27,900199309-199505

BATTERY=95D31R

main82021-37240i14B..BU87..4FC;14B..BU66..4FC..ST¥23,700199309-199505

main82021-37250i14B..BU66..4FC..WT¥25,200199309-199505

main82021-37260i14B..BU67..4FC¥23,700199309-199505

main82021-37270i14B..BU74¥25,200199309-199505

main82021-37280i14B..BU72,73..TR..03S¥22,300199309-199505

main82021-37370i14B..BU78,88,9#..5F¥25,200199309-199505

main82021-37380i14B..BU88,96..4FC¥25,200199309-199505

main82021-37390i14BT..BU88,9#..5F¥25,200199309-199505

main82021-37400i14BT..BU96..4FC¥25,200199309-199505

main82021-37440iB..BU70¥8,900199309-199505

main82021-37460i14B..BU66..IV4¥25,200199309-199505

main82021-37480i14B..BU73..06S¥25,200199309-199505

main82021-37510i27LPG..BU68¥10,500199311-199505

main82021-92606i14B..BU66..IV4¥18,100198810-198812

sub82021-92607¥17,800

main82021-92607i14B..BU66..IV4¥17,800198812-199309

main82021-92610i14B..BU73..06S¥45,500199005-199309

main82021-92613iB..BU70¥9,200198808-199309

main82021-95413iB..BU60..TOY..ST¥38,800198808-199309

main82021-95414iB,3B..BU60,68..WT¥38,800198808-199309

main82021-95466i13BT..BU85,90,95¥18,200198808-198910

main82021-95470i14B..BU66..275,30T;11B,14B..BU61,66..5F..ST;11B,14B..BU84,87..5F..03S¥19,500198808-199309

main82021-95471i11B,14B..BU61,66,67..5F..WT..20T¥19,500198808-199309

main82021-95472i14B..BU87..4FC;14B..BU66..4FC..ST¥18,000198808-199309

main82021-95473i14B..BU66..4FC..WT¥18,000198808-199309

main82021-95474i14B..BU87..06S¥19,500198808-199309

main82021-95474i14B..BU66..175¥19,500199008-199109

main82021-95474i14B..BU66..175¥19,500199109-199309

BATTERY=95D31R

main82021-95475i14B..BU78,88,91,94,96..5F¥18,000198808-199309

main82021-95476i14B..BU88,96..4FC¥19,500198808-199309

main82021-95479i14B..BU67..4FC¥18,000198808-199309

main82021-95481i14BT..BU88,9#..5F¥45,500198910-199309

main82021-95482i14BT..BU96..4FC¥45,500199001-199309

main82021-95483i14B..BU74¥45,500198910-199309

main82021-95484i14B..BU72¥45,500198910-199309

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12150i27LPG..BU68¥480199311-199505

28800FCABLE, BATTERY TO BATTERY

main90982-03006iB,11B,13BT,14B#,3B..BU6#,72,73,74,78,8#,9#¥1,840198808-199505

main90982-03010iB..BU70¥3,400198808-199505

8202

82046AWIRE SUB-ASSY, BODY GROUND, NO.1

main82046-37010iBU68..LPG¥10,500199311-199505

main82046-92612iBU70¥16,300198808-199505

82210HFUSIBLE LINK

main90982-08083iBU85,90,95¥800198808-198910

main90982-08255iBU72..DMP¥1,160198808-199505

82823DCAP, TERMINAL

main82823-22060iBU61,66,67,72,73,74,78,84,87,88,9#¥910199211-199505

main82823-95401iBU61,66,67,84,87,88,91,94,96..CBU,IV3¥1,720198808-199211

9011908827

main90119-08827¥90

9017908146

main90179-08146¥180

10 parts on this diagram · 3 diagrams in section
