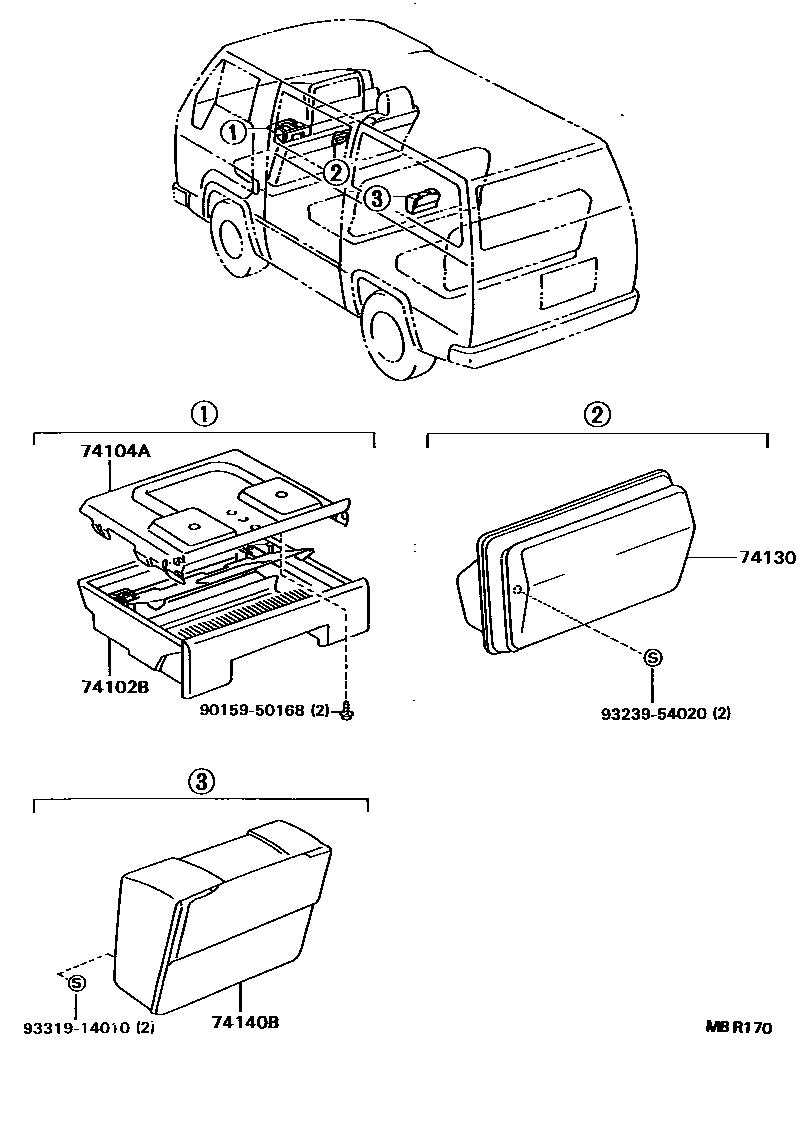

Toyota DYNA/TOYOACE — ASH RECEPTACLE

74102BBOX SUB-ASSY, FRONT ASH RECEPTACLE

main74102-95409-04iBU6#,72,74,78,8#,9#..TOY198808-199109

BLUE,TRIM8#

sub74102-95409¥2,650

main74102-95409-06iBU6#,7#,8#,9#..DYN198808-199109

BROWN,TRIM4#

sub74102-95409¥2,650

main74102-95409-B0iBU6#,7#,8#,9#199109-199505

GRAY,TRIM1#

sub74102-95409¥2,650

74104ARETAINER SUB-ASSY, FRONT ASH RECEPTACLE

main74104-26010iBU6#,7#,8#,9#¥2,230199109-199505

main74104-95406iBU6#,7#,8#,9#¥2,360198808-199204

74130RECEPTACLE ASSY, REAR ASH

main74130-95401-04iBU60,66,87..TOY..06S198808-199109

BLUE,TRIM8#

sub74130-14020¥3,250

sub74130-95401¥5,300

main74130-95401-06iBU88..DYN..06S198808-199109

BROWN,TRIM4#

sub74130-14020¥3,250

sub74130-95401¥5,300

main74130-95401-B0iBU60,66,70,73,87..(06S,09S)..(CBU,IV3)199109-199505

GRAY,TRIM1#

sub74130-14020¥3,250

sub74130-95401¥5,300

74140BRECEPTACLE ASSY, REAR ASH, NO.2

main74140-92601-01iBU70..09S198808-199109

BLACK,TRIM4#

main74140-92601-01iBU70..09S199109-199309

BLACK,TRIM1#

9015950168

main90159-50168¥120

9323954020

main93239-54020¥80

9331914010

main93319-14010¥70

7 parts on this diagram · 1 diagram in section
