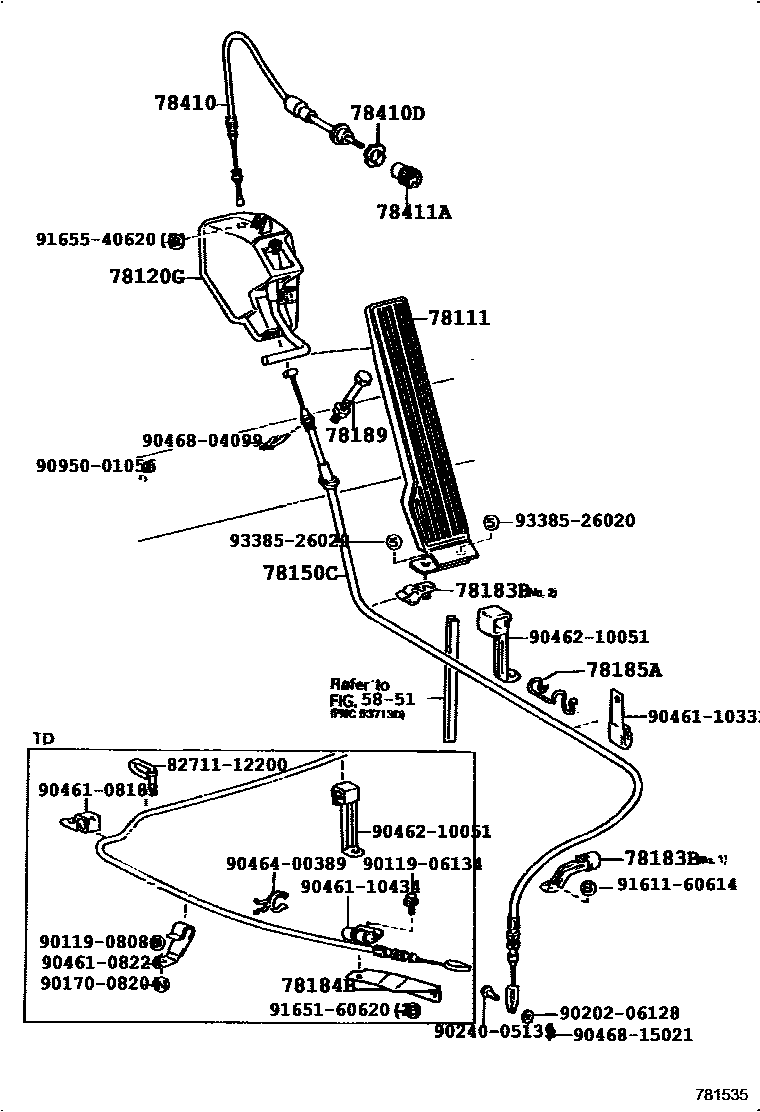

Toyota DYNA/TOYOACE — ACCELERATOR LINK

0001 1 0002 1 0003 1 0004 1

5851

78111PEDAL, ACCELERATOR

main78110-95410iBU6#,7#,8#,9#¥1,310198808-199505

78120GROD ASSY, ACCELERATOR PEDAL

main78202-95400iBU6#,70,72,73,74,83,84,87¥8,500198808-199505

main78202-95402iBU85,88,9#¥8,500198808-199505

78150CWIRE ASSY, ACCELERATOR FLEXIBLE

main78150-37050iBU60,68,70,83..DSL¥5,800199109-199505

main78150-37140iBU72,73,74¥6,000199109-199505

main78150-37150iBU88,9#..TD¥6,300199109-199505

main78150-37160iBU61,66,67,84,87¥5,400199109-199505

main78150-37170iBU78,88,9#..DSL¥6,000199109-199505

main78150-37240iBU68..LPG¥6,000199311-199505

main78150-95472iBU85,90,95¥8,000198808-198910

main78150-95478iBU61,66,67,84,87¥5,400198808-198910

main78150-95479iBU88,91,94,96¥6,100198808-198910

main78150-95483iBU60,68,70,83¥6,000198808-199109

sub78150-37050¥5,800

main78150-95484iBU72,73,74¥6,100198910-199109

sub78150-37140¥6,000

main78150-95485iBU88,9#..TD¥6,400198910-199109

sub78150-37150¥6,300

main78150-95486iBU61,66,67,84,87¥5,500198910-199109

sub78150-37160¥5,400

main78150-95487iBU78,88,9#..DSL¥6,100198910-199109

sub78150-37170¥6,000

78183BCLAMP, ACCELERATOR CONTROL CABLE

main78183-37020iBU73..06S¥400199008-199505

main78183-95406iBU85,88,9#..TD¥620198808-199505

main78183-95407iBU61,66,67,72,73,74,78,84,87,88,91,94,96..DSL¥1,080198808-199505

main78183-95408iBU72,73,74..03S¥550198910-199505

main78183-95409iBU73..06S¥450198910-199505

main78183-95409iBU73..06S¥450199008-199505

78184BBRACKET, ACCELERATOR CONTROL CABLE

main78184-37030iBU68..LPG¥3,240199311-199505

main78184-90B02iBU60,68,70,83..DSL¥2,000198808-199505

main78184-95405iBU85,90,95¥850198808-198910

78185ACLAMP, ACCELERATOR CONTROL CABLE, NO.2

main78169-95407iBU60,68,70,83..DSL¥620198808-199505

main78169-95408iBU68..LPG;BU61,66,67,84,87¥620198808-199505

78189BOLT, ACCELERATOR PEDAL STOPPER

main78208-37010iBU68..LPG¥200199311-199505

main78208-95404iBU6#,70,72,73,74,83,84,87..DSL¥330198808-199505

main78208-95405iBU78,85,88,9#¥330198808-199505

78410CABLE ASSY, THROTTLE CONTROL

main78404-95011iBU6#,7#,83,84,87,88,91,94,96¥2,360198808-199505

sub78404-37020¥2,360

78410DNUT, THROTTLE

main78314-95010iBU6#,7#,8#,9#¥140198808-199505

78411AKNOB, THROTTLE CONTROL CABLE

main78411-22010iBU6#,7#,8#,9#¥630198808-199505

8271112200WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-12200¥120

9011906134

main90119-06134¥140

9011908086

main90119-08086¥630

9017008204

main90170-08204¥170

9020206128

main90202-06128¥240

9024005139

main90240-05139¥190

9046108183

main90461-08183¥390

9046108226

main90461-08226¥530

9046110331

main90461-10331¥540

9046110434

main90461-10434¥340

9046210051

main90462-10051¥580

9046400389

main90464-00389¥270

9046804099

main90468-04099¥160

9046815021

main90468-15021¥130

9095001056

main90950-01056¥230

9161160614

main91611-60614¥180

9165160620

main91651-60620¥80

9165540620

main91655-40620¥120

9338526020

main93385-26020¥90

30 parts on this diagram · 4 diagrams in section
