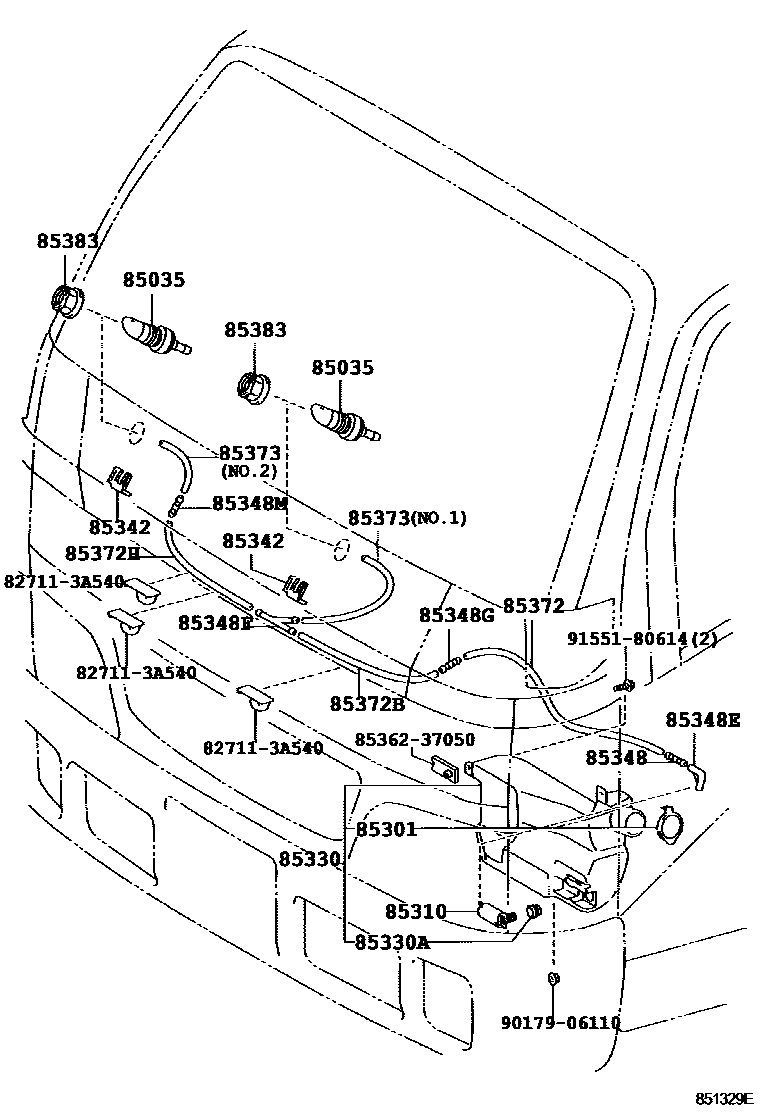

Toyota DYNA/TOYOACE HV — WINDSHIELD WASHER

85035NOZZLE SUB-ASSY, WASHER

main85381-37020iXKU414,424¥1,850200310-200610

85301INLET SUB-ASSY, WASHER

main85301-17010iXKU414,424¥0200310-200610

85310MOTOR AND PUMP ASSY, WINDSHIELD WASHER

main85310-90B00iXKU414,424200310-200610

85330JAR ASSY, WINDSHIELD WASHER

main85315-37090iXKU414,424¥6,500200310-200610

85330ABUSH, WINDSHIELD WASHER JAR

main90099-32089iXKU414,424200310-200610

85342HOLDER, WASHER NOZZLE

main85342-95J01iXKU414,424¥440200310-200610

85348JOINT, WINDSHIELD WASHER HOSE, NO.1

main85349-89122iXKU414,424200310-200610

85348EJOINT, WINDSHIELD WASHER ELBOW, NO.2

main85355-14481iXKU414,424¥0200310-200610

85348FJOINT, WINDSHIELD WASHER ELBOW, NO.3

main85375-28110iXKU414,424¥210200310-200610

85348GJOINT, WINDSHIELD WASHER HOSE, NO.2

main85349-89122iXKU414,424200310-200610

85348MJOINT, WINDSHIELD WASHER HOSE, NO.3

main85349-89122iXKU414,424200310-200610

85372HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1

main90446-07001iXKU414,424200310-200610

85372BHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2

main90099-33080iXKU414,424200310-200610

85372HHOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.3

main90446-06013iXKU414,424200310-200610

85373HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE)

main90099-33080iXKU414,424200310-200610

85383HOLDER, FRONT WASHER NOZZLE

main85383-37010iXKU414,424¥270200310-200610

827113A540WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-3A540¥90

8536237050BRACKET, WASHER, NO.2

main85362-37050¥120

9017906110

main90179-06110¥90

9155180614

main91551-80614¥60

20 parts on this diagram · 1 diagram in section
