Toyota DYNA/TOYOACE HV — PARTIAL ENGINE ASSEMBLY

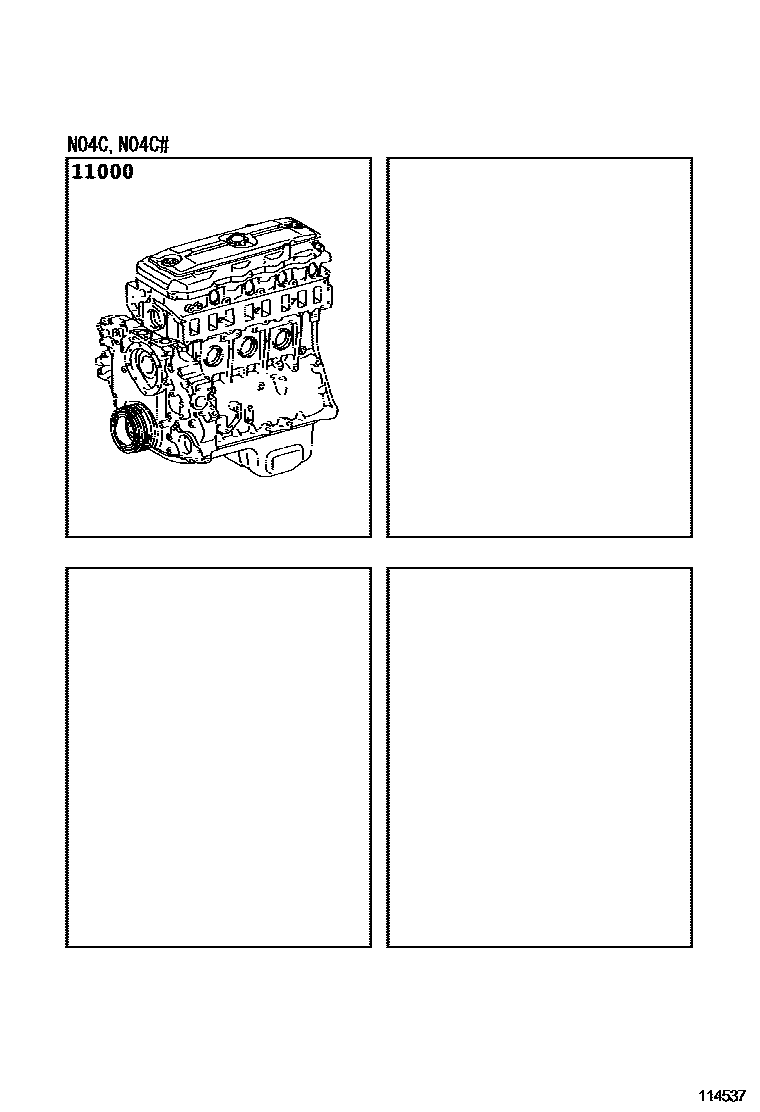

11000ENGINE ASSY, PARTIAL

main19000-78A60iN04C..XKU414,424..6F¥1,033,000200610-201008

main19000-78A80iN04C..XKU414..6FC¥1,033,000200801-201106

sub19000-7CR00¥1,033,000

main19000-78B30iN04C..XKU414,424..6F¥1,033,000200908-201008

������

main19000-78D60iN04C..XKU414,424..6F¥1,033,000201008-201106

sub19000-78K90¥1,033,000

main19000-78D70iN04C..XKU414,424..6F¥1,033,000201008-201106

������

sub19000-78K90¥1,033,000

main19000-7C190iN04C..XKU414,424¥1,033,000200310-200610

1 parts on this diagram · 1 diagram in section
