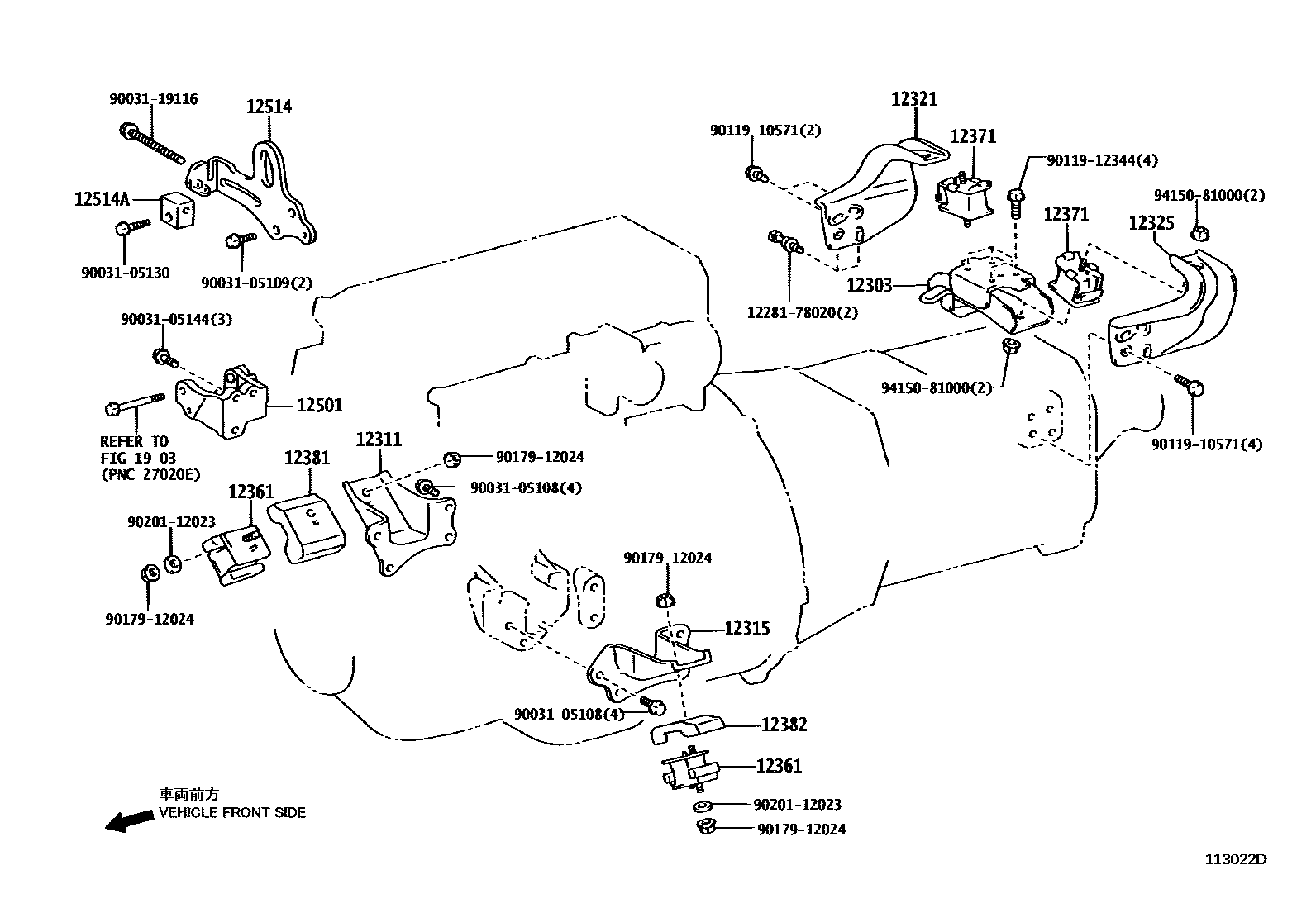

Toyota DYNA/TOYOACE HV — MOUNTING

0001 1 0002 1

12303BRACKET SUB-ASSY, ENGINE MOUNTING, REAR

main12303-78010iN04C..XKU414,424..6F¥3,950200610-201106

sub12303-78011¥3,650

main12303-78030iN04C..XKU414..6FC¥4,210200310-201106

sub12303-78031¥3,890

12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH

main12311-78050iN04C..XKU414,424¥5,500200610

subS1231-11950

main12311-78060iN04C..XKU414,424¥17,100200310-200610

subS1231-11970¥9,900

12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH

main12315-78040iN04C..XKU414,424¥17,100200310-200610

subS1231-51960¥9,900

main12315-78050iN04C..XKU414,424¥5,500200610

subS1231-52000¥7,400

12321BRACKET, ENGINE MOUNTING, REAR, NO.1

main12321-78140iN04C..XKU414,424¥8,400200310-200610

main12321-78490iN04C..XKU414,424..6F¥9,000200610-201106

main12321-78540iN04C..XKU414..6FC¥7,000200801-201106

12325BRACKET, ENGINE MOUNTING, NO.3

main12325-78120iN04C..XKU414,424¥8,400200310-200610

main12325-78460iN04C..XKU414,424..6F¥9,000200610-201106

main12325-78510iN04C..XKU414..6FC¥7,000200801-201106

12361INSULATOR, ENGINE MOUNTING, FRONT

main12361-58130iN04C..XKU414,424¥7,200200310-201106

sub12361-58131¥4,480

12371INSULATOR, ENGINE MOUNTING, REAR NO.1

main12371-78010iN04C..XKU414,424¥3,100200310-201106

sub12371-78060¥2,200

12381STABILIZER, ENGINE MOUNTING

main12381-78030iN04C..XKU414,424¥3,400200310-200610

sub12381-78032¥1,820

main12381-78040iN04C..XKU414,424¥2,220200610

12382STABILIZER, ENGINE MOUNTING, LH

main12381-78030iN04C..XKU414,424¥3,400200310-200610

sub12381-78032¥1,820

main12381-78040iN04C..XKU414,424¥2,220200610

12501BRACKET SUB-ASSY, ALTERNATOR

main12501-78071iN04C..XKU414,424¥12,200200310-200407

main12501-78130iN04C..XKU414,424¥12,400200407-200610

sub12511-E0580¥7,100

main12511-78120iN04C..XKU414,424¥2,340200610-201007

sub12511-78121¥2,340

main12511-78121iN04C..XKU414,424¥2,340201007-201103

sub12511-E0021¥7,700

12514BAR, ALTERNATOR BELT ADJUSTING

main12514-78082iN04C..XKU414,424¥10,300200310-200610

main12514-78150iN04C..XKU414,424¥10,600200610-201010

subS1205-E0020¥6,500

main12514-78270iN04C..XKU414,424¥10,400201010

subS1205-E0390¥7,100

12514ASLIDER, FAN BELT ADJUSTING

main12519-78020iN04C..XKU414,424¥1,860200310-200610

sub12519-E0010¥1,430

main12519-78020iN04C..XKU414,424¥1,860200610-201010

sub12519-E0010¥1,430

main12519-78050iN04C..XKU414,424¥1,170201010

1903

1228178020HANGER, ENGINE, NO.1

main12281-78020¥300

9003105108

main90031-05108¥170

9003105109

main90031-05109¥190

9003105130

main90031-05130¥100

9003105144

main90031-05144¥200

9003119116

main90031-19116¥160

9011910571

main90119-10571¥120

9011912344

main90119-12344¥310

9017912024

main90179-12024¥100

9020112023

main90201-12023¥370

9415081000

main94150-81000¥100

24 parts on this diagram · 2 diagrams in section
