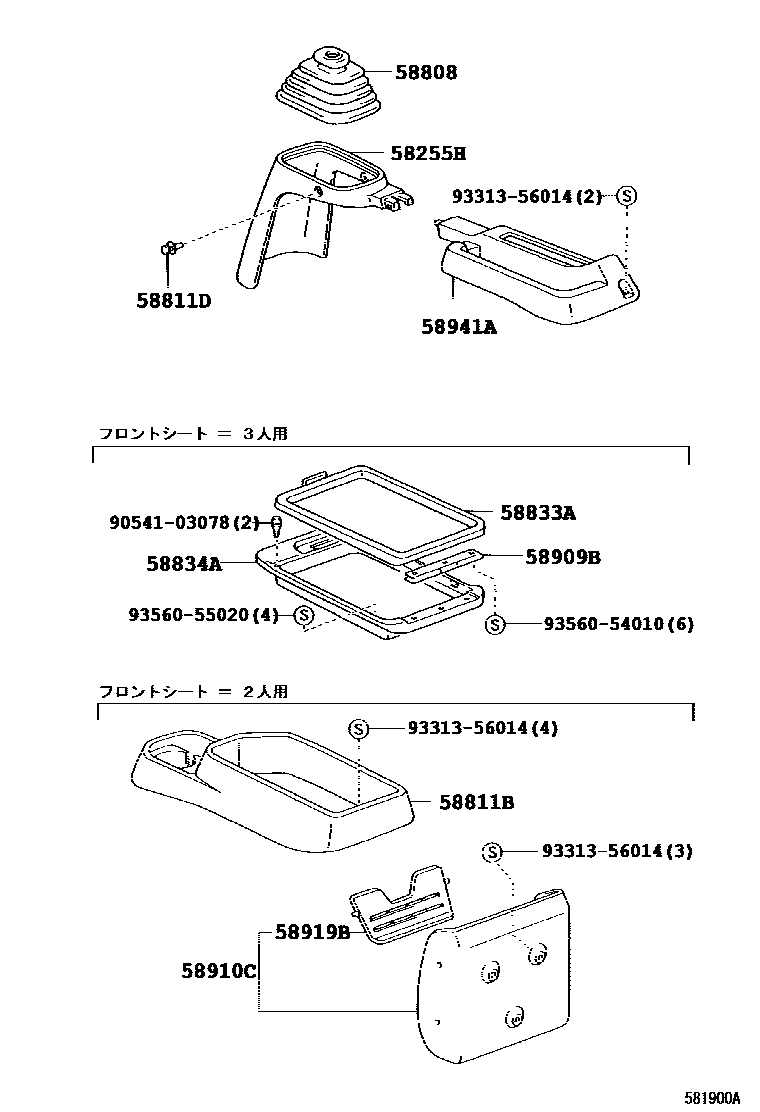

Toyota DYNA/TOYOACE HV — CONSOLE BOX & BRACKET

0001 1 0002 1

58255HCOVER, SHIFT LEVER BOOT

main58255-37020-B0iXKU414,424200310-200909

DK.CHARCOAL,TRIM1#

sub58255-37021¥4,700

main58255-37021-B0iXKU414,424..6F200910-201106

DK.CHARCOAL,TRIM1#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-37020-B0iXKU414,424200310-200909

DK.CHARCOAL,TRIM1#

sub58808-37021¥5,300

main58808-37021-B0iXKU414,424..6F200909-201106

DK.CHARCOAL,TRIM1#

58811BBOX, CONSOLE

main58811-37040-B0iXKU414,424200310-200909

MD.CHARCOAL,TRIM1#

sub58811-37041¥23,200

main58811-37041iXKU414..DCRTJ¥23,200200910-200911

sub58811-37042¥13,400

main58811-37041-B0iXKU414,424..DCRUE200910-201106

MD.CHARCOAL,TRIM1#

sub58811-37042¥13,400

main58811-37060-B0iXKU414..6FC200801-201106

DK.CHARCOAL,TRIM1#

58811DCLIP(FOR CONSOLE BOX)

main90467-07191-B0iXKU414,424..6F200310-201106

DK.CHARCOAL,TRIM1#

sub90467-07191¥130

58833ACOVER, CONSOLE, UPPER

main58833-37040-B0iXKU414,424200310-200909

MD.CHARCOAL,TRIM1#

sub58833-37041¥7,400

main58833-37041iXKU414..DCRTJ¥7,400200910-200911

main58833-37041-B0iXKU414,424..DCRUE200910-201106

MD.CHARCOAL,TRIM1#

58834ACOVER, CONSOLE, LOWER

main58834-37030-B0iXKU414,424200310-200909

MD.CHARCOAL,TRIM1#

sub58834-37031¥8,700

main58834-37031iXKU414..DCRTJ¥8,700200910-200911

main58834-37031-B0iXKU414,424..DCRUE200910-201106

MD.CHARCOAL,TRIM1#

58909BRETAINER SUB-ASSY, CONSOLE COMPARTMENT

main58909-37020iXKU414,424¥710200310-200610

58910CBOX ASSY, CONSOLE, REAR

main58910-37010-B1iXKU414,424200310-201106

MD.CHARCOAL,TRIM1#

58919BPLATE, CONSOLE BOX

main58919-37030-B1iXKU414,424200310-201106

MD.CHARCOAL,TRIM1#

main58919-37040iXKU414..6FC¥610200801-201106

58941ACOVER, PARKING BRAKE HOLE

main58941-37030-B0iXKU414,424200310-200610

DK.CHARCOAL,TRIM1#

main58941-37060-B0iXKU414,424200610-201106

DK.CHARCOAL,TRIM1#

9054103078

main90541-03078¥120

9331356014

main93313-56014¥60

9356054010

main93560-54010¥70

9356055020

main93560-55020¥120

14 parts on this diagram · 2 diagrams in section
