Toyota DYNA HV — V-BELT

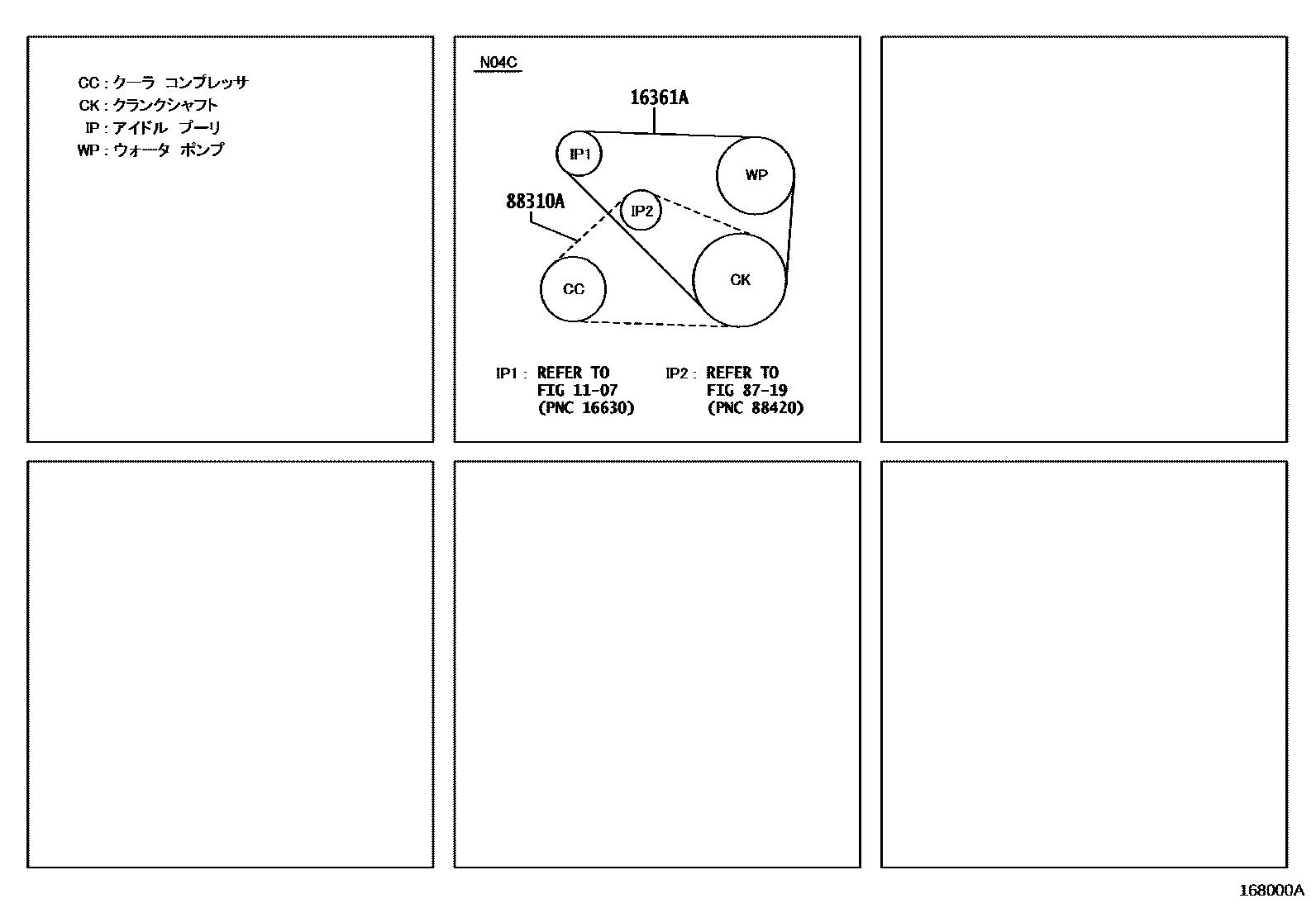

Parts diagram

1107

16361ABELT, V(FOR FAN & ALTERNATOR)

main90916-02773i¥6,000202103

8719

88310ABELT, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1

mainS883811440i202103

4 parts on this diagram · 1 diagram in section
