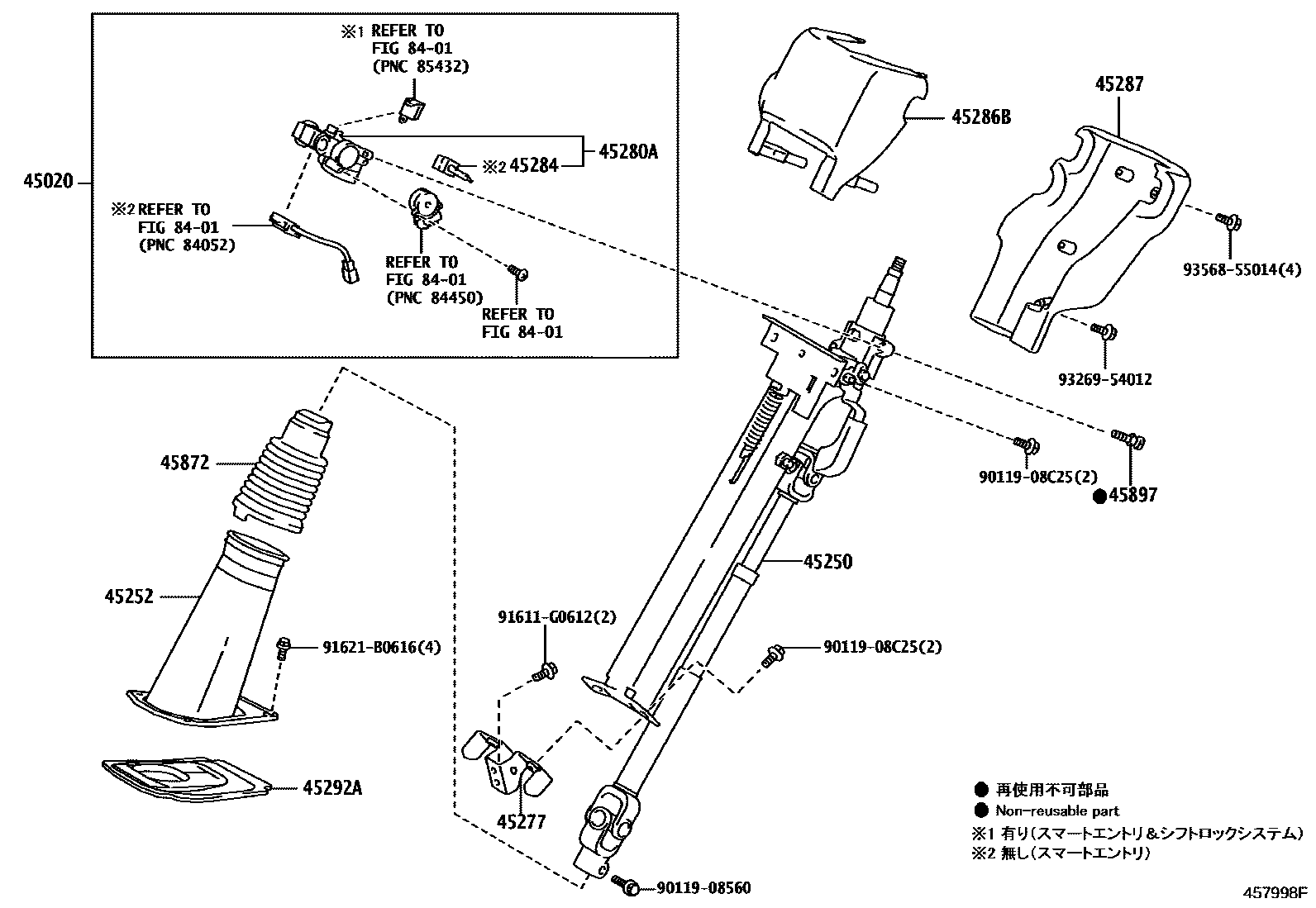

Toyota DYNA HV — STEERING COLUMN & SHAFT

0001 1 0002 1

45020BRACKET ASSY, STEERING COLUMN UPPER W/SWITCH

main45020-37200iXKC605,XKU605,645,655202103

45250COLUMN ASSY, STEERING

main45250-37F00-C0iXKC605,XKU605,645,655202103

BLACK,TRIM1#

45252TUBE, STEERING COLUMN, LOWER

main45252-37050-C0iXKC605,XKU605,645,655202103

BLACK,TRIM1#

45277PLATE, STEERING COLUMN UPPER ATTACHMENT

main45277-37020iXKC605,XKU605,645,655¥1,150202103

45280ABRACKET ASSY, STEERING COLUMN, UPPER

main45280-37150iXKC605,XKU605,645,655¥5,700202103

45284SHAFT, STEERING LOCK CAM

main45284-37020iXKC605,XKU605,645,655¥1,060202103

45286BCOVER, STEERING COLUMN, UPR

main45286-37130-C0iXKC605,XKU605,645,655202103

BLACK,TRIM1#

45287COVER, STEERING COLUMN, LWR

main45287-37120-C0iXKC605,XKU605,645,655202103

BLACK,TRIM1#

45292ACOVER, MAIN SHAFT LOWER DUST

main45292-37030iXKC605,XKU605,645,655¥1,020202103

45872COVER, STEERING COLUMN TUBE

main45872-37020iXKC605,XKU605,645,655¥1,320202103

45897BOLT, STEERING LOCK SET

main45897-E0020iXKC605,XKU605,645,655¥190202103

8401

9011908560

main90119-08560¥110

9011908C25

main90119-08C25¥80

91611G0612

main91611-G0612¥70

91621B0616

main91621-B0616¥100

9326954012

main93269-54012¥70

9356855014

main93568-55014¥70

18 parts on this diagram · 2 diagrams in section
