Toyota DYNA HV — SHORT BLOCK ASSEMBLY

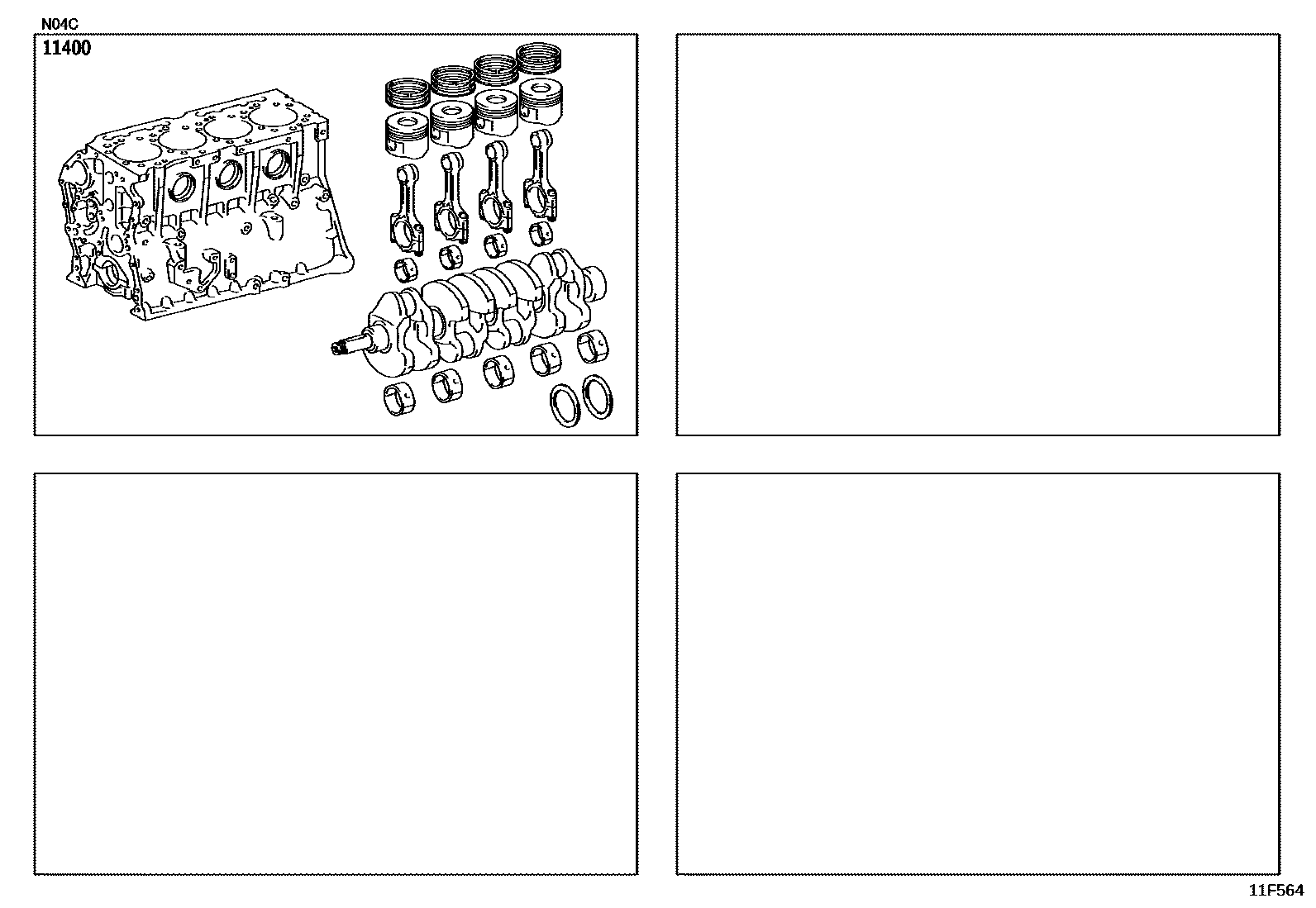

Parts diagram

11400BLOCK ASSY, SHORT

main11400-78B51i¥344,000202103-202310

sub11400-7C100¥344,000

main11400-7C100i¥344,000202310

1 parts on this diagram · 1 diagram in section
