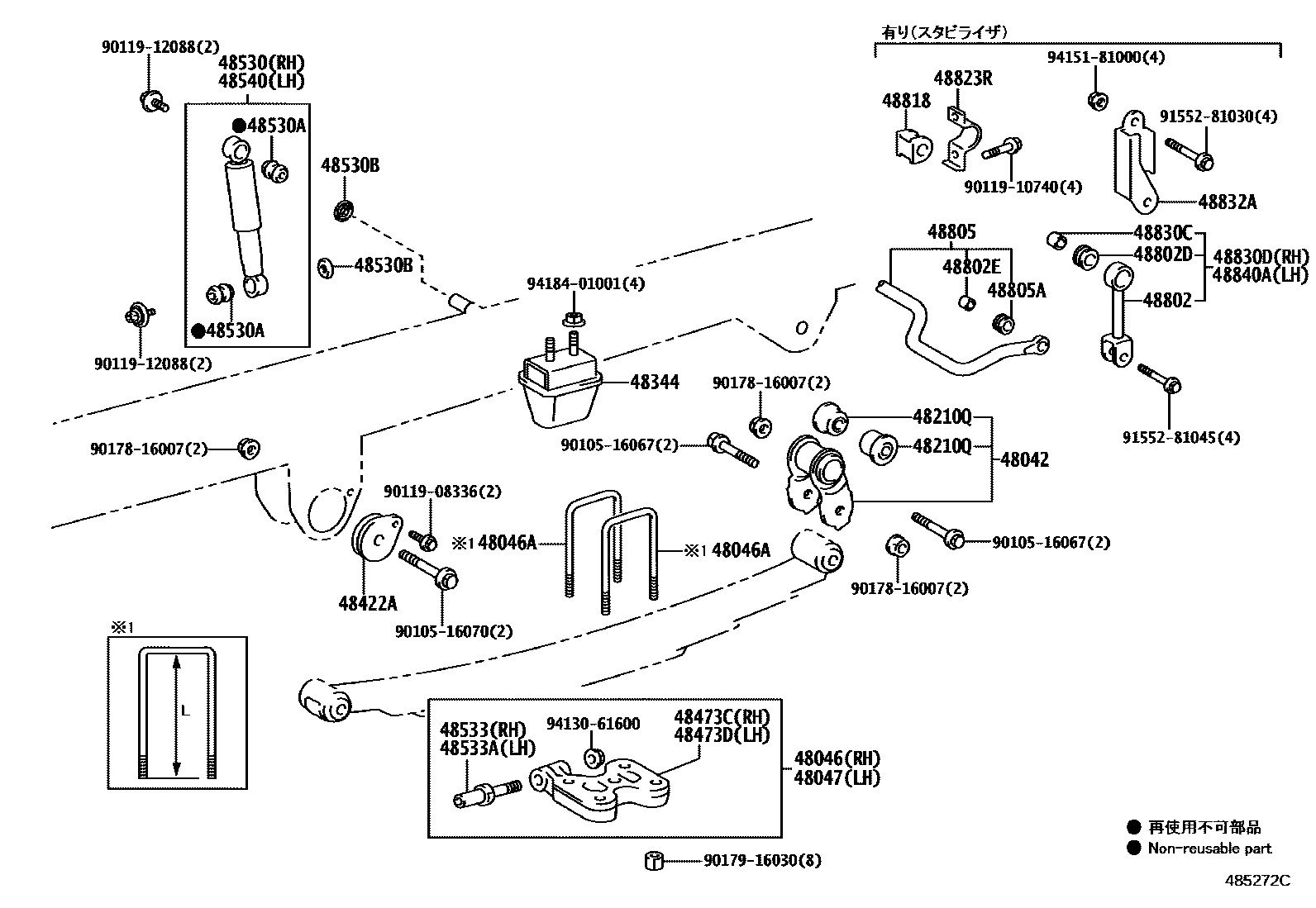

Toyota DYNA HV — REAR SPRING & SHOCK ABSORBER

0001 1 0002 1 0003 1MAIN 2+HELPER 1-LEAF,TYPE B 0004 1MAIN 2+HELPER 1-LEAF,TYPE C 0005 1MAIN 2+HELPER 1-LEAF,TYPE E 0006 1MAIN 2+HELPER 2-LEAF,TYPE B 0007 13-LEAF,TYPE B

48042SHACKLE SUB-ASSY, REAR SPRING, NO.2

main48042-37020iXKC605,XKU605,645,655¥5,200202103

48046SEAT SUB-ASSY, SPRING U BOLT, RH

main48046-37080iXKC605,XKU605¥4,510202103

main48473-37180iXKU645,655¥5,800202103

48046ABOLT, U(FOR REAR SPRING)

main90117-16018iXKU645,655..30T¥1,750202103

main90117-16067iXKU605..IV5¥1,520202103

main90117-16069iXKC605,XKU605..T4¥1,450202103

main90117-16142iXKU655..20T¥1,920202103

48047SEAT SUB-ASSY, SPRING U BOLT, LH

main48047-37080iXKC605,XKU605¥4,510202103

main48473-37180iXKU645,655¥5,800202103

48210SPRING ASSY, REAR RH

main48210-37Q40iXKU655..20T¥44,000202103

main48210-37Q70iXKU645,655..30T¥54,000202103

main48210-37S70iXKC605,XKU605..T4..20T¥45,000202103

main48210-37T60iXKU605..30T¥43,000202103

main48210-37U10iXKU605..IV5¥65,000202103

48210QBUSH(FOR REAR SPRING SHACKLE)

main90389-16026iXKC605,XKU605,645,655¥740202103

48344STOPPER, BUMPER, REAR

main48344-37050iXKU605..30T;XKU605..IV5¥2,640202103

main48344-37090iXKU655..20T¥3,740202103

main48344-37170iXKC605,XKU605..T4..20T¥3,250202103

main48344-37200iXKU645,655..30T¥3,740202103

48422ASUPPORT, REAR SPRING PIN

main48422-36090iXKC605,XKU605¥460202103

48473CSEAT, REAR SPRING U BOLT, RH

main48473-37090iXKC605,XKU605¥9,000202103

48473DSEAT, REAR SPRING U BOLT, LH

main48474-37060iXKC605,XKU605¥9,000202103

48530ABSORBER ASSY, SHOCK, REAR RH

main48531-80795iXKU605..30T;XKU605..IV5¥4,190202103

main48531-80800iXKC605,XKU605..T4..20T¥4,190202103

main48531-80833iXKU645,655¥6,800202103

48530ABUSH(FOR REAR SHOCK ABSORBER)

main90385-19011iXKC605,XKU605,645,655¥440202103

48530BWASHER, REAR SHOCK ABSORBER CUSHION, NO.1

main90948-03011iXKC605,XKU605,645,655¥130202103

48533PIN, REAR SHOCK ABSORBER LOWER PIVOT, RH

main48522-37030iXKC605,XKU605¥1,450202103

48533APIN, REAR SHOCK ABSORBER LOWER PIVOT, LH

main48522-37030iXKC605,XKU605¥1,450202103

48540ABSORBER ASSY, SHOCK, REAR LH

main48531-80795iXKU605..30T;XKU605..IV5¥4,190202103

main48531-80800iXKC605,XKU605..T4..20T¥4,190202103

main48531-80833iXKU645,655¥6,800202103

48802LINK SUB-ASSY, STABILIZER

main48802-37010iXKU605..30T;XKU605..IV5¥680202103

48802DBUSH, STABILIZER LINK

main90385-13009iXKU605..30T;XKU605..IV5¥200202103

48802ESPACER(FOR REAR STABILIZER BAR)

main90560-10044iXKU605..30T;XKU605..IV5¥130202103

48805BAR SUB-ASSY, REAR STABILIZER

main48805-37030iXKU605..30T;XKU605..IV5¥10,100202103

48805ABUSH(FOR REAR STABILIZER BAR)

main90385-13009iXKU605..30T;XKU605..IV5¥200202103

48818BUSH, STABILIZER, REAR

main48815-37060iXKU605..30T;XKU605..IV5¥750202103

48823RCOVER, STABILIZER LINK(FOR REAR)

main48823-37011iXKU605..30T;XKU605..IV5¥1,320202103

48830CSPACER(FOR REAR STABILIZER LINK)

main90560-10044iXKU605..30T;XKU605..IV5¥130202103

48830DLINK ASSY, REAR STABILIZER, RH

main48830-37010iXKU605..30T;XKU605..IV5¥890202103

48832ABRACKET, REAR STABILIZER BAR, NO.1

main48832-37020iXKU605..30T;XKU605..IV5¥430202103

48840ALINK ASSY, REAR STABILIZER, LH

main48830-37010iXKU605..30T;XKU605..IV5¥890202103

9010516067

main90105-16067¥780

9010516070

main90105-16070¥610

9011908336

main90119-08336¥160

9011910740

main90119-10740¥100

9011912088

main90119-12088¥190

9017816007

main90178-16007¥160

9017916030

main90179-16030¥190

9155281030

main91552-81030¥100

9155281045

main91552-81045¥120

9413061600

main94130-61600¥120

9415181000

main94151-81000¥100

9418401001

main94184-01001¥160

39 parts on this diagram · 7 diagrams in section
