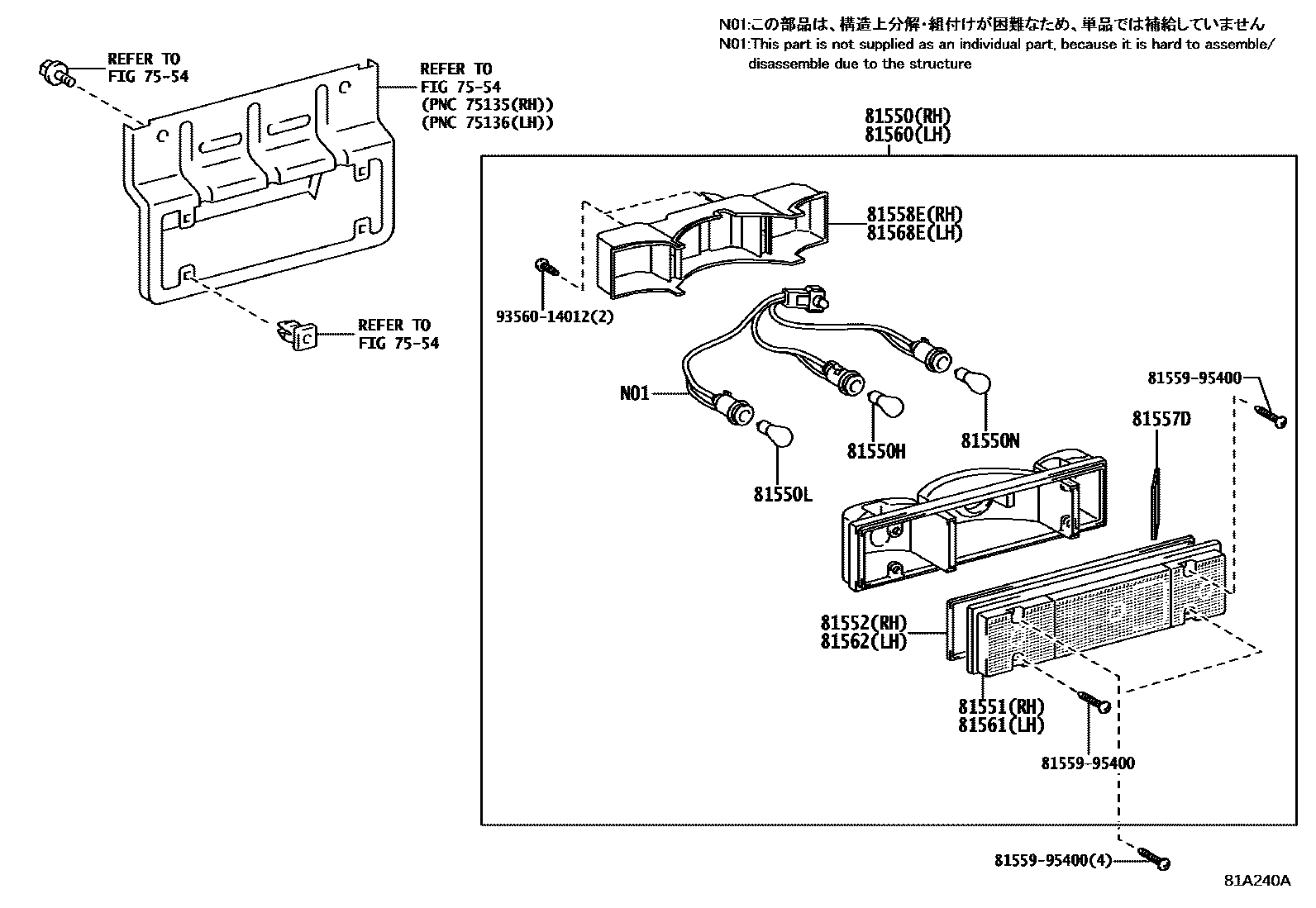

Toyota DYNA HV — REAR COMBINATION LAMP

7554

81550LAMP ASSY, REAR COMBINATION, RH

main81550-37240iXKC605,XKU605,655..CBU¥7,600202103

main81550-37260iXKC605,XKU605,645,655..IV3,IV5¥7,600202103

81550HBULB, TAIL & STOP LAMP

main90981-16015iXKC605,XKU605,645,655¥350202103

81550LBULB, REAR TURN SIGNAL LAMP

main90981-16014iXKC605,XKU605,645,655¥270202103

81550NBULB, BACK UP LAMP

main90981-16014iXKC605,XKU605,645,655¥270202103

81551LENS, REAR COMBINATION LAMP, RH

main81551-60442iXKC605,XKU605,645,655¥1,970202103

81552GASKET, REAR COMBINATION LAMP LENS, RH

main81552-95400iXKC605,XKU605,645,655¥510202103

81557DREFLECTOR, REAR COMBINATION LAMP

main81557-95403iXKC605,XKU605,645,655¥590202103

81558ECOVER, REAR COMBINATION LAMP, RH

main81558-27070iXKC605,XKU605,645,655¥1,980202103

81560LAMP ASSY, REAR COMBINATION, LH

main81560-37240iXKC605,XKU605,655..CBU¥7,600202103

main81560-37270iXKC605,XKU605,645,655..IV3,IV5¥7,600202103

81561LENS, REAR COMBINATION LAMP, LH

main81561-60372iXKC605,XKU605,645,655¥1,970202103

81562GASKET, REAR COMBINATION LAMP LENS, LH

main81552-95400iXKC605,XKU605,645,655¥510202103

81568ECOVER, REAR COMBINATION LAMP, LH

main81568-27040iXKC605,XKU605,645,655¥1,980202103

8155995400MOULDING, REAR COMBINATION LAMP, RH

main81559-95400¥120

9356014012

main93560-14012¥70

15 parts on this diagram · 1 diagram in section
