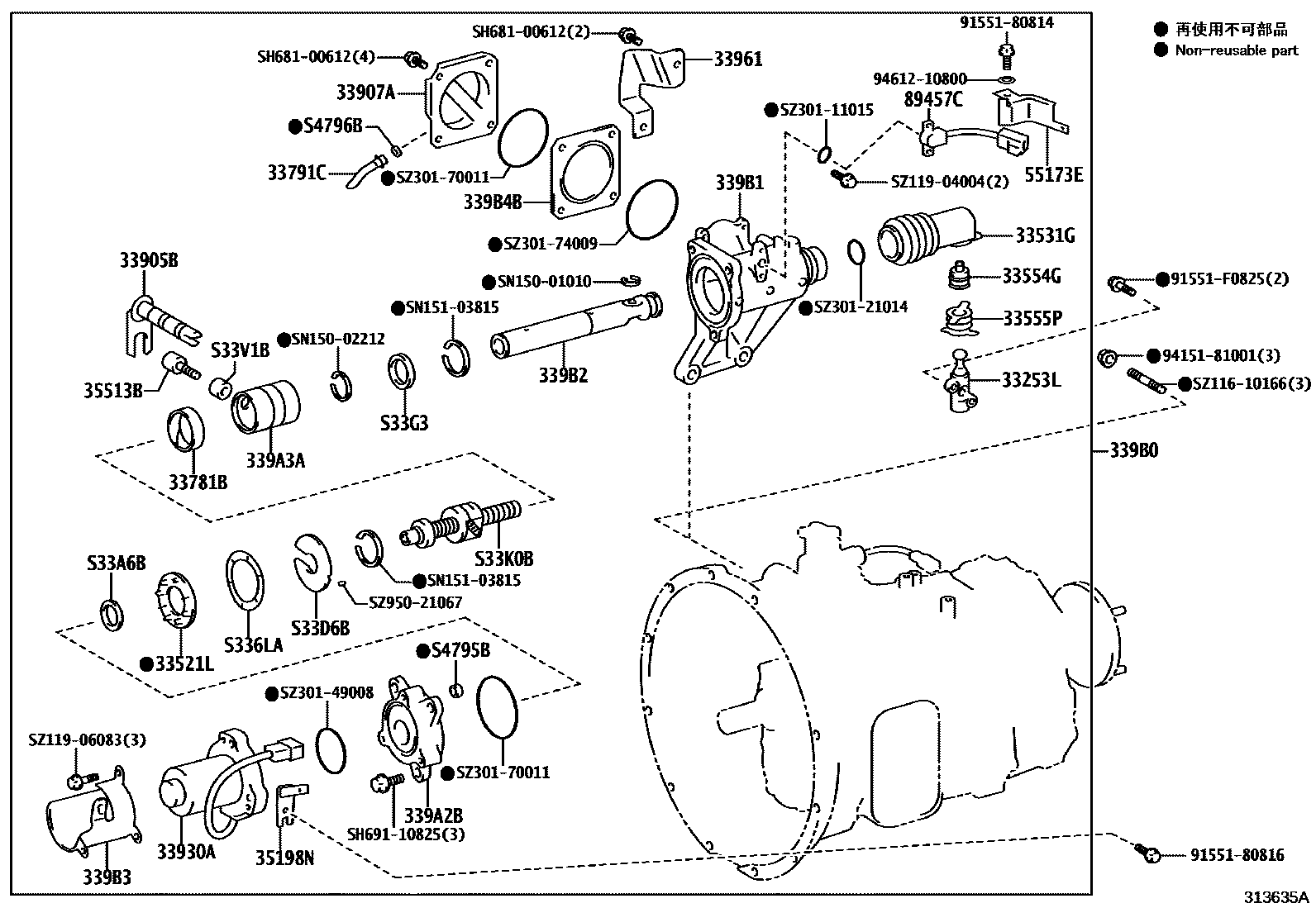

Toyota DYNA HV — PUMP & ACTUATOR, SEQUENTIAL OR MULTI-MODE MANUAL TRANSAXLE
33253LLEVER, SELECT, OUTER
33521LPLATE, SELECT LEVER
33531GBOOT, DUST
33554GCAP, SELECT LEVER
33555PBOOT, SELECT LEVER, NO.3
33781BGUIDE, SELECTING ROD
33791CTUBE, GEAR SELECTING
33905BLEVER SUB-ASSY, SELECT ACTUATOR SENSOR
33907COVER SUB-ASSY, TRANSMISSION ACTUATOR
33907ACOVER SUB-ASSY, TRANSMISSION ACTUATOR
33930MOTOR ASSY, TRANS ACTUATOR SHIFT
33930AMOTOR ASSY, TRANS ACTUATOR SELECT
33961COVER, SEQUENTIAL TRANSMISSION ACTUATOR
339A2BHOUSING, SELECT ACTUATOR BEARING
339A3HOLDER, TRANSMISSION ACTUATOR
339A3AHOLDER, TRANSMISSION ACTUATOR
339B0ACTUATOR ASSY, TRANSMISSION SELECT
339B1CYLINDER, TRANS ACTUATOR SELECT
339B2ROD, TRANSMISSION ACTUATOR SELECT
339B3COVER, TRANS ACTUATOR MOTOR
339B4BCOVER, SELECT ACTUATOR CYLINDER
35198NBRACKET, WIRE HARNESS CLAMP
35513BBOLT, SELECT CONTROL ACTUATOR
55173EBRACKET, ELECTRICAL PART
89457CSTROKE SENSOR, SELECT
S336LAWASHER, SELECT LEVER PRESSURE SPRING
S33A6BBUSH, SELECT ACTUATOR CONTROL NO.2
S33D6BCOVER, SELECT ACTUATOR BEARING HOUSING
S33G3WASHER, TRANSMISSION CONTROL
S33K0BSCREW ASSY, SELECT BALL
S33V1BSPACER, SELECT ACTUATOR SENSOR
S4795BFILTER, SELECT ACTUATOR
S4796BFILTER ASSY, SELECT ACTUATOR
9155180814
9155180816
91551F0825
9415181001
9461210800
SH68100612
SH69110825
SN15001010
mainSN150-01010
SN15002212
mainSN150-02212
SN15103815
SZ11610166
mainSZ116-10166
SZ11904004
mainSZ119-04004
SZ11906083
mainSZ119-06083
SZ30111015
SZ30121014
mainSZ301-21014
SZ30149008
SZ30170011
SZ30174009
mainSZ301-74009
SZ95021067
mainSZ950-21067
52 parts on this diagram · 2 diagrams in section
