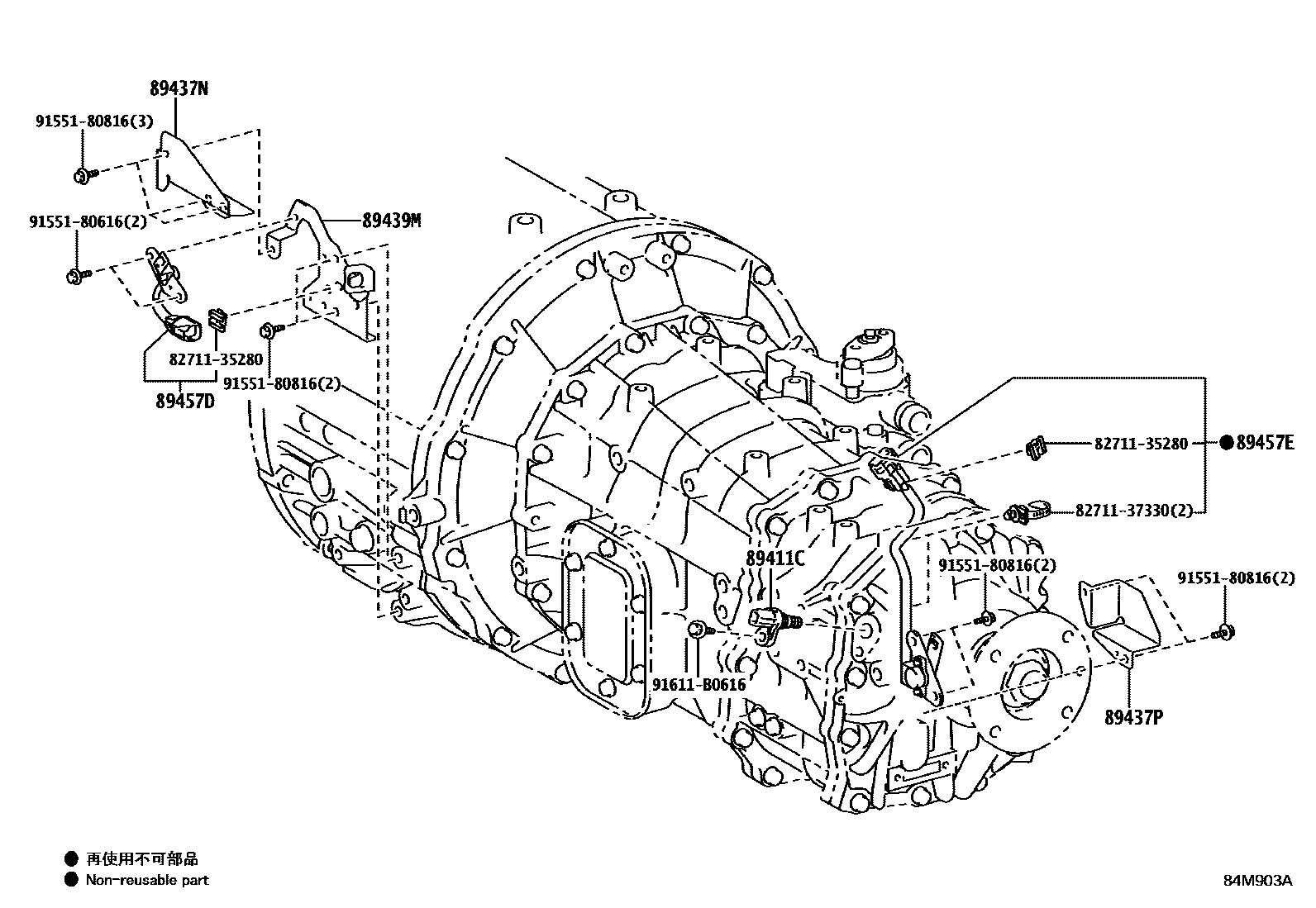

Toyota DYNA HV — OVERDRIVE & ELECTRONIC CONTROLLED TRANSMISSION

89411CSENSOR, SPEED

main89411-37020iXKC605,XKU605,645,655¥4,350202103

89437NCOVER, SENSOR, NO.1

main89437-37030iXKC605,XKU605,645,655¥1,050202103

89437PCOVER, SENSOR, NO.2

main89437-37040iXKC605,XKU605,645,655¥970202103

89439MBRACKET, SENSOR, NO.1

main89439-37500iXKC605,XKU605,645,655¥2,300202103

89457DSENSOR, TRANSMISSION STROKE, NO.1

main89457-37020iXKC605,XKU605,645,655¥8,400202103

89457ESENSOR, TRANSMISSION STROKE, NO.2

main89457-37030iXKC605,XKU605,645,655¥10,500202103

8271135280WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-35280¥90

8271137330WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-37330¥270

9155180616

main91551-80616¥60

9155180816

main91551-80816¥80

91611B0616

main91611-B0616¥110

11 parts on this diagram · 1 diagram in section
