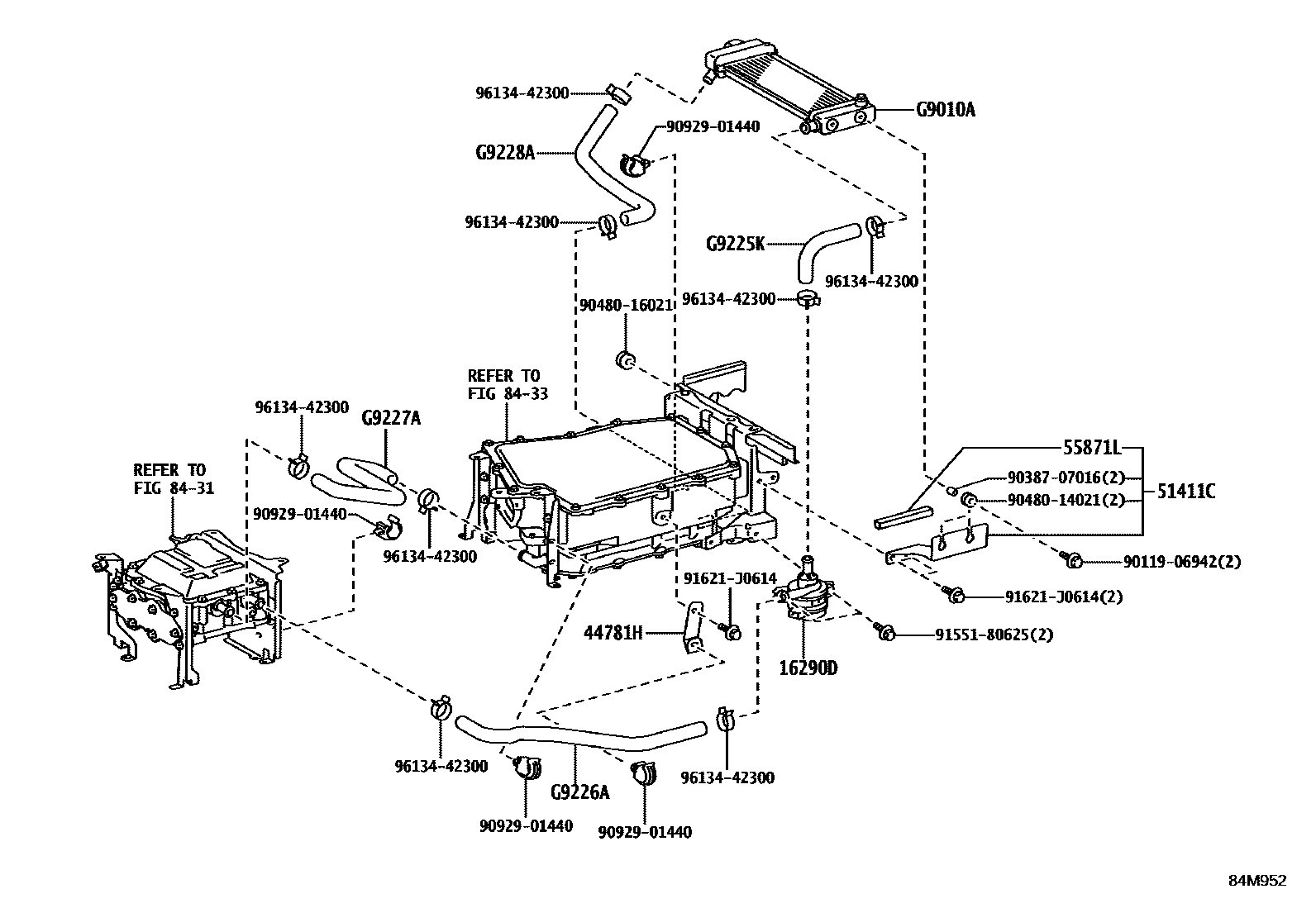

Toyota DYNA HV — INVERTER COOLING

16290DPUMP ASSY, WATER W/MOTOR

mainG9040E0010iN04C..XKC605,XKU605,645,655202103

44781HBRACKET, HOSE CLAMP

main44781-37220iXKC605,XKU605,645,655¥460202103

51411CBRACKET, RADIATOR SUPPORT

main51411-37070iXKC605,XKU605,645,655¥870202103

55871LSEAL, AIR DUCT

main55871-37290iXKC605,XKU605,645,655¥250202103

8431

8433

G9010ARADIATOR ASSY

mainG901037020iXKC605,XKU605,645,655202103

G9225KHOSE, INVERTER COOLING, NO.1

mainG922537030iXKC605,XKU605,645,655202103

G9226AHOSE, INVERTER COOLING, NO.2

mainG922637030iXKC605,XKU605,645,655202103

G9227AHOSE, INVERTER COOLING, NO.3

mainG922737050iXKC605,XKU605,645,655202103

G9228AHOSE, INVERTER COOLING, NO.4

mainG922837030iXKC605,XKU605,645,655202103

9011906942

main90119-06942¥60

9038707016

main90387-07016¥90

9048014021

main90480-14021¥120

9048016021

main90480-16021¥130

9092901440

main90929-01440¥190

9155180625

main91551-80625¥60

91621J0614

main91621-J0614¥110

9613442300

main96134-42300¥90

19 parts on this diagram · 1 diagram in section
