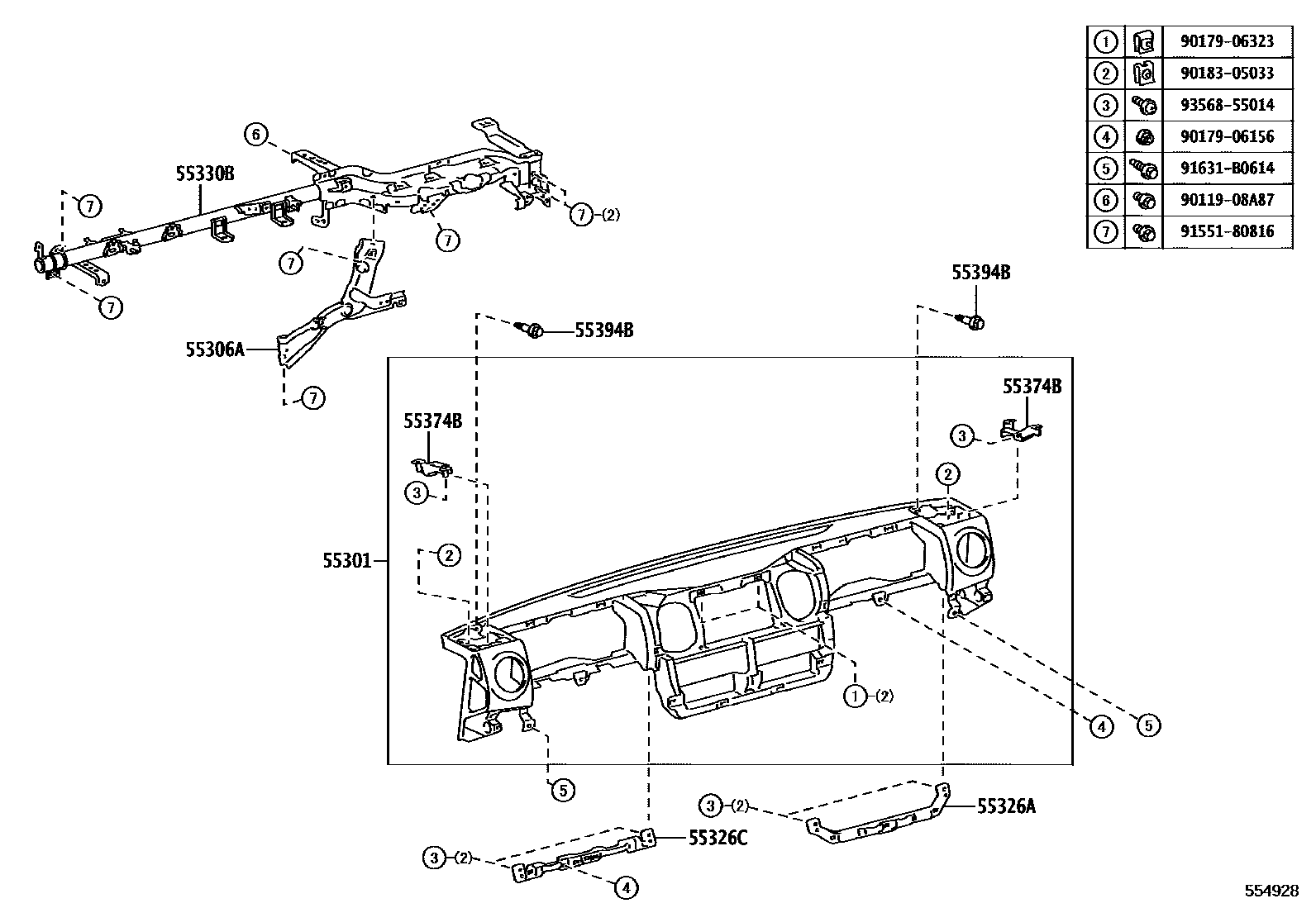

Toyota DYNA HV — INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1

55301PANEL SUB-ASSY, INSTRUMENT

main55301-37090-C0iXKC605,XKU605,645,655202103-202310

BLACK,TRIM1#

main55301-37110-C0iXKC605,XKU605,645,655202310

BLACK,TRIM1#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-37073iXKC605,XKU605,645,655¥3,050202103-202409

sub55306-37074¥3,050

main55306-37074iXKC605,XKU605,645,655¥3,050202410

55326ASTAY, INSTRUMENT PANEL, NO.1

main55429-37010iXKC605,XKU605,645,655¥1,090202103

55326CSTAY, INSTRUMENT PANEL, NO.2

main55429-37020iXKC605,XKU605,645,655¥710202103

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-37220iXKC605,XKU605,645,655¥13,500202103

55374BBRACKET, INSTRUMENT PANEL

main55353-37010iXKC605,XKU605,645,655¥710202103

55394BBOLT, INSTRUMENT PANEL

main55394-37010iXKC605,XKU605,645,655¥90202103

9011908A87

main90119-08A87¥100

9017906156

main90179-06156¥140

9017906323

main90179-06323¥110

9018305033

main90183-05033¥80

9155180816

main91551-80816¥80

91631B0614

main91631-B0614¥110

9356855014

main93568-55014¥70

14 parts on this diagram · 2 diagrams in section
