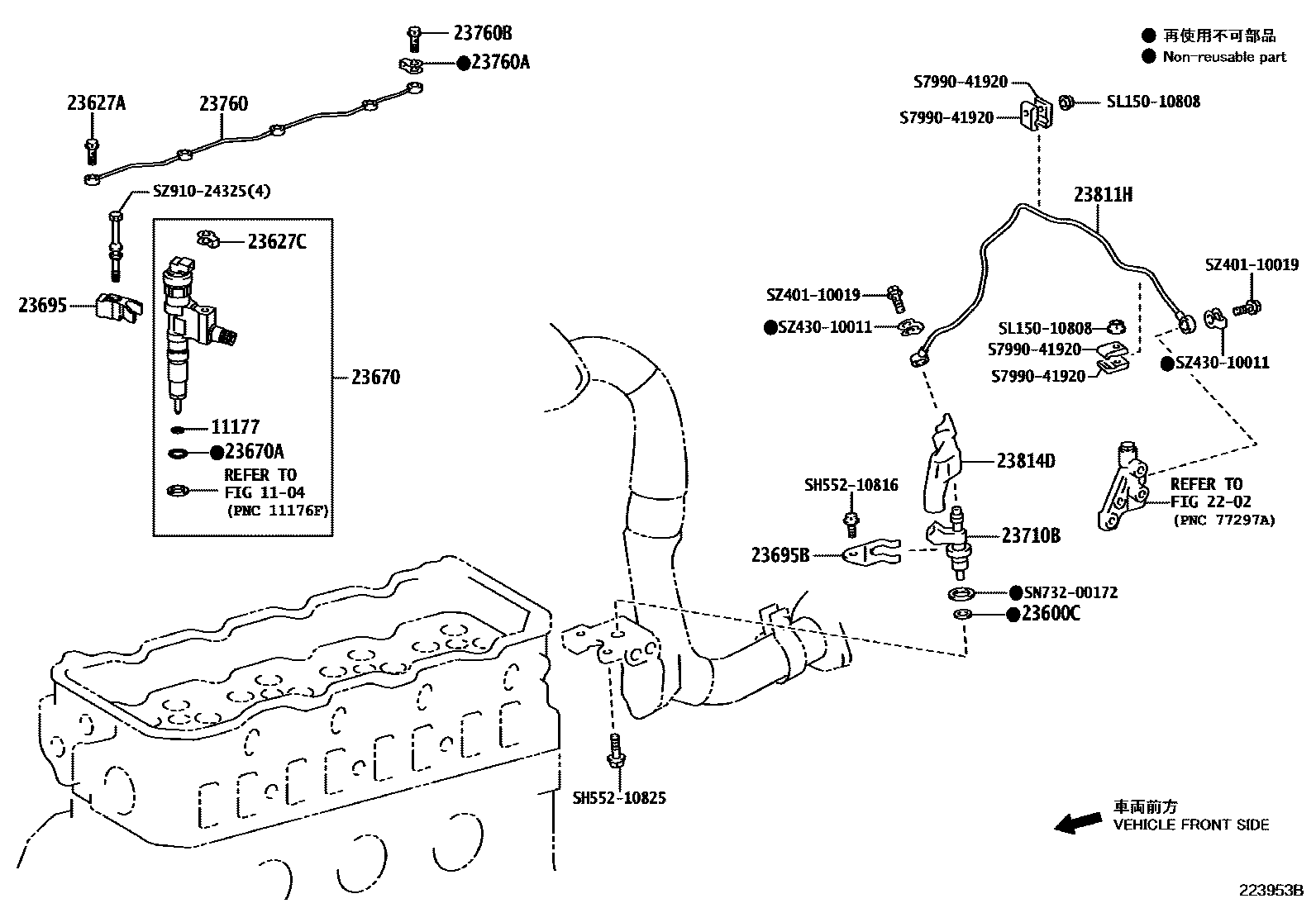

Toyota DYNA HV — INJECTION NOZZLE

1104

11177GASKET, INJECTION NOZZLE SEAT

main23682-E0050iN04C..XKC605,XKU605,645,655¥80202103

2202

23600CGASKET(FOR HOLDER & NOZZLE SET)

mainS236611340iN04C..XKC605,XKU605,645,655202103

23627ASCREW, FOLLOW(FOR NOZZLE)

main21811-E0050iN04C..XKC605,XKU605,645,655¥770202103

23627CWASHER(FOR NOZZLE)

mainSZ20908024iN04C..XKC605,XKU605,645,655202103

23670INJECTOR ASSY

main23670-E9301iN04C..XKC605,XKU605,645,655¥56,000202103

23670ARING, O(FOR INJECTOR ASSY)

main15518-E0011iN04C..XKC605,XKU605,645,655¥230202103

23695CLAMP, NOZZLE HOLDER, NO.1

mainS111951140iN04C..XKC605,XKU605,645,655202103

23695BCLAMP, NOZZLE HOLDER, NO.2

main23695-E0080iN04C..XKC605,XKU605,645,655¥60202103

23710BINJECTOR ASSY, EXHAUST FUEL ADDITION

main23710-E0031iN04C..XKC605,XKU605,645,655¥9,000202103

23760PIPE ASSY, NOZZLE LEAKAGE

main23708-78031iN04C..XKC605,XKU605,645,655¥4,650202103

23760AGASKET

mainSZ20908024iN04C..XKC605,XKU605,645,655202103

23760BBOLT, UNION(FOR NOZZLE LEAKAGE PIPE)

main21811-E0060iN04C..XKC605,XKU605,645,655¥770202103

23811HPIPE, FUEL, NO.1

main23801-78251iN04C..XKC605,XKU605,645,655¥7,000202103

23814DPIPE, FUEL DELIVERY

main23814-E0621iN04C..XKC605,XKU605,645,655¥2,150202103

S799041920CLIP SUB-ASSY

mainS7990-41920¥520

SH55210816

mainSH552-10816¥320

SH55210825

mainSH552-10825¥350

SL15010808

mainSL150-10808¥210

SN73200172

mainSN732-00172¥140

SZ40110019

mainSZ401-10019¥650

SZ43010011WASHER, SOFT, NO.1

mainSZ430-10011¥210

SZ91024325

mainSZ910-24325¥400

24 parts on this diagram · 1 diagram in section
