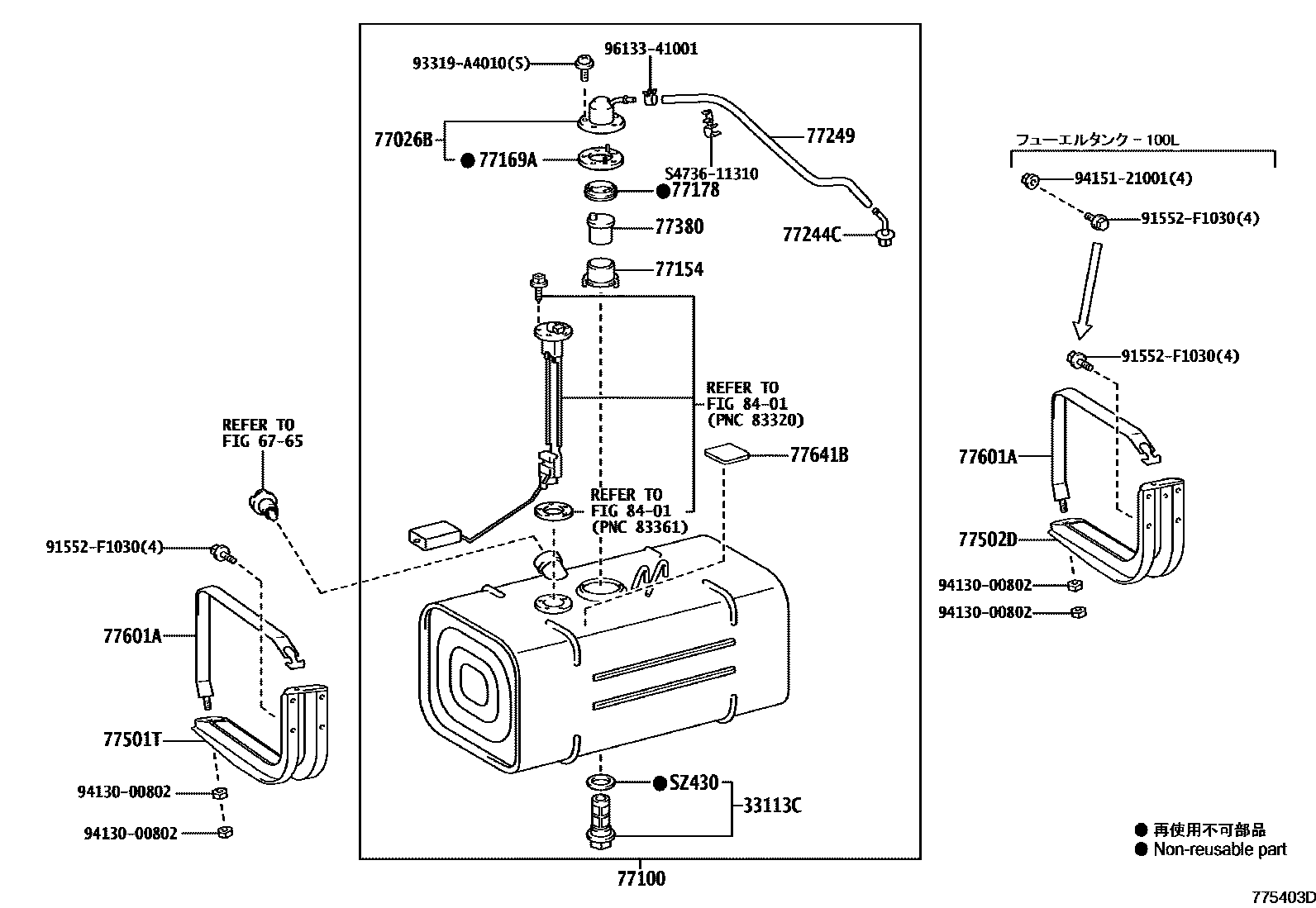

Toyota DYNA HV — FUEL TANK & TUBE

0001 1�������� & ����������� 0002 1����������

33113CPLUG, DRAIN

main33113-37130iXKC605,XKU605,645,655¥390202103

6765

77026BTUBE SUB-ASSY, FUEL EVAPORATION, NO.1

main77026-37010iXKC605,XKU605,645,655¥1,250202103

77100TANK ASSY, FUEL

main77100-37A91iXKC605,XKU605¥47,500202103

main77100-37B11iXKU645,655¥55,000202103

77154PLATE, FUEL TANK EVAP/VENT TUBE SUPPORT

main77154-25010iXKC605,XKU605,645,655¥310202103

77169AGASKET, FUEL SUCTION TUBE SET

main77169-14020iXKC605,XKU605,645,655¥330202103

77178GASKET, FUEL TANK FILLER PIPE, LOWER

main77178-44010iXKC605,XKU605,645,655¥70202103

77244CJOINT, FUEL TUBE, NO.2

main77244-37030iXKC605,XKU605,645,655¥300202103-202111

main77244-37031iXKC605,XKU605,645,655202112

77249HOSE, FUEL EMISSION

main77249-37520iXKC605,XKU605¥1,130202103

main77249-37550iXKU645,655¥1,190202103

77380VALVE ASSY, FUEL CUT OFF

main77380-26010iXKC605,XKU605,645,655¥780202103

77501TBRACKET SUB-ASSY, FUEL TANK

main77501-37790iXKC605,XKU605,645,655¥15,000202103

77502DBRACKET SUB-ASSY, FUEL TANK, REAR

main77501-37780iXKC605,XKU605,645,655¥13,500202103

77601ABAND SUB-ASSY, FUEL TANK, NO.1

main77601-37111iXKC605,XKU605,645,655¥1,870202103

77641BCOVER, FUEL TANK

main77641-37100iXKC605,XKU605,645,655¥460202103

8401

SZ430WASHER, SOFT, NO.1

mainSZ43030004iXKC605,XKU605,645,655202103

91552F1030

main91552-F1030¥100

93319A4010

main93319-A4010¥60

9413000802

main94130-00802¥90

9415121001

main94151-21001¥100

9613341001

main96133-41001¥110

S473611310CLAMP, BRAKE PIPE

mainS4736-11310¥340

22 parts on this diagram · 2 diagrams in section
