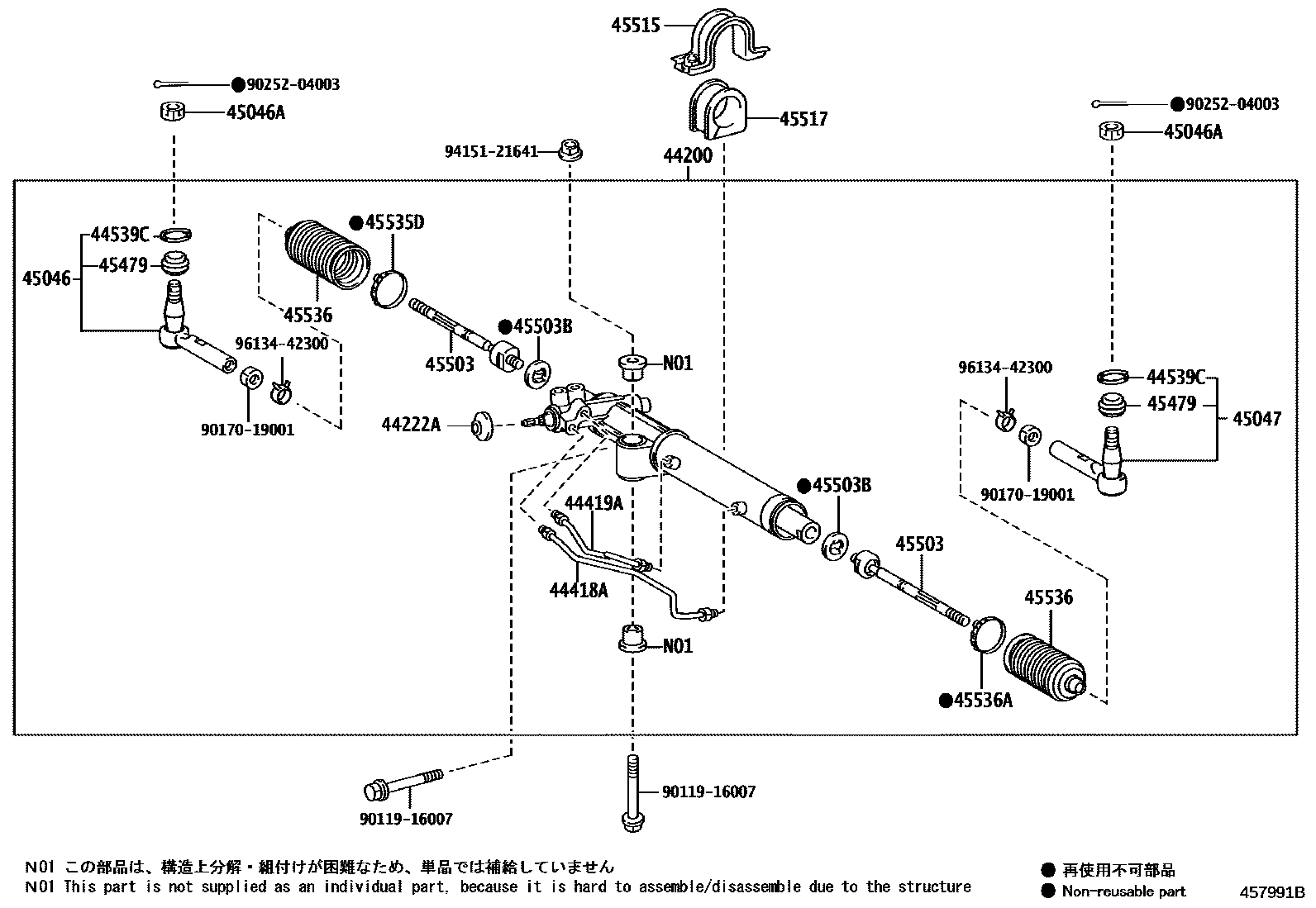

Toyota DYNA HV — FRONT STEERING GEAR & LINK

44200LINK ASSY, POWER STEERING

main44200-37080iXKC605,XKU605,645,655¥75,000202103

44222ACOVER, DUST(FOR POWER STEERING GEAR)

main45222-37030iXKC605,XKU605,645,655¥230202103

44418ATUBE, STEERING RIGHT TURN PRESSURE

main44418-37050iXKC605,XKU605,645,655¥2,200202103

44419ATUBE, STEERING LEFT TURN PRESSURE

main44419-37050iXKC605,XKU605,645,655¥1,510202103

44539CRING, SET(FOR POWER STEERING RACK END DUST SEAL)

main90522-30034iXKC605,XKU605,645,655¥190202103

45046END SUB-ASSY, TIE ROD, RH

main45046-37120iXKC605,XKU605,645,655¥2,210202103

45046ANUT, CASTLE(FOR TIE ROD END)

main90171-16005iXKC605,XKU605,645,655¥150202103

45047END SUB-ASSY, TIE ROD, LH

main45046-37120iXKC605,XKU605,645,655¥2,210202103

45479SEAL, STEERING LINK JOINT DUST

main45479-37030iXKC605,XKU605,645,655¥640202103

45503END SUB-ASSY, STEERING RACK

main45503-37030iXKC605,XKU605,645,655¥7,000202103

45503BWASHER, CLAW(FOR STEERING RACK END)

main90214-24001iXKC605,XKU605,645,655¥540202103

45515BRACKET, STEERING RACK HOUSING, NO.2

main45515-37020iXKC605,XKU605,645,655¥810202103

45517GROMMET, STEERING RACK HOUSING, NO.2

main45517-37010iXKC605,XKU605,645,655¥850202103

45535DCLAMP(FOR STEERING RACK BOOT NO.1)

main90460-62006iXKC605,XKU605,645,655¥330202103

45536BOOT, STEERING RACK, NO.2

main45535-37010iXKC605,XKU605,645,655¥1,060202103

45536ACLAMP(FOR STEERING RACK BOOT NO.2)

main90460-62006iXKC605,XKU605,645,655¥330202103

9011916007

main90119-16007¥430

9017019001

main90170-19001¥320

9025204003

main90252-04003¥10

9415121641

main94151-21641¥160

9613442300

main96134-42300¥90

21 parts on this diagram · 1 diagram in section
