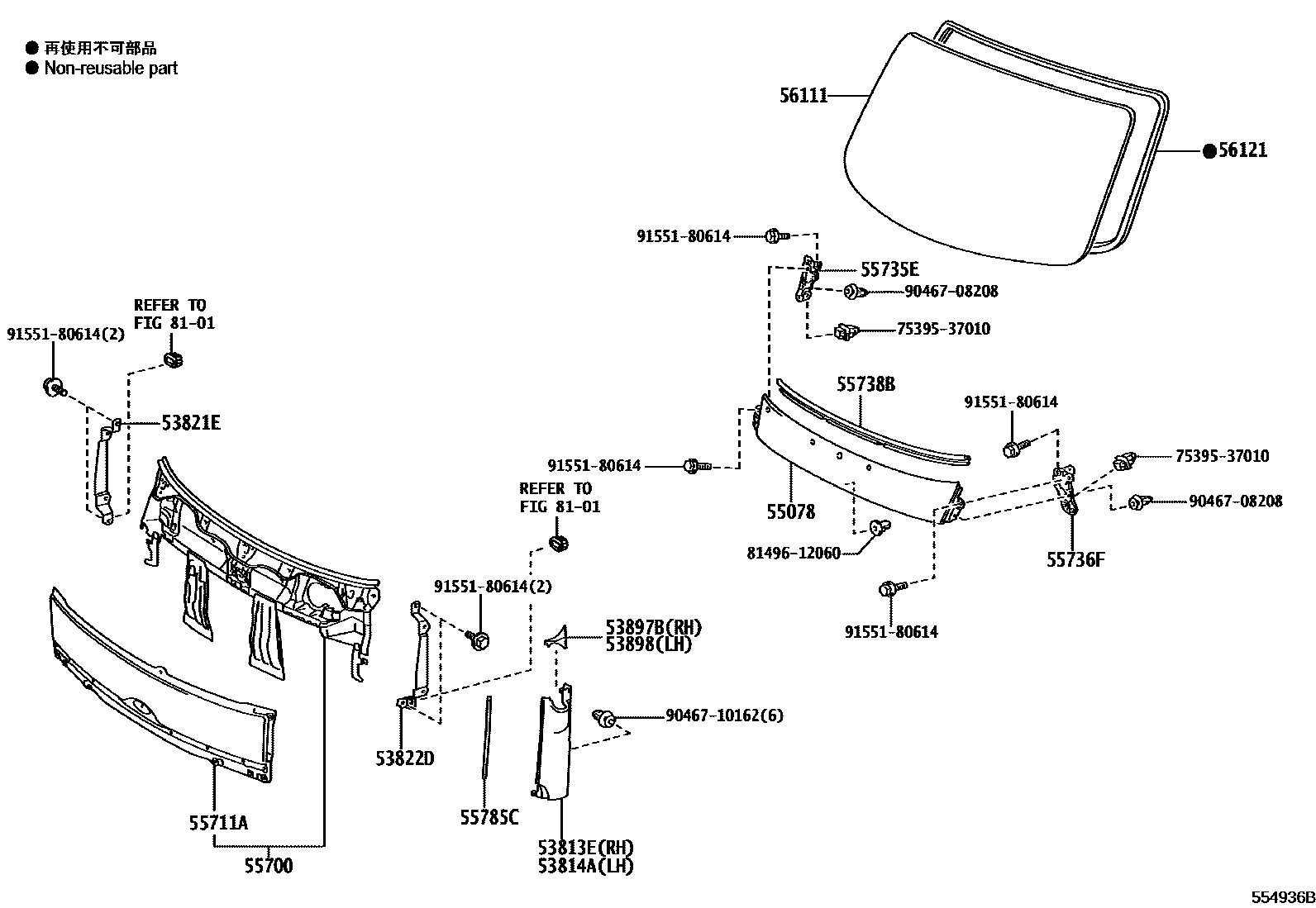

Toyota DYNA HV — FRONT PANEL & WINDSHIELD GLASS

0001 1��������������=��������������0002 1��������������=��������� 0003 1��(�����������)

53813EPANEL, FRONT SIDE, RH

main53813-37120-A0iXKC605,XKU605,645,655202103-202404

WHITE,058

sub53813-37180¥9,500

main53813-37120-A0iXKC605,XKU605,645,655202404

sub53813-37180¥9,500

main53813-37120-B1iXKC605,XKU605,645,655..CBU,IV3202103-202404

SILVER ME.,199

sub53813-37180¥9,500

main53813-37120-B1iXKC605,XKU605,645,655..CBU,IV3202404

sub53813-37180¥9,500

main53813-37120-D0iXKU655..30T;XKU605..20T..IV3202103-202404

RED,3L5

sub53813-37180¥9,500

main53813-37120-D0iXKU655..30T;XKU605..20T..IV3202404

sub53813-37180¥9,500

main53813-37120-H0iXKC605,XKU605,645,655202103-202404

TURQUOISE,766

sub53813-37180¥9,500

main53813-37120-H0iXKC605,XKU605,645,655202404

sub53813-37180¥9,500

main53813-37120-J0iXKC605,XKU605,645,655202103-202404

BLUE,8P0

sub53813-37180¥9,500

main53813-37120-J0iXKC605,XKU605,645,655202404

sub53813-37180¥9,500

main53813-37120-K0iXKU655..30T;XKU605..20T..IV3202103-202404

ONLYJAPANESE,9E2

sub53813-37180¥9,500

main53813-37120-K0iXKU655..30T;XKU605..20T..IV3202404

sub53813-37180¥9,500

main53813-37180-A0iXKC605,XKU605,645,655202404

53814APANEL, FRONT SIDE, LH

main53814-37120-A0iXKC605,XKU605,645,655202103-202404

WHITE,058

sub53814-37180¥9,500

main53814-37120-A0iXKC605,XKU605,645,655202404

sub53814-37180¥9,500

main53814-37120-B1iXKC605,XKU605,645,655..CBU,IV3202103-202404

SILVER ME.,199

sub53814-37180¥9,500

main53814-37120-B1iXKC605,XKU605,645,655..CBU,IV3202404

sub53814-37180¥9,500

main53814-37120-D0iXKU655..30T;XKU605..20T..IV3202103-202404

RED,3L5

sub53814-37180¥9,500

main53814-37120-D0iXKU655..30T;XKU605..20T..IV3202404

sub53814-37180¥9,500

main53814-37120-H0iXKC605,XKU605,645,655202103-202404

TURQUOISE,766

sub53814-37180¥9,500

main53814-37120-H0iXKC605,XKU605,645,655202404

sub53814-37180¥9,500

main53814-37120-J0iXKC605,XKU605,645,655202103-202404

BLUE,8P0

sub53814-37180¥9,500

main53814-37120-J0iXKC605,XKU605,645,655202404

sub53814-37180¥9,500

main53814-37120-K0iXKU655..30T;XKU605..20T..IV3202103-202404

ONLYJAPANESE,9E2

sub53814-37180¥9,500

main53814-37120-K0iXKU655..30T;XKU605..20T..IV3202404

sub53814-37180¥9,500

main53814-37180-A0iXKC605,XKU605,645,655202404

53821EBRACKET, FRONT FENDER, REAR RH

main53821-37100iXKC605,XKU605,645,655¥1,380202103

53822DBRACKET, FRONT FENDER, REAR LH

main53822-37060iXKC605,XKU605,645,655¥1,380202103

53897BPLATE, FRONT PILLAR TO FRONT SIDE SEAL, RH

main53897-37020iXKC605,XKU605,645,655¥230202103

53898PLATE, FRONT PILLAR TO FRONT SIDE SEAL, LH

main53898-37020iXKC605,XKU605,645,655¥230202103

55078COVER SUB-ASSY, FRONT PANEL

main55078-37110iXKC605,XKU605,645,655¥7,200202103

55700PANEL ASSY, FRONT

main55700-37460iXKC605,XKU605,645,655¥21,000202103

55711APANEL, FRONT, LOWER

main55711-37110iXKC605,XKU605,645,655¥16,500202103

55735EREINFORCEMENT, COWL BODY MOUNTING, RH

main55735-37021iXKC605,XKU605,645,655¥1,030202103

55736FREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-37021iXKC605,XKU605,645,655¥1,030202103

55738BPROTECTOR, FRONT PANEL COVER, NO.1

main55738-37080iXKC605,XKU605,645,655¥2,200202103

55785CPAD, FRONT PANEL COVER

main55785-37070iXKC605,XKU605,645,655¥270202103

56111GLASS, WINDSHIELD

main56102-37010iXKC605,XKU605,655..CBU¥80,000202103

main56102-37020iXKC605,XKU605,645,655..IV3,IV5¥69,000202103-202310

56121WEATHERSTRIP, WINDSHIELD

main56121-25040¥6,800

8101

7539537010CLIP, BACK DOOR MOULDING, NO.1

main75395-37010¥200

8149612060GUIDE, REAR COMBINATION LAMP

main81496-12060¥350

9046708208

main90467-08208¥80

9046710162

main90467-10162¥90

9155180614

main91551-80614¥60

21 parts on this diagram · 3 diagrams in section
