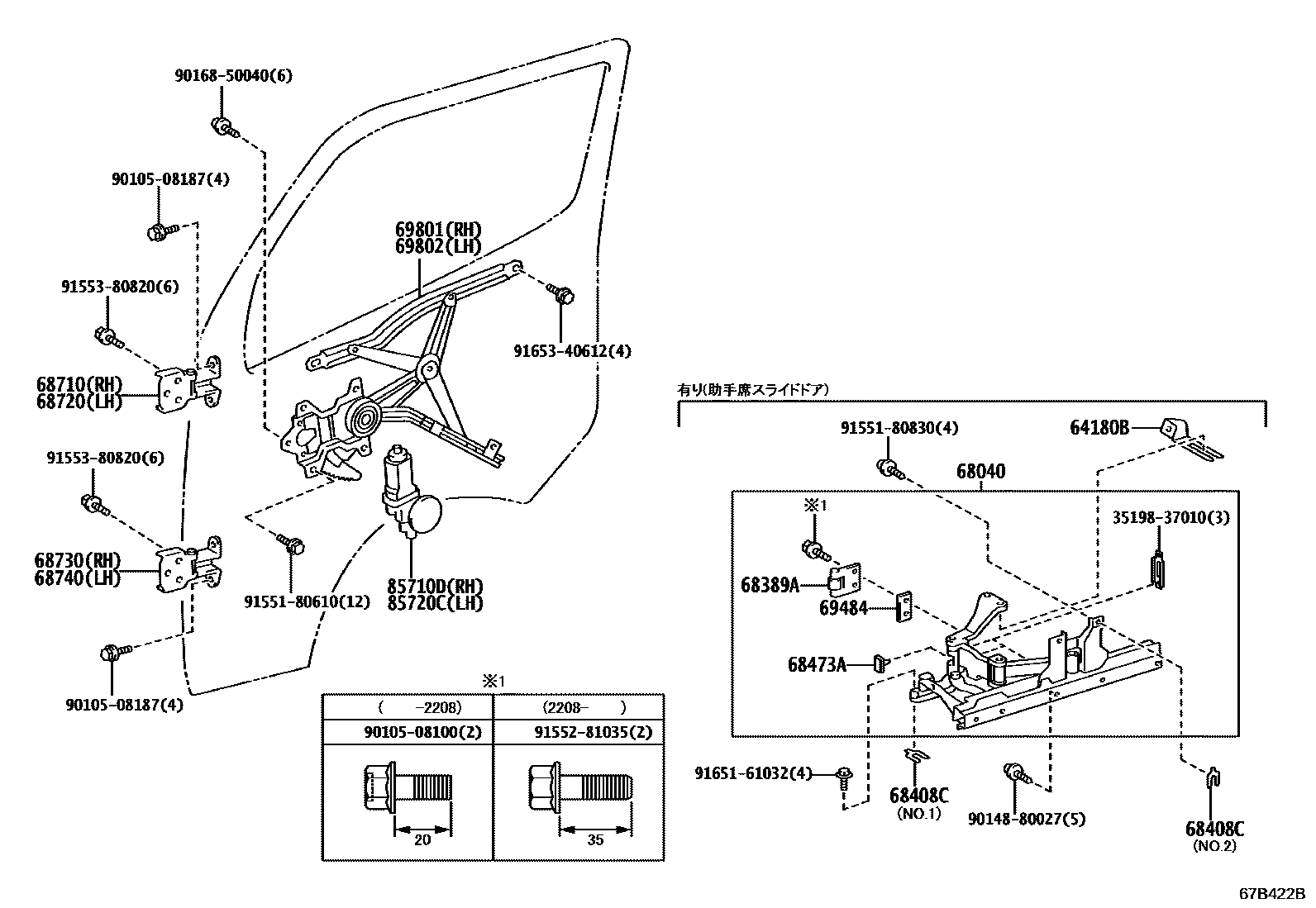

Toyota DYNA HV — FRONT DOOR WINDOW REGULATOR & HINGE

64180BBRACKET ASSY, REAR MOUNTING, LH

68040GUIDE ASSY, FRONT SLIDE DOOR

main68040-37011¥152,000

main68040-37012¥152,000

68389ASPRING, SLIDE DOOR CATCH, LH

68408CSHIM

68473ASTOPPER, FRONT SLIDE DOOR ARM

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-37020iXKC605,XKU605,645,655..CBU,IV3¥2,240202103

main68710-37031iXKU605..IV5¥2,240202103

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68730-37010iXKC605,XKU605,645,655..CBU,IV3¥2,240202103

main68730-37031iXKU605..IV5¥2,240202103

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-37010iXKC605,XKU605,645,655..CBU,IV3¥2,240202103

main68730-37031iXKU605..IV5¥2,240202103

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68710-37020iXKC605,XKU605,645,655..CBU,IV3¥2,240202103

main68710-37031iXKU605..IV5¥2,240202103

69484BASE, SLIDE DOOR OPEN CATCH, LH

main69484-37010¥100

main69484-37020

69801REGULATOR SUB-ASSY, FRONT DOOR WINDOW, RH

main69801-37063iXKC605,XKU605,645,655¥6,000202103

69802REGULATOR SUB-ASSY, FRONT DOOR WINDOW, LH

main69802-37063iXKC605,XKU605,645,655¥6,000202103

85710DMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-37080iXKC605,XKU605,645,655¥15,900202103

85720CMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-37110iXKC605,XKU605,645,655¥15,900202103

3519837010CLAMP, TRANSAXLE APPLY TUBE, NO.4

main35198-37010¥390

9010508100

main90105-08100¥90

9010508187

main90105-08187¥90

9014880027

main90148-80027¥450

9016850040

main90168-50040¥70

9155180610

main91551-80610¥60

9155180830

main91551-80830¥80

9155281035

main91552-81035¥120

9155380820

main91553-80820¥80

9165161032

main91651-61032¥170

9165340612

main91653-40612¥60

25 parts on this diagram · 1 diagram in section
