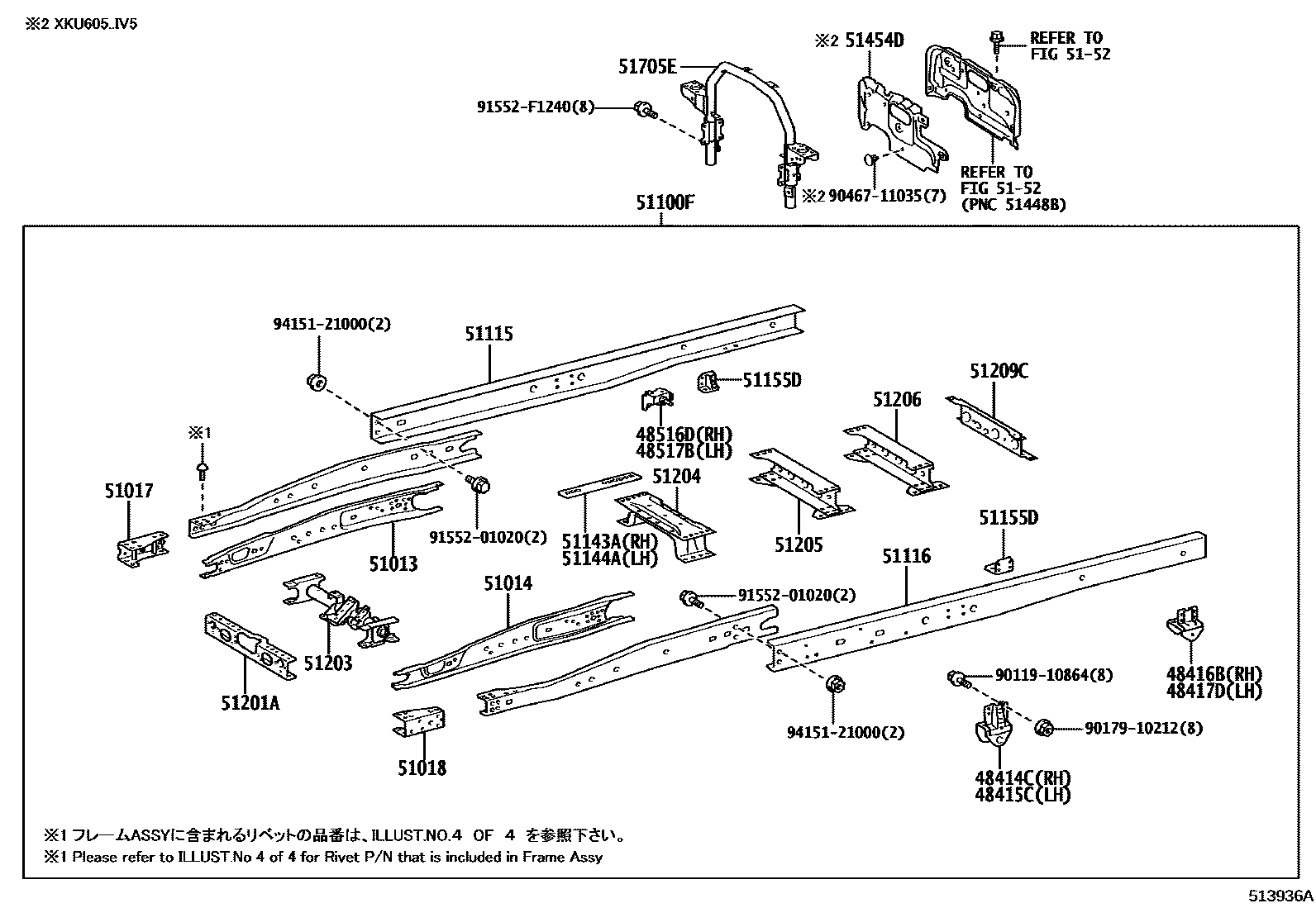

Toyota DYNA HV — FRAME
48414CBRACKET, SPRING, NO.3 RH
48415CBRACKET, SPRING, NO.3 LH
48416BBRACKET, SPRING, NO.4 RH
48417DBRACKET, SPRING, NO.4 LH
48516DBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPPER RH
48517BBRACKET SUB-ASSY, REAR SHOCK ABSORBER, UPR LH
51013CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT RH
51014CHANNEL SUB-ASSY, SIDE RAIL, INNER FRONT LH
51017REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 RH
51018REINFORCEMENT SUB-ASSY, SIDE RAIL, NO.1 LH
51100FFRAME SUB-ASSY
51115RAIL, FRAME SIDE, REAR RH
51116RAIL, FRAME SIDE, REAR LH
51143AREINFORCEMENT, SIDE RAIL, FRONT RH
51144AREINFORCEMENT, SIDE RAIL, FRONT LH
51155DSTIFFENER, FRAME SIDE RAIL, REAR NO.1
51201ACROSSMEMBER SUB-ASSY, FRAME, FRONT
51203CROSSMEMBER SUB-ASSY, FRAME, NO.2
51204CROSSMEMBER SUB-ASSY, FRAME, NO.3
51205CROSSMEMBER SUB-ASSY, FRAME, NO.4
51206CROSSMEMBER SUB-ASSY, FRAME, NO.5
51209CCROSSMEMBER SUB-ASSY, FRAME, REAR
51454DSILENCER, ENGINE REAR COVER
5152
51705EBRACKET SUB-ASSY, CAB REAR MOUNTING
9011910864
9017910212
9046711035
9155201020
91552F1240
9415121000
31 parts on this diagram · 6 diagrams in section
