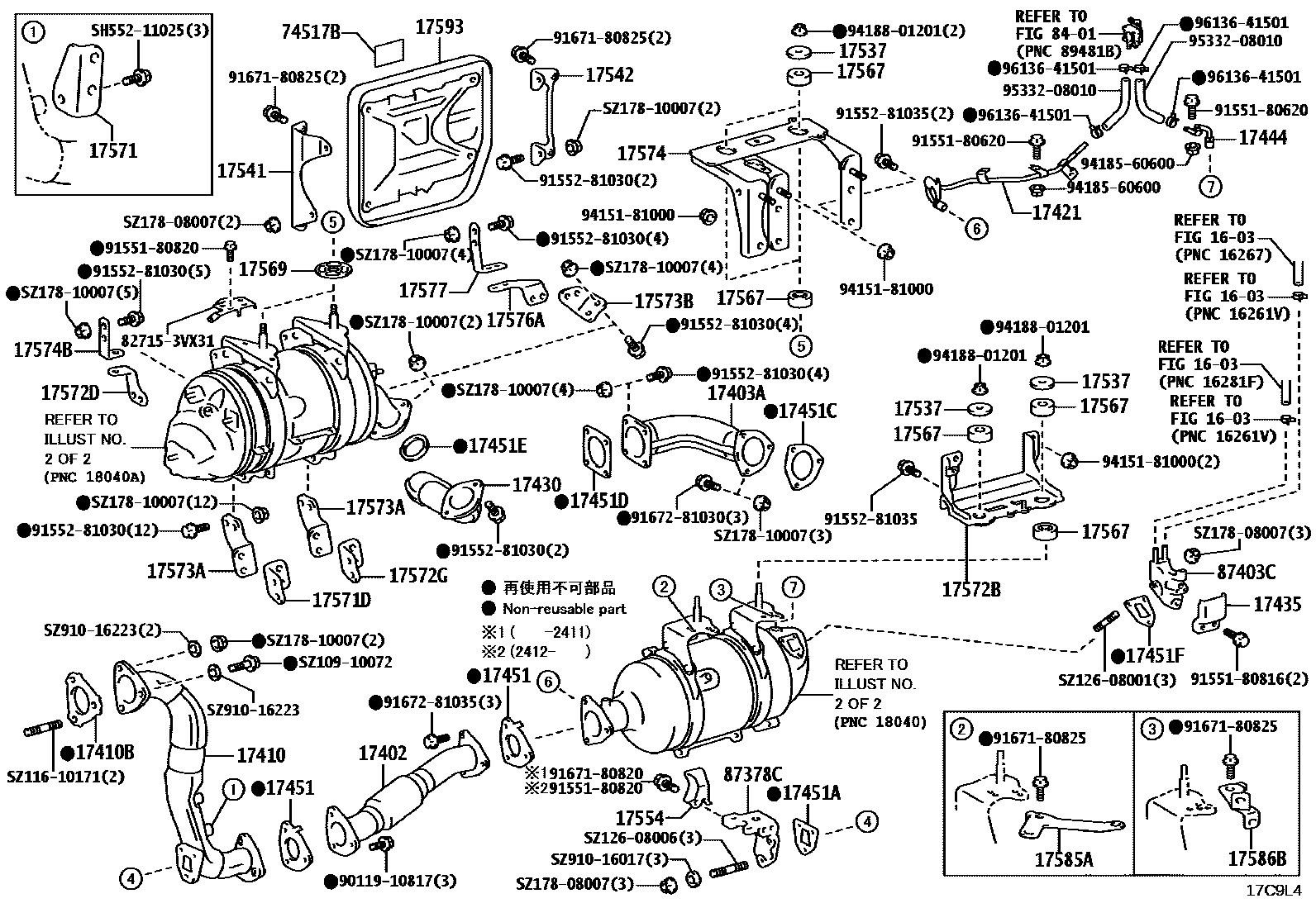

Toyota DYNA HV — EXHAUST PIPE
1603
17402PIPE SUB-ASSY, EXHAUST, FRONT NO.2
17403APIPE SUB-ASSY, EXHAUST, CENTER NO.2
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
17421PIPE, EXHAUST, NO.2
17430PIPE ASSY, EXHAUST, TAIL
17435INSULATOR, EXHAUST PIPE HEAT
17444PIPE, EXHAUST, NO.4
17451GASKET, EXHAUST PIPE
17451AGASKET, EXHAUST PIPE, NO.2
17451CGASKET, EXHAUST PIPE, NO.3
17451DGASKET, EXHAUST PIPE, NO.4
17451EGASKET, EXHAUST PIPE, NO.5
17451FGASKET, EXHAUST PIPE, NO.6
17537PLATE, EXHAUST PIPE
17541STAY, EXHUST PIPE PROTECTOR, NO.1
17542STAY, EXHAUST PIPE PROTECTOR, NO.2
17554INSULATOR, EXHAUST PIPE HEAT, FRONT
17567CUSHION, EXHAUST PIPE SUPPORT
17569PLATE, EXHAUST PIPE SUPPORT
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17571DBRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17572DBRACKET, EXHAUST PIPE SUPPORT, NO.1
17572GBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17573BBRACKET, EXHAUST PIPE SUPPORT, NO.5
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17574BBRACKET, EXHAUST PIPE SUPPORT, NO.4
17576BRACKET, MUFFLER CLAMP
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17577BRACKET, EXHAUST PIPE SUPPORT, NO.7
17585ABRACKET, EXHAUST PIPE NO.2 SUPPORT
17586BBRACKET, EXHAUST PIPE NO.3 SUPPORT
17593PROTECTOR, EXHAUST PIPE, NO.1
74517BLABEL, EXHAUST TEMPERATURE CAUTION
8401
87378CPIPE, EXHAUST
87403CPIPE SUB-ASSY, EXHAUST
827153VX31BRACKET,WIRING HARNESS CLAMP
9011910817
9155180620
9155180816
9155180820
9155281030
9155281035
9167180820
9167180825
9167281030
9167281035
9415181000
9418560600
9418801201
9533208010
9613641501
SH55211025
SZ10910072
SZ11610171
SZ12608001
SZ12608006
SZ17808007
SZ17810007
SZ91016017
SZ91016223
65 parts on this diagram · 3 diagrams in section
