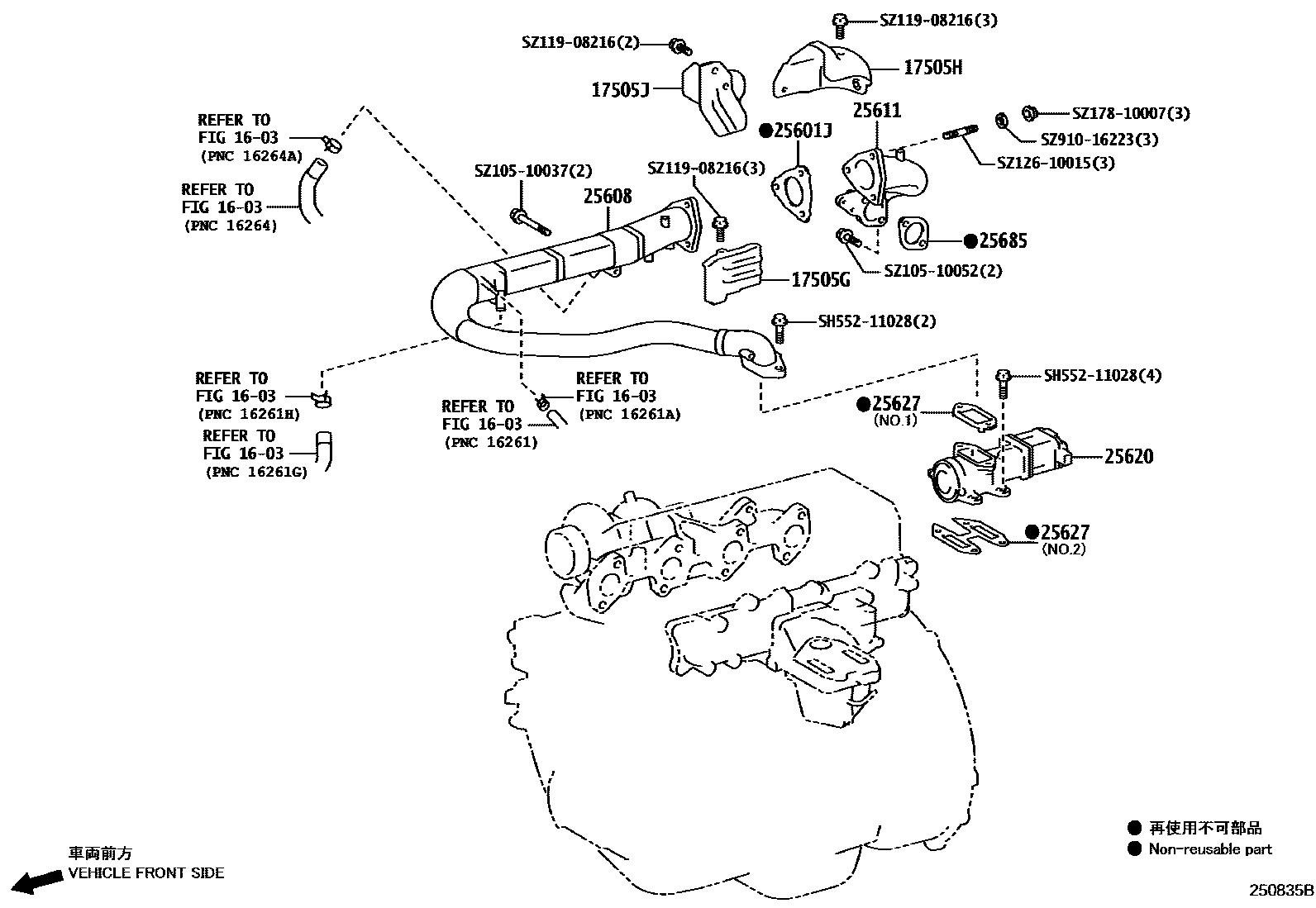

Toyota DYNA HV — EXHAUST GAS RECIRCULATION SYSTEM

1603

17505GINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.1

main17505-E0710iN04C..XKC605,XKU605,645,655¥1,660202103

17505HINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.2

main17505-E0A70iN04C..XKC605,XKU605,645,655¥4,150202103

17505JINSULATOR SUB-ASSY, EXHAUST PIPE HEAT NO.3

main17505-E0730iN04C..XKC605,XKU605,645,655¥1,400202103

25601JGASKET(FOR EGR PIPE, NO.1)

main17451-E0110iN04C..XKC605,XKU605,645,655¥940202103

25608COOLER SUB-ASSY, EGR

main25608-78160iN04C..XKC605,XKU605,645,655¥72,000202103

25611CONNECTOR, EGR PIPE

main25611-E0371iN04C..XKC605,XKU605,645,655¥18,000202103

25620VALVE ASSY, EGR

main25620-E0292iN04C..XKC605,XKU605,645,655¥34,000202103

25627GASKET, EGR VALVE

main25627-E0130iN04C..XKC605,XKU605,645,655¥180202103

main25627-E0140iN04C..XKC605,XKU605,645,655¥300202103

25685GASKET, EGR COOLER, NO.1

mainS171042020iN04C..XKC605,XKU605,645,655202103

SH55211028

mainSH552-11028¥400

SZ10510037

mainSZ105-10037¥1,550

SZ10510052

mainSZ105-10052¥810

SZ11908216

mainSZ119-08216¥110

SZ12610015

mainSZ126-10015¥500

SZ17810007

mainSZ178-10007¥340

SZ91016223

mainSZ910-16223¥420

17 parts on this diagram · 1 diagram in section
