Toyota DYNA HV — CYLINDER HEAD

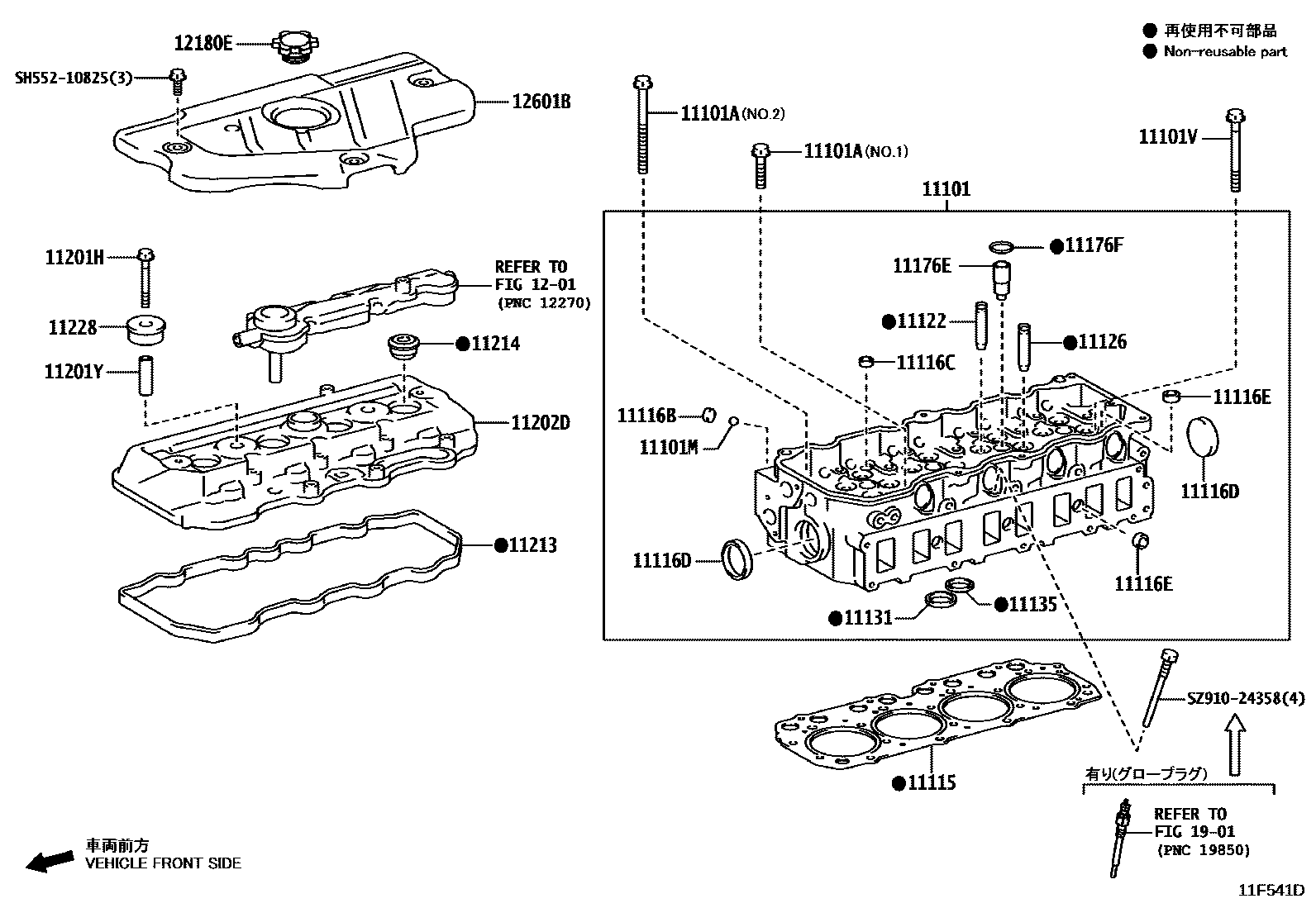

Parts diagram

11101HEAD SUB-ASSY, CYLINDER

main11101-78221i¥125,000202103

11101ABOLT(FOR CYLINDER HEAD SET)

mainS111852700i202103

mainSH55211035i202103

11101MBALL NO.1(FOR CYLINDER HEAD)

mainSN44100508i202103

11101VBOLT(FOR CYLINDER HEAD SET SUB)

mainSH55211000i202103

11115GASKET, CYLINDER HEAD

main11115-78101i¥7,800202103

11116BPLUG, TIGHT, NO.2

mainSN41101412i202103

11116CPLUG, TIGHT, NO.3

mainSN41101712i202103

11116DPLUG, TIGHT, NO.4

mainSN41105016i202103

11116EPLUG, TIGHT, NO.5

mainSN41102216i202103

11122BUSH, INTAKE VALVE GUIDE

mainS111221220i202103

11126BUSH, EXHAUST VALVE GUIDE

mainS111221220i202103

11131SEAT, INTAKE VALVE

mainS111311540i202103

11135SEAT, EXHAUST VALVE

main11135-E0010i¥1,560202103

11176ESEAT, INJECTION NOZZLE

mainS111761200i202103

11176FGASKET (FOR INJECTION NOZZLE SEAT)

mainSZ91015133i202103

11201HBOLT(FOR CYLINDER HEAD COVER)

mainSH55210865i202103

11201YSPACER(FOR CYLINDER HEAD COVER)

mainSZ91016303i202103

11202DCOVER SUB-ASSY, CYLINDER HEAD, NO.2

main11201-78061i¥22,000202103

11213GASKET, CYLINDER HEAD COVER

main11213-78070i¥4,300202103-202204

sub11213-78071¥4,300

main11213-78071i¥4,300202204

11214GASKET, CYLINDER HEAD COVER, NO.2

main11213-78082i¥290202103

11228CUSHION, CYLINDER HEAD COVER

main11228-78050i¥350202103

1201

12180ECAP ASSY, OIL FILLER

main12180-E0010i¥990202103

12601BCOVER SUB-ASSY, ENGINE, NO.1

main12601-78022i¥13,500202103

1901

SH55210825

mainSH552-10825¥350

SZ91024358

mainSZ910-24358¥690

27 parts on this diagram · 1 diagram in section
