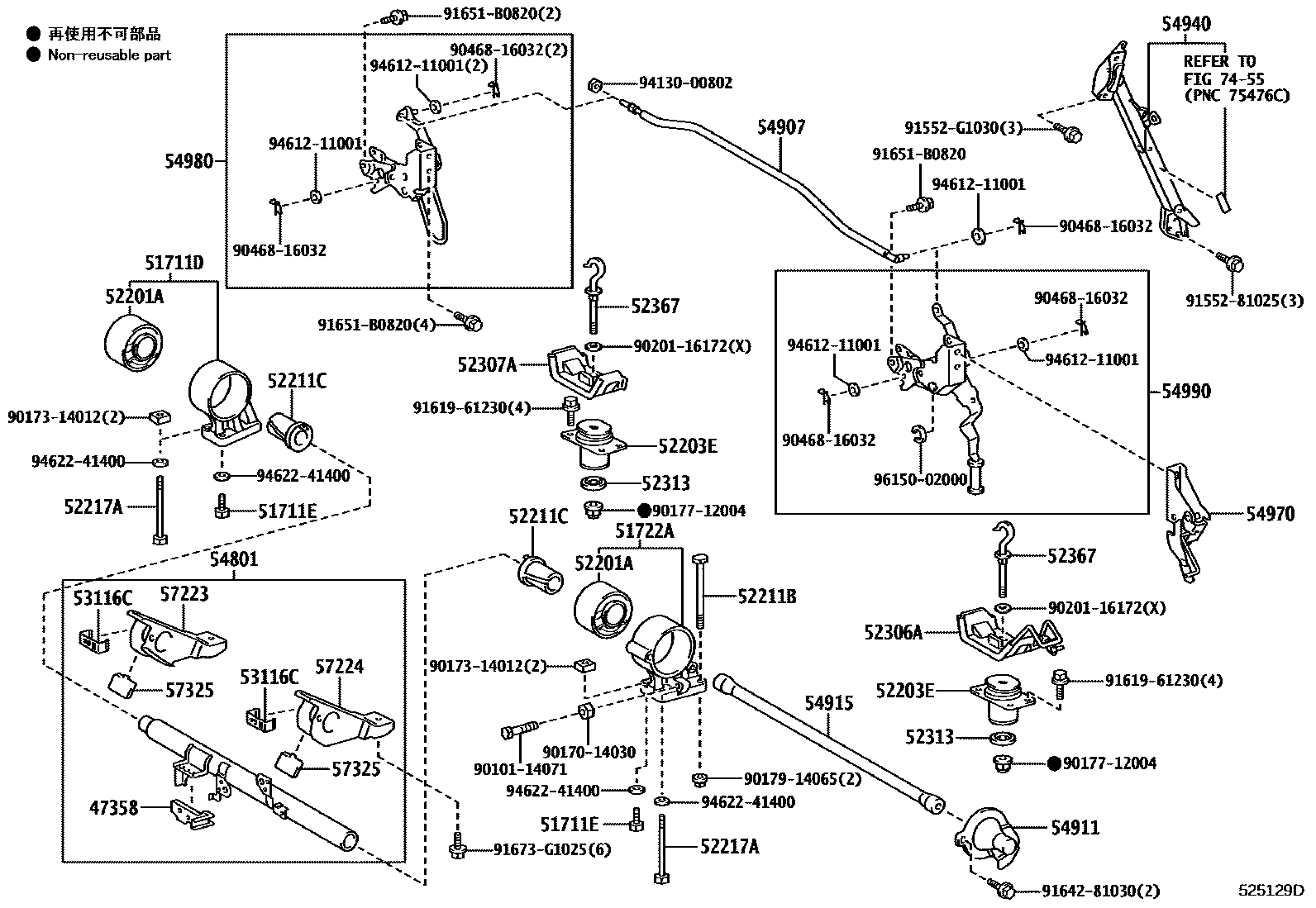

Toyota DYNA HV — CAB MOUNTING & BODY MOUNTING

47358TUBE, BOOSTER TO RESERVOIR, NO.2

main47358-37010iXKC605,XKU605,645,655202103

51711DBRACKET, CAB FRONT MOUNTING

main51701-37360iXKC605,XKU605,645,655¥12,000202103

51711EBOLT, HEXAGON(FOR CAB MOUNTING BARACKET)

main90101-14075iXKC605,XKU605,645,655¥310202103

51722ABRACKET SUB-ASSY, CAB FRONT MOUNTING, LH

main51702-37100iXKC605,XKU605,645,655¥11,500202103

52201ACUSHION SUB-ASSY, CAB FRONT MOUNTING

main52201-37050iXKC605,XKU605,645,655¥4,210202103

52203ECUSHION SUB-ASSY, CAB MOUNTING, NO.2

main52203-37090iXKC605,XKU605,645,655¥3,550202103

52211BBOLT(FOR BODY MOUNTING NO.1 CUSHION)

main90109-14013iXKC605,XKU605,645,655¥390202103

52211CSPACER(FOR BODY MOUNTING NO.1 CUSHION)

main52211-37010iXKC605,XKU605,645,655¥1,310202103

52217ABOLT, BODY MOUNTING

main90101-14072iXKC605,XKU605,645,655¥540202103

52306ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.1

main52306-37023iXKC605,XKU605,645,655¥3,580202103

52307ABRACKET SUB-ASSY, CAB MOUNTING HOOK, NO.2

main52307-37010iXKC605,XKU605,645,655¥3,460202103

52313STOPPER, CAB REAR MOUNTING REBOUND

main52313-37040iXKC605,XKU605,645,655¥570202103

52367HOOK, CAB REAR MOUNTING

main52367-37060iXKC605,XKU605,645,655¥1,960202103

53116CBRACKET, RADIATOR GRILLE, NO.2

main53116-37030iXKC605,XKU605,645,655¥350202103

54801TUBE SUB-ASSY, TILT CAB, NO.1

main54801-37240iXKC605,XKU605,645,655¥32,000202103

54907PIPE SUB-ASSY, TILT CAB LOCK CONNECTING

main54907-37050iXKC605,XKU605,645,655¥4,950202103

54911ARM, TILT CAB SPRING SUPPORT, NO.1

main54911-37160iXKC605,XKU605,645,655¥3,460202103

54915SPRING, TILT CAB, NO.1

main54915-37230iXKC605,XKU605,645,655¥7,900202103

54940STAY ASSY, TILT CAB

main54940-37321iXKC605,XKU605,645,655¥16,000202103

54970LATCH ASSY, TILT CAB STOPPER

main54970-37014iXKC605,XKU605,645,655¥5,700202103

54980LOCK ASSY, TILT CAB MOUNTING, RH

main54980-37012iXKC605,XKU605,645,655¥7,600202103

54990LOCK ASSY, TILT CAB MOUNTING, LH

main54990-37024iXKC605,XKU605,645,655¥8,900202103

57223BRACKET, FRONT MOUNTING, RH

main57223-37011iXKC605,XKU605,645,655¥2,860202103

57224BRACKET, FRONT MOUNTING, LH

main57224-37011iXKC605,XKU605,645,655¥2,780202103

57325REINFORCEMENT, FRONT MOUNTING

main57325-37010iXKC605,XKU605,645,655¥350202103

7455

9010114071

main90101-14071¥240

9017014030

main90170-14030¥120

9017314012

main90173-14012¥160

9017712004

main90177-12004¥100

9017914065

main90179-14065¥170

9020116172

main90201-16172¥140

9046816032

main90468-16032¥80

9155281025

main91552-81025¥100

91552G1030

main91552-G1030¥100

9161961230

main91619-61230¥110

9164281030

main91642-81030¥170

91651B0820

main91651-B0820¥160

91673G1025

main91673-G1025¥140

9413000802

main94130-00802¥90

9461211001

main94612-11001¥60

9462241400

main94622-41400¥160

9615002000

main96150-02000¥170

43 parts on this diagram · 1 diagram in section
