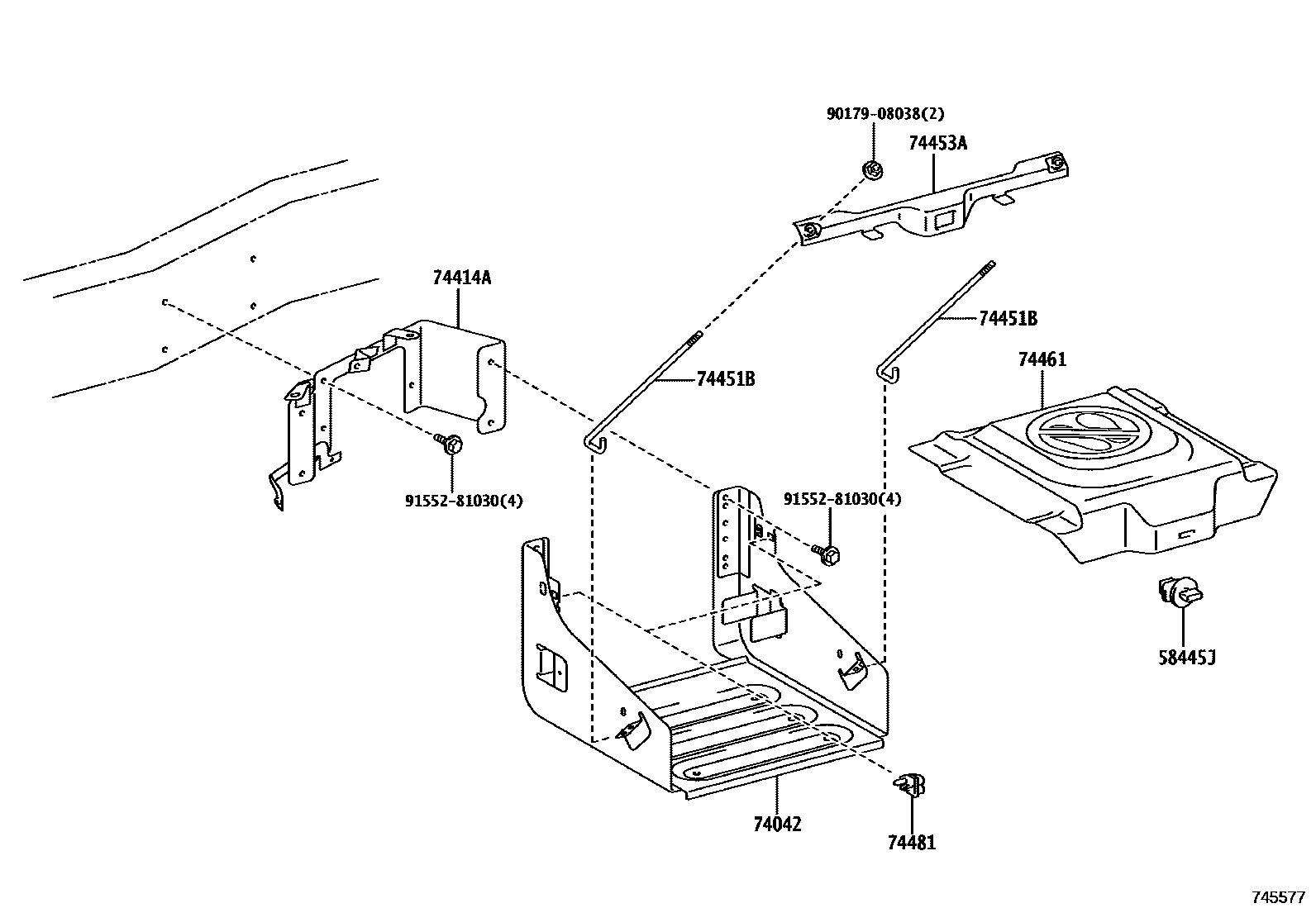

Toyota DYNA HV — BATTERY CARRIER

58445JLOCK, BATTERY SERVICE HOLE COVER

main58445-37020iXKC605,XKU605,645,655¥260202103

74042BRACKET SUB-ASSY, BATTERY

main74042-37450iXKC605,XKU605,645,655¥16,000202103

74414ABRACKET, BATTERY, NO.1

main74401-37240iXKC605,XKU605,645,655¥10,500202103

74451BBOLT, BATTERY CLAMP

main74451-37022iXKC605,XKU605,645,655¥430202103-202304

sub74451-37023¥430

main74451-37023iXKC605,XKU605,645,655¥430202305

74453ABAR, BATTERY SET PLATE

main74453-37090iXKC605,XKU605,645,655¥3,300202103

74461COVER, BATTERY

main74461-37130iXKC605,XKU605,645,655¥4,000202103

74481CLAMP, BATTERY HOLD DOWN

main74481-37020iXKC605,XKU605,645,655¥130202103

9017908038

main90179-08038¥130

9155281030

main91552-81030¥100

9 parts on this diagram · 1 diagram in section
