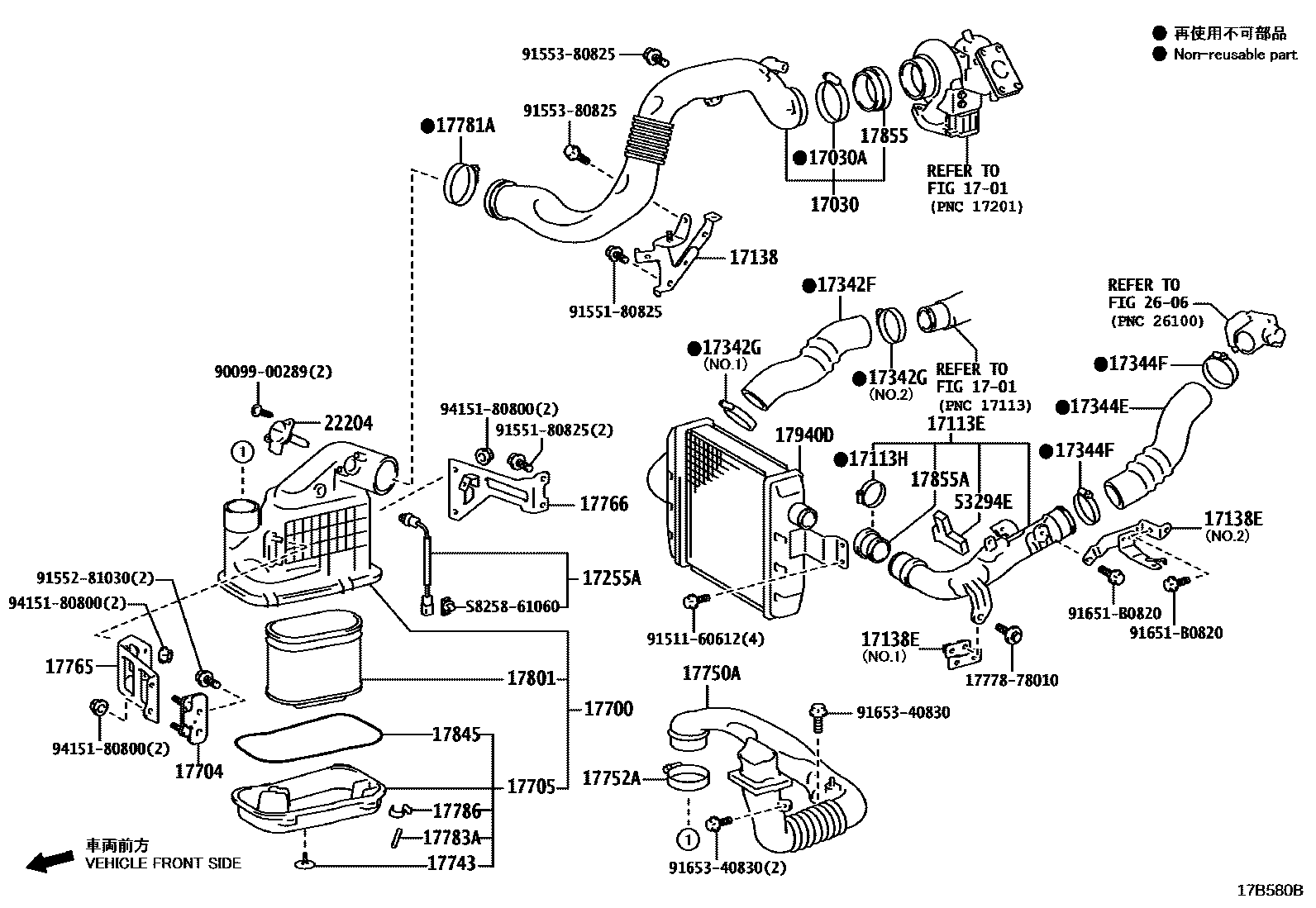

Toyota DYNA HV — AIR CLEANER

1701

17030HOSE ASSY, AIR

main17030-78A62iN04C..XKC605,XKU605,645,655¥7,700202103

17030ACLAMP, HOSE

main17781-78140iN04C..XKC605,XKU605,645,655¥520202103

17113EPIPE, INTAKE, NO.1

main17103-78320iN04C..XKC605,XKU605,645,655¥8,500202103

17113HCLAMP, INTAKE PIPE

main17781-78100iN04C..XKC605,XKU605,645,655¥420202103

17138STAY, INTAKE PIPE OR HOSE

main17138-78501iN04C..XKC605,XKU605,645,655¥1,780202103

17138ESTAY, INTAKE PIPE

main17138-78490iN04C..XKC605,XKU605,645,655¥1,100202103

main17138-78520iN04C..XKC605,XKU605,645,655¥740202103

17255AVALVE, INTAKE RELIEF

main17255-78030iN04C..XKC605,XKU605,645,655¥5,600202103

17342FHOSE, AIR, NO.2(FOR INTERCOOLER)

main17342-78250iN04C..XKC605,XKU605,645,655¥5,100202103

17342GCLAMP, HOSE, NO.2(FOR INTERCOOLER)

main90034-60046iN04C..XKC605,XKU605,645,655¥370202103

main90034-60047iN04C..XKC605,XKU605,645,655¥620202103

17344EHOSE, AIR, NO.4

main17344-78330iN04C..XKC605,XKU605,645,655¥8,300202103

17344FCLAMP, HOSE(FOR AIR HOSE, NO.4)

main90034-60048iN04C..XKC605,XKU605,645,655¥320202103

17700CLEANER ASSY, AIR

main17700-78490iN04C..XKC605,XKU605,645,655¥17,500202103

17704PLATE SUB-ASSY, AIR CLEANER SUPPORT

main17704-78010iN04C..XKC605,XKU605,645,655¥1,800202103

17705CAP SUB-ASSY, AIR CLEANER

main17705-78100iN04C..XKC605,XKU605,645,655¥6,600202103

17743VALVE, DUST RELIEF

main17743-78030iN04C..XKC605,XKU605,645,655¥720202103

17750AINLET ASSY, AIR CLEANER

main17750-78090iN04C..XKC605,XKU605,645,655¥12,000202103

17752ACLAMP, HOSE(FOR AIR CLEANER)

main96111-10900iN04C..XKC605,XKU605,645,655¥410202103

17765STAY, AIR CLEANER, NO.1

main17765-78180iN04C..XKC605,XKU605,645,655¥4,200202103

17766STAY, AIR CLEANER, NO.2

main17766-78111iN04C..XKC605,XKU605,645,655¥3,100202103

17781ACLAMP, HOSE

main17781-78160iN04C..XKC605,XKU605,645,655¥420202103

17783ARETAINER, AIR CLEANER INLET

main17783-78010iN04C..XKC605,XKU605,645,655¥200202103

17786CLAMP, AIR CLEANER

main17786-78011iN04C..XKC605,XKU605,645,655¥200202103

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-78130iN04C..XKC605,XKU605,645,655¥9,200202103

17845GASKET, AIR CLEANER CAP

main17845-78040iN04C..XKC605,XKU605,645,655¥800202103

17855GASKET, AIR INLET DUCT, NO.1

main17855-78130iN04C..XKC605,XKU605,645,655¥450202103

17855AGASKET, AIR INLET DUCT, NO.2

main17855-78030iN04C..XKC605,XKU605,645,655¥360202103

17940DINTERCOOLER ASSY

main17940-78181iN04C..XKC605,XKU605,645,655¥66,000202103

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-E0020iN04C..XKC605,XKU605,645,655¥4,350202103

2606

53294ESEAL, COOL AIR INTAKE PIPE

main16562-78110iXKC605,XKU605,645,655¥1,580202103

1777878010BOLT, AIR CLEANER SET

main17778-78010¥250

9009900289

main90099-00289¥60

9151160612

main91511-60612¥110

9155180825

main91551-80825¥80

9155281030

main91552-81030¥100

9155380825

main91553-80825¥110

91651B0820

main91651-B0820¥160

9165340830

main91653-40830¥70

9415180800

main94151-80800¥80

S825861060

mainS8258-61060

41 parts on this diagram · 1 diagram in section
