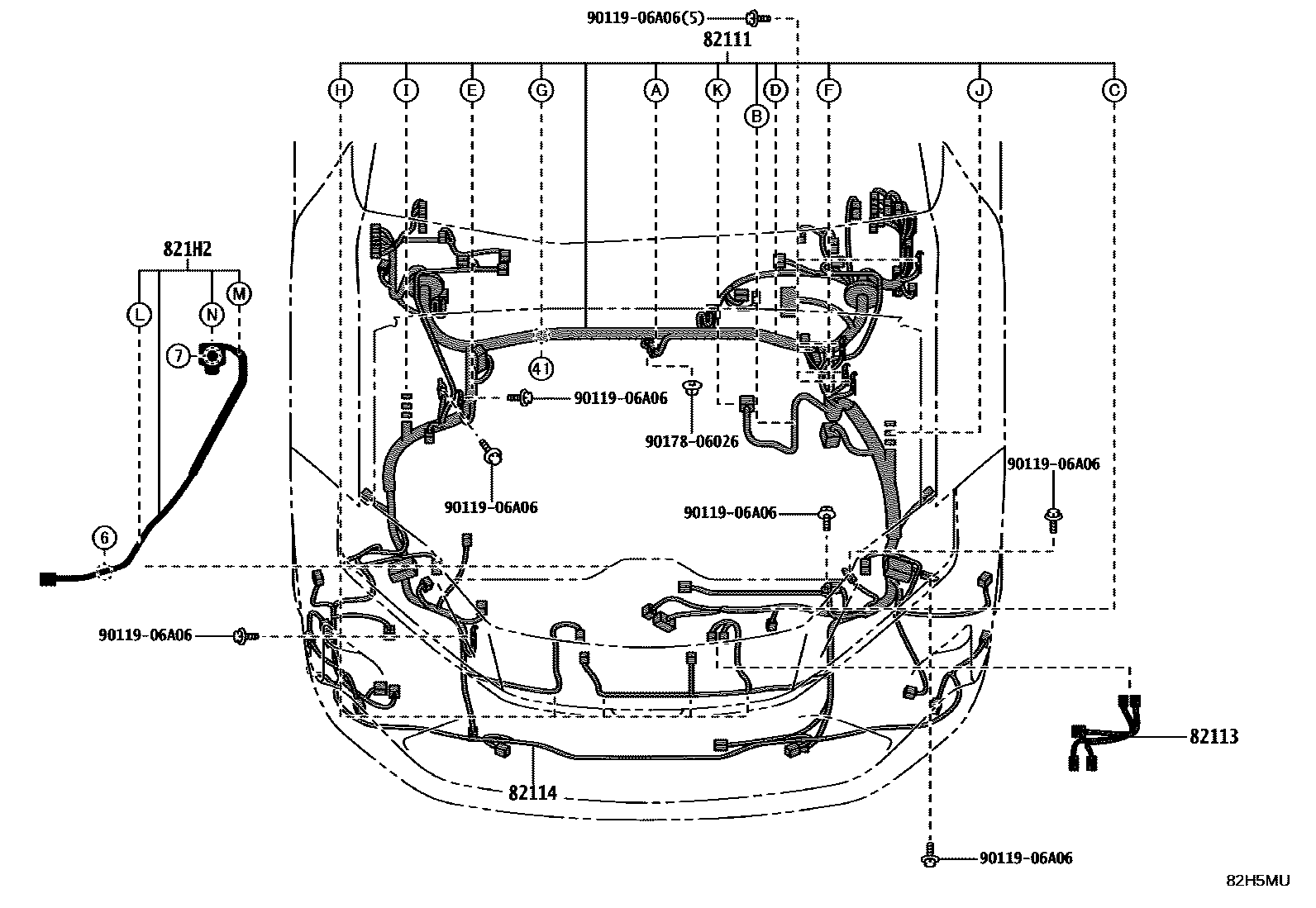

82111WIRE, ENGINE ROOM MAIN

main82111-3FV80iAZSH38..M202406

main82111-3FV90iAZSH38..G202406

82113WIRE, ENGINE ROOM, NO.3

main82113-30B30iAZSH38¥900202406

82114WIRE, ENGINE ROOM, NO.4

main82114-30680iAZSH38202406

821H2WIRE, HV AIR CONDITIONER

main821H2-30060iAZSH38¥11,700202406

9011906A06

main90119-06A06¥60

9017806026

main90178-06026¥80

6 parts on this diagram · 10 diagrams in section
