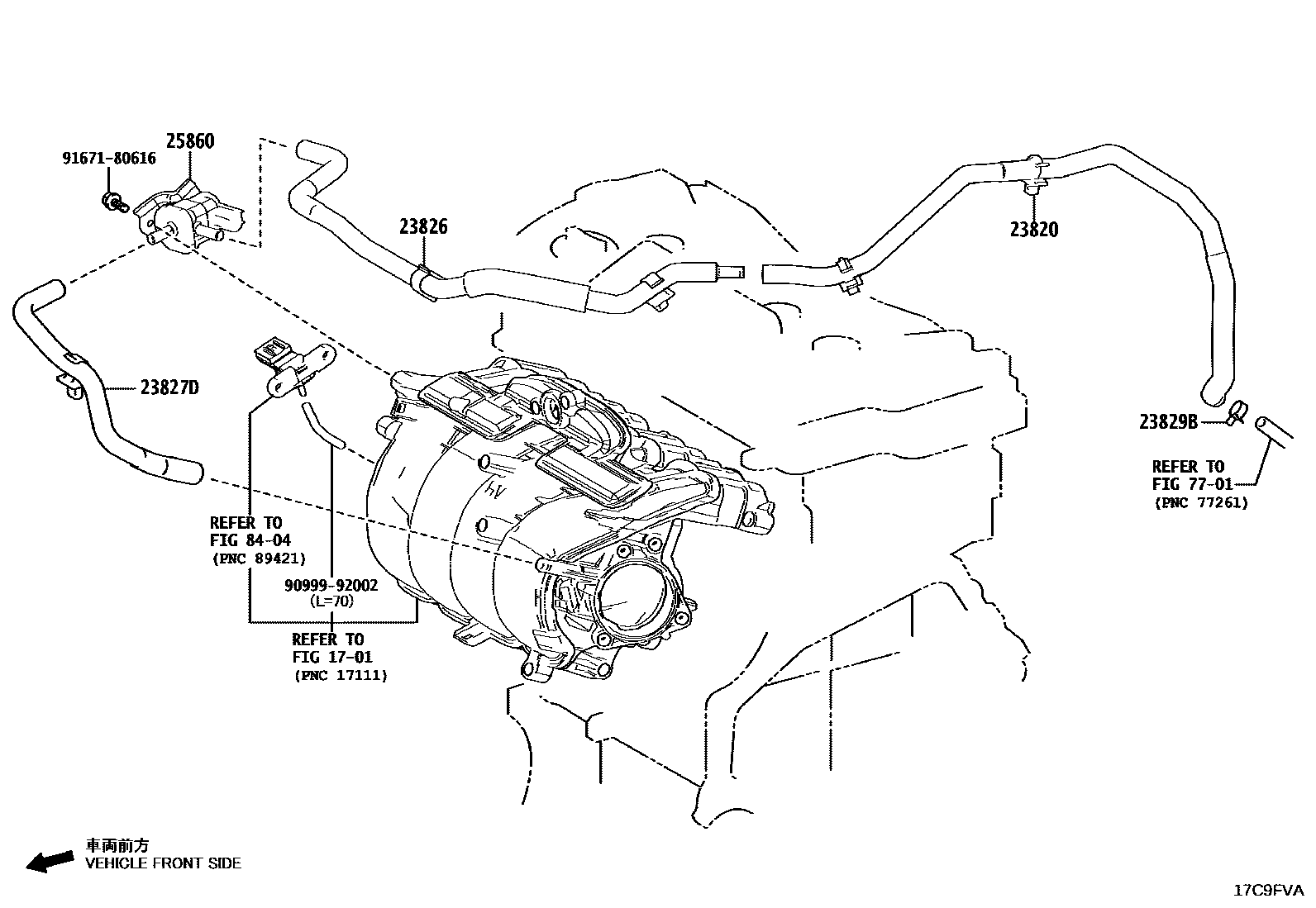

Toyota CROWN — VACUUM PIPING

1701

23820HOSE ASSY, FUEL VAPOR FEED

main23820-25210iA25..AZSH38202406

23826HOSE, FUEL VAPOR FEED, NO.1

main23820-25051iA25..AZSH38¥2,480202406

23827DHOSE, FUEL VAPOR FEED, NO.2

main23820-25130iA25..AZSH38¥1,590202406

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96136-41901iA25..AZSH38¥120202406

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-25020iA25..AZSH38¥3,480202406

7701

8404

9099992002

main90999-92002¥460

9167180616

main91671-80616¥60

10 parts on this diagram · 1 diagram in section
