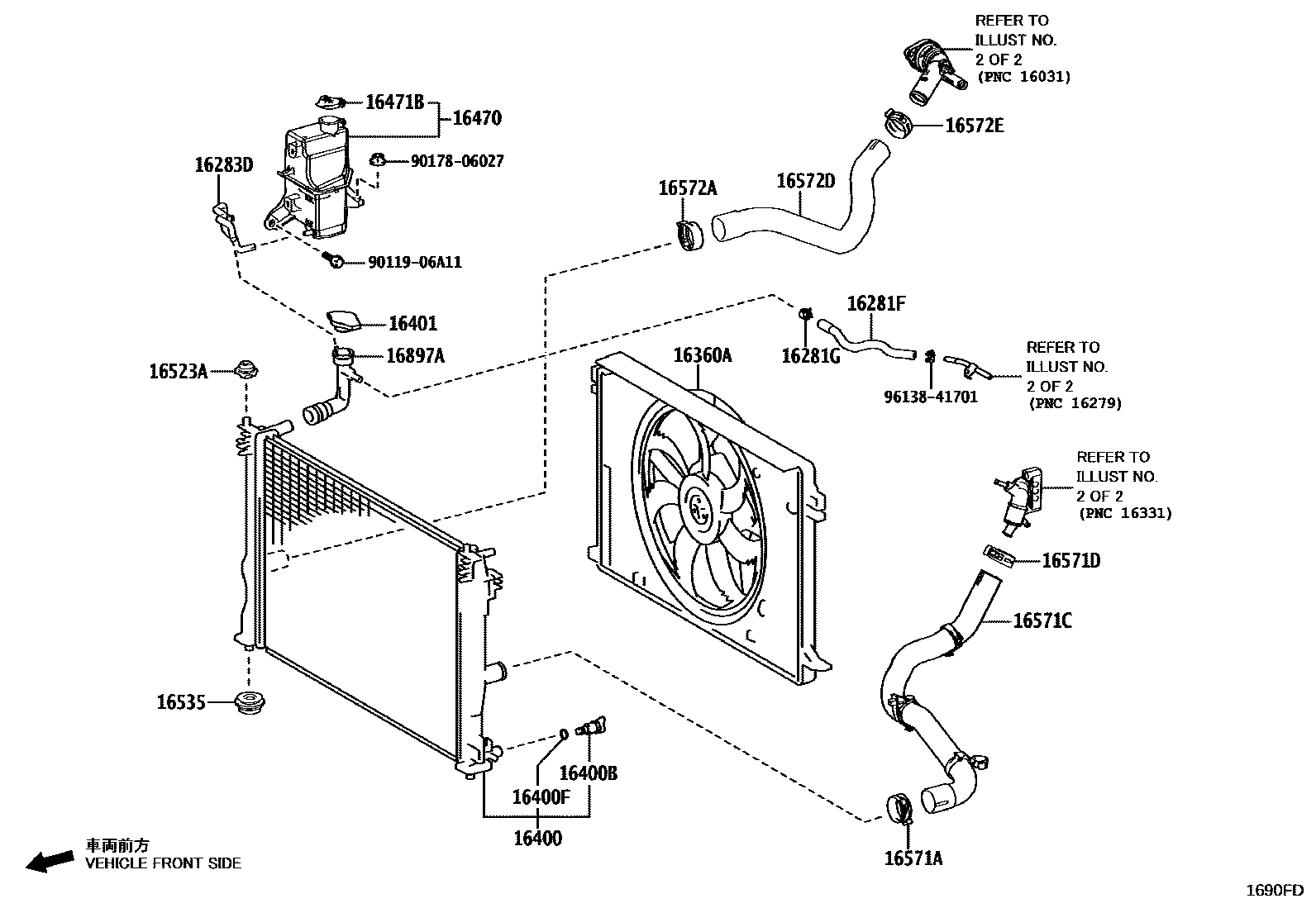

Toyota CROWN — RADIATOR & WATER OUTLET

0001 1RADIATOR SIDE 0002 1ENGINE SIDE

16281HOSE, WATER BY-PASS, NO.4

main99555-10200iA25..AZSH38¥320202406

16281FHOSE, WATER BY-PASS, NO.5

main16282-25210iA25..AZSH38¥350202406

16281GCLIP(FOR WATER BY-PASS HOSE NO.5)

main96138-41901iA25..AZSH38¥120202406

16283HOSE, WATER BY-PASS, NO.6

main16283-25020iA25..AZSH38¥350202406

16283DHOSE, WATER BY-PASS, NO.6

main16283-25150iA25..AZSH38¥350202406

16360AFAN ASSY, W/MOTOR

main16360-25030iA25..AZSH38¥49,000202406

16400RADIATOR ASSY

main16400-25170iA25..AZSH38¥36,400202406

16400BPLUG, RADIATOR DRAIN COCK

main16417-21280iA25..AZSH38¥360202406

16400FPACKING(FOR RADIATOR DRAIN COCK)

main16492-21050iA25..AZSH38¥210202406

16401CAP SUB-ASSY, RADIATOR

main16401-36030iA25..AZSH38¥900202406

16470TANK ASSY, RADIATOR RESERVE

main16470-25050iA25..AZSH38¥2,430202406

16471BCAP, RESERVE TANK

main16471-23010iA25..AZSH38202406

16523ACUSHION, RADIATOR SUPPORT

main16523-25010iA25..AZSH38¥640202406

16535SUPPORT, RADIATOR, LOWER

main16535-28030iA25..AZSH38¥660202406

16571ACLAMP OR CLIP, HOSE(FOR RADIATOR INLET)

main90466-39002iA25..AZSH38¥300202406

16571CHOSE, RADIATOR, NO.1

main16571-25260iA25..AZSH38¥1,620202406

16571DCLIP, RADIATOR HOSE, NO.1

main90466-43002iA25..AZSH38¥240202406

16572ACLAMP OR CLIP, HOSE(FOR RADIATOR OUTLET NO.1)

main90466-39002iA25..AZSH38¥300202406

16572DHOSE, RADIATOR, NO.2

main16572-25200iA25..AZSH38¥1,220202406

16572ECLIP, RADIATOR HOSE, NO.2

main90466-43002iA25..AZSH38¥240202406

16897ANECK, FILLER

main16897-25091iA25..AZSH38¥0202406

9011906A11

main90119-06A11¥60

9017806027

main90178-06027¥60

9613841701

main96138-41701¥120

24 parts on this diagram · 2 diagrams in section
