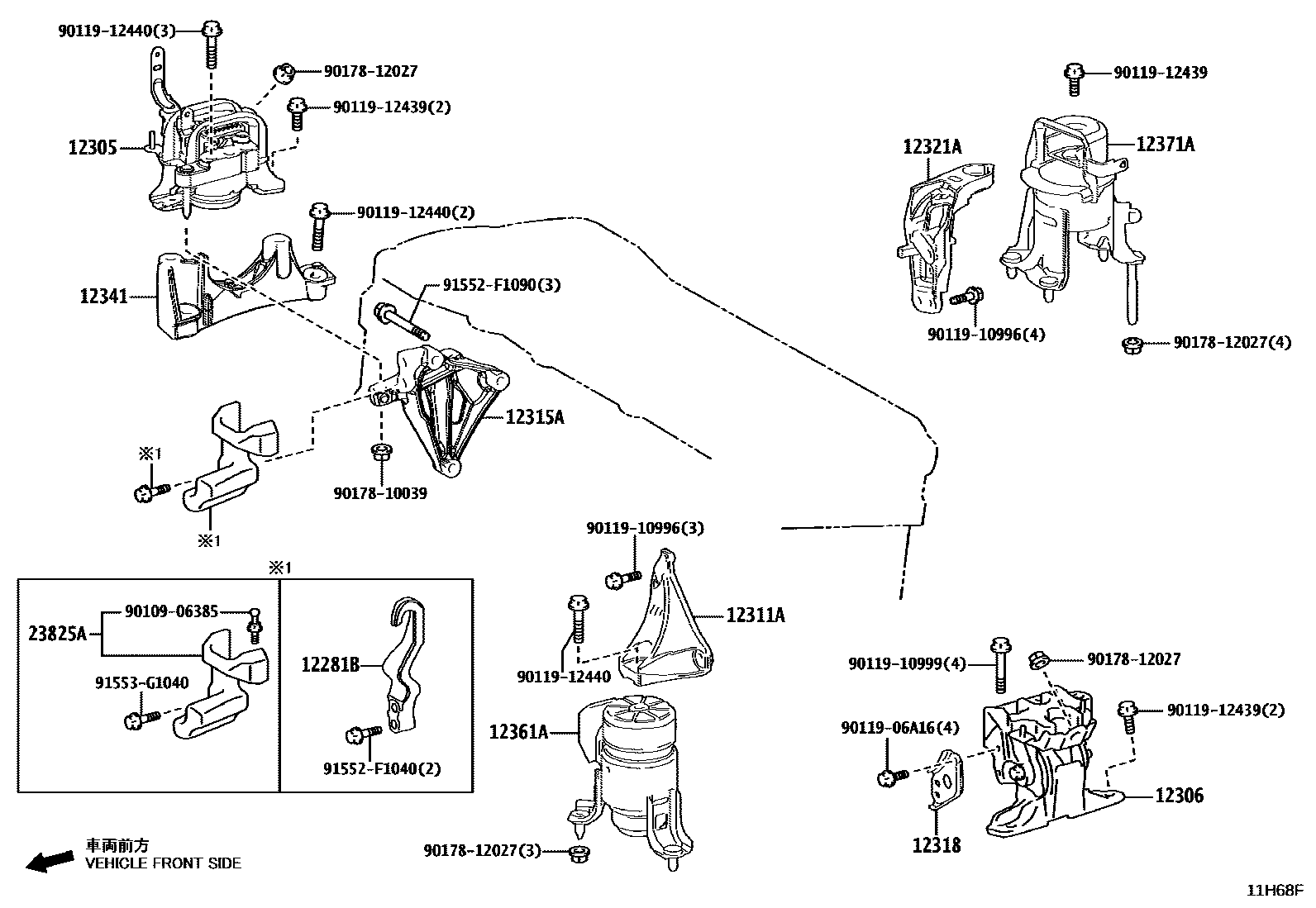

Toyota CROWN — MOUNTING

12281BHANGER, ENGINE, NO.1

main12281-25030iA25..AZSH38¥4,100202406

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-25110iA25..AZSH38202406

12306INSULATOR SUB-ASSY, ENGINE MOUNTING, LH

main12306-25120iA25..AZSH38202406

12311ABRACKET, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12311-25120iA25..AZSH38¥4,290202406

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-25031iA25..AZSH38¥3,720202406

12318STAY, ENGINE MOUNTING, LH

main12318-25040iA25..AZSH38¥740202406

12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)

main12321-25050iA25..AZSH38¥4,290202406

12341SPACER, ENGINE MOUNTING

main12341-25010iA25..AZSH38¥9,400202406

12361AINSULATOR, ENGINE MOUNTING, FRONT(FOR TRANSVERSE ENGINE)

main12361-25110iA25..AZSH38¥9,500202406

12371AINSULATOR, ENGINE MOUNTING, REAR

main12371-25180iA25..AZSH38¥13,600202406

23825AGUARD, FUEL DELIVERY

main23825-25030iA25..AZSH38¥3,640202406

9010906385

main90109-06385¥80

9011906A16

main90119-06A16¥60

9011910996

main90119-10996¥120

9011910999

main90119-10999¥190

9011912439

main90119-12439¥190

9011912440

main90119-12440¥240

9017810039

main90178-10039¥100

9017812027

main90178-12027¥100

91552F1040

main91552-F1040¥120

91552F1090

main91552-F1090¥190

91553G1040

main91553-G1040¥290

22 parts on this diagram · 1 diagram in section
