Toyota CROWN — MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
87915COVER, OUTER MIRROR, RH
BLACK,090 ,1L6 ,202 ,2TB ,2XW ,2XY ,2XZ ,2ZR ,3U5 ,3U9 ,4Y6 ,M22 ,M24 ,M26 ,M27
BLACK,090 ,1L6 ,202 ,3U9 ,4Y6
87915BCOVER, OUTER MIRROR, LOWER RH
8791BACOVER, OUTER MIRROR, RH NO.3
87931OUTER MIRROR, RH
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
87945COVER, OUTER MIRROR, LH
BLACK,090 ,1L6 ,202 ,2TB ,2XW ,2XY ,2XZ ,2ZR ,3U5 ,3U9 ,4Y6 ,M22 ,M24 ,M26 ,M27
BLACK,090 ,1L6 ,202 ,3U9 ,4Y6
87945CCOVER, OUTER MIRROR, LOWER LH
87946RETRACTOR, OUTER MIRROR, RH
87948ACOVER, OUTER MIRROR HOLE, LH
8794BACOVER, OUTER MIRROR, LH NO.3
87961MIRROR OUTER, LH
87966RETRACTOR, OUTER MIRROR, LH
8271126580WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8271152090WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
8791715010ESCUTCHEON
8791747690ESCUTCHEON
9017906274

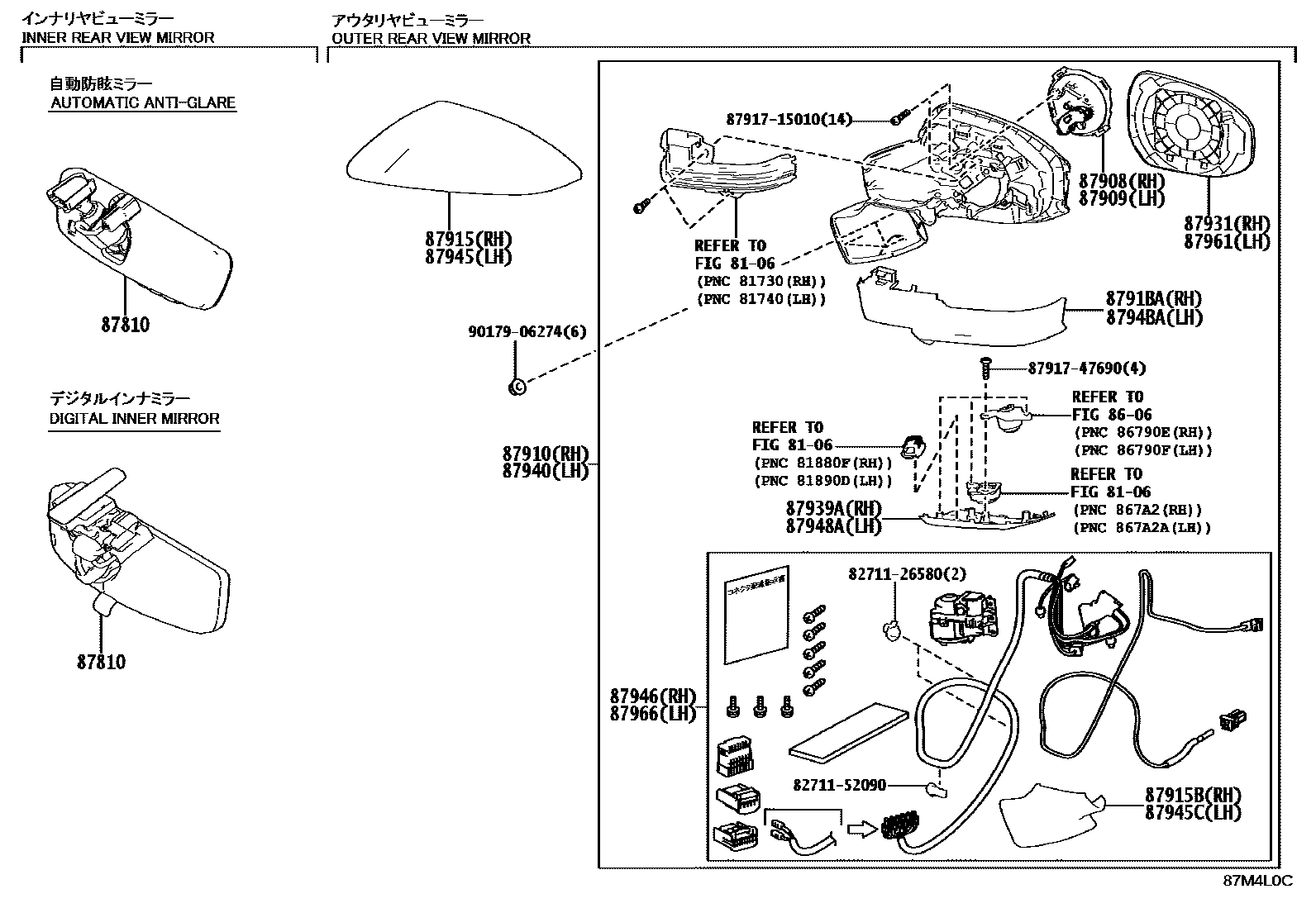

24 parts on this diagram · 1 diagram in section
