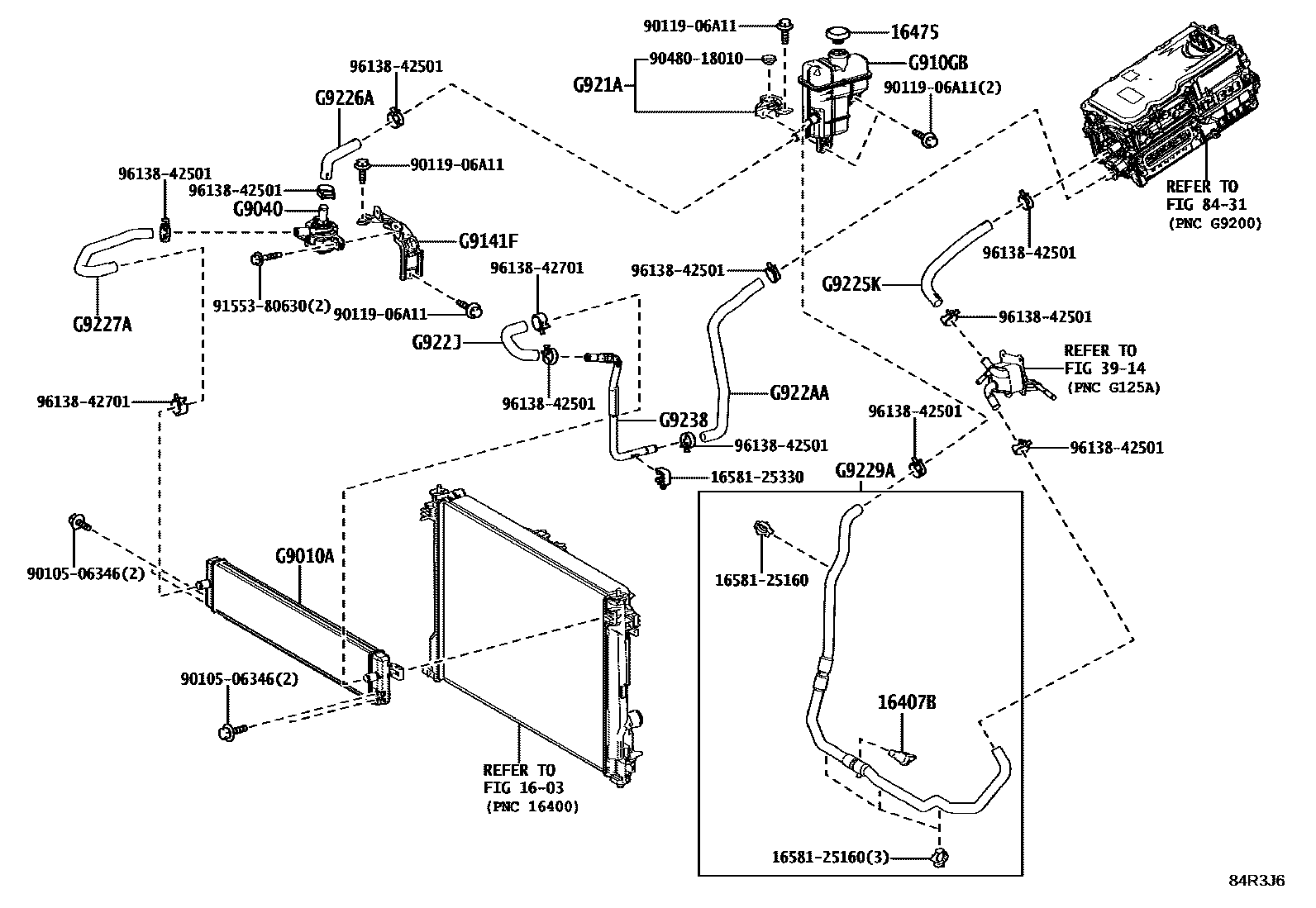

Toyota CROWN — INVERTER COOLING

1603

16407BCOCK SUB-ASSY, RADIATOR DRAIN

main16407-64010iA25..AZSH38¥380202406

16475CAP, RESERVE TANK

main16475-28140iA25..AZSH38¥1,200202406

3914

8431

G9010ARADIATOR ASSY

mainG901042030iAZSH38202406

G9040INVERTER WATER PUMP ASSY(W/MOTOR)

mainG904048050iAZSH38202406

G910GBTANK SUB-ASSY, INVERTER RESERVE W/O CAP

mainG910G42010iAZSH38202406

G9141FBRACKET, HV WATER PUMP

mainG914178010iAZSH38202406

G921ABRACKET, INVERTER RESERVE TANK, NO.1

mainG91H242010iAZSH38202406

G9225KHOSE, INVERTER COOLING, NO.1

mainG922542020iAZSH38202406

G9226AHOSE, INVERTER COOLING, NO.2

mainG922642020iAZSH38202406

G9227AHOSE, INVERTER COOLING, NO.3

mainG922730070iAZSH38202406

G9229AHOSE, INVERTER COOLING, NO.5

mainG922930090iAZSH38202406

G922AAHOSE, INVERTER COOLING INLET, NO.1

mainG922A30030iAZSH38202406

G922JHOSE, HYBRID RADIATOR OUTLET

mainG922J30040iAZSH38202406

G9238PIPE, INVERTER COOLING

mainG923830210iAZSH38202406

1658125160CLAMP, HOSE(FOR WATER HOSE)

main16581-25160¥300

1658125330CLAMP, HOSE(FOR WATER HOSE)

main16581-25330¥330

9010506346

main90105-06346

9011906A11

main90119-06A11¥60

9048018010

main90480-18010¥130

9155380630

main91553-80630¥60

9613842501

main96138-42501¥180

9613842701

main96138-42701¥200

25 parts on this diagram · 1 diagram in section
