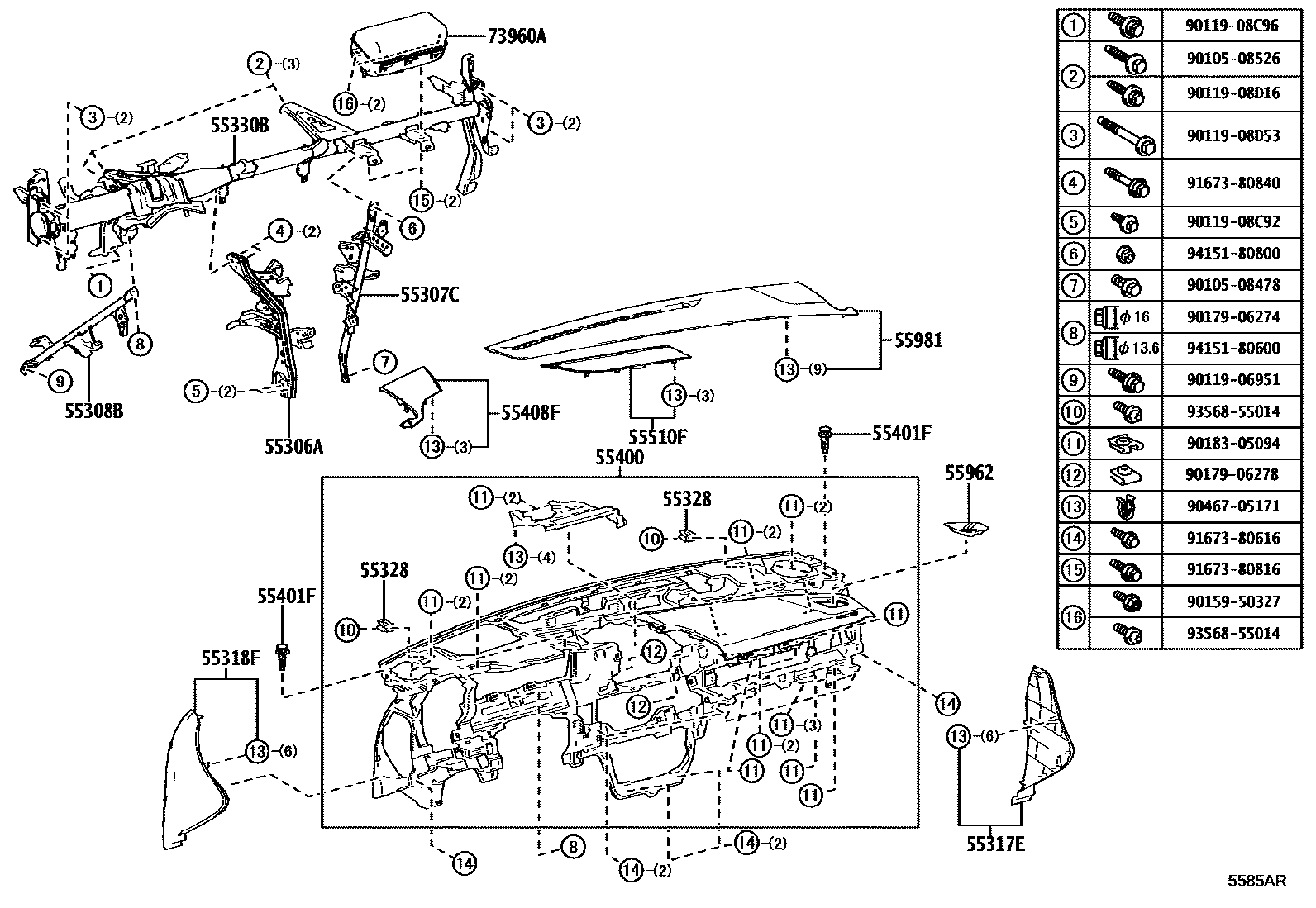

Toyota CROWN — INSTRUMENT PANEL & GLOVE COMPARTMENT
55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1
55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2
55308BBRACE SUB-ASSY, INSTRUMENT PANEL TO COWL, NO.3
55317EPANEL, INSTRUMENT SIDE, NO.1
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
55318FPANEL, INSTRUMENT SIDE, NO.2
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
55328PIN, INSTRUMENT PANEL, NO.1
55330BREINFORCEMENT ASSY, INSTRUMENT PANEL
55400PAD ASSY, INSTRUMENT PANEL SAFETY
SOFT BLACK,TRIM0#,2#,4#
SOFT BLACK,TRIM2#,4#
55401FCLIP(FOR SAFETY PAD)
55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1
55510FCOVER ASSY, SPEAKER OPENING, NO.1
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
55962NOZZLE, SIDE DEFROSTER, NO.2
BLACK,TRIM0#,2#,4#
BLACK,TRIM2#,4#
55981GARNISH, DEFROSTER NOZZLE, NO.1
73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR
9010508478
9010508526
9011906951
9011908C92
9011908C96
9011908D16
9011908D53
9015950327
9017906274
9017906278
9018305094
9046705171
9167380616
9167380816
9167380840
9356855014
9415180600
9415180800
32 parts on this diagram · 4 diagrams in section
